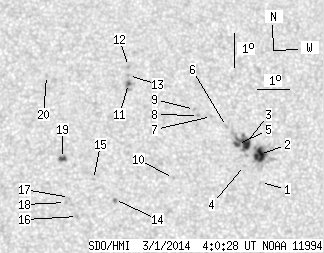

SDO HMI 2014-03-01 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.78 | 87.32 | 11.98 | 45.81 | -7.38 | 149.62 | 19.25 | 268.32 | 0.3288 | 387.5 | 297.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.59 | -8.42 | 151.02 | 20.66 | 265.28 | 0.3517 | -700.0 | -480.4 | |
| 10.61 | 61.53 | 5.61 | 32.47 | -7.59 | 150.95 | 20.58 | 267.66 | 0.3503 | 1058.6 | 487.4 | |
| 6.73 | -2.00 | 3.55 | -2.00 | -7.28 | 150.49 | 20.12 | 268.56 | 0.3428 | 1041.2 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -7.94 | 150.49 | 20.12 | 266.65 | 0.3428 | 642.0 | 459.7 | |
| 2.07 | -2.00 | 1.09 | -2.00 | -7.32 | 150.23 | 19.87 | 268.46 | 0.3387 | 1011.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -6.80 | 149.86 | 19.49 | 270.05 | 0.3328 | 806.0 | 612.1 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -6.52 | 149.38 | 19.01 | 270.97 | 0.3251 | 695.0 | 524.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -6.51 | 148.96 | 18.60 | 271.08 | 0.3183 | 957.0 | 773.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -6.34 | 148.83 | 18.46 | 271.66 | 0.3163 | 863.0 | 619.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -8.41 | 148.25 | 17.89 | 264.99 | 0.3064 | 757.0 | 632.5 | |
| 0.95 | 5.44 | 0.49 | 2.81 | -5.64 | 146.74 | 16.37 | 274.61 | 0.2827 | -1086.5 | -724.7 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -5.14 | 146.73 | 16.36 | 276.39 | 0.2836 | -905.0 | -680.1 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -5.40 | 146.74 | 16.37 | 275.45 | 0.2831 | -942.0 | -720.5 | |
| 0.35 | 1.64 | 0.18 | 0.84 | -9.10 | 146.43 | 16.06 | 262.19 | 0.2770 | 858.8 | 714.1 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -8.53 | 145.75 | 15.38 | 264.10 | 0.2649 | 604.0 | 450.5 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -9.64 | 145.30 | 14.93 | 259.67 | 0.2594 | 881.0 | 738.5 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -9.08 | 145.03 | 14.66 | 261.71 | 0.2537 | -446.0 | -448.5 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -9.24 | 144.91 | 14.54 | 261.05 | 0.2520 | -699.0 | -552.1 | |
| 2.07 | 3.45 | 1.06 | 1.76 | -7.93 | 144.77 | 14.40 | 266.23 | 0.2479 | -1005.8 | -805.5 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -5.48 | 144.20 | 13.84 | 276.43 | 0.2406 | -736.0 | -588.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
