SDO HMI 2014-03-01 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 52.84 | 0.00 | 28.04 | 9.51 | 120.67 | -9.15 | 23.53 | 0.3474 | -325.9 | -341.6 | |
|
previous
or next observation for the same group /

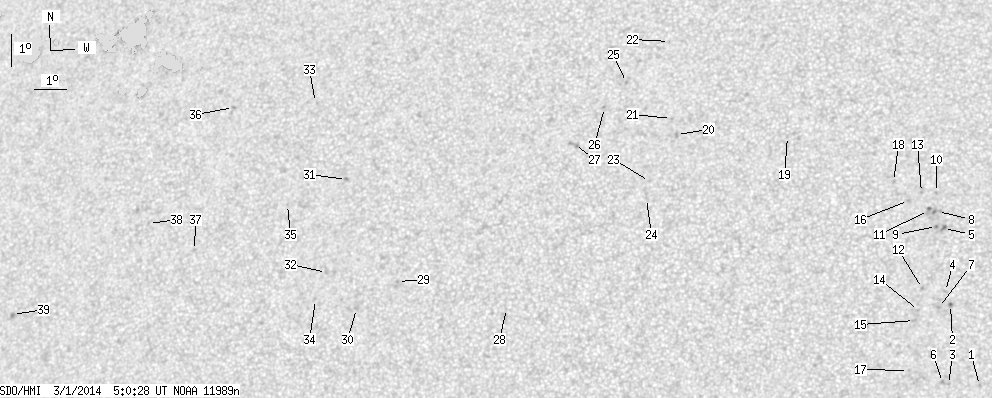

back to the solar disc SDO HMI 2014-03-01 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.61 | 4.54 | 129.57 | -0.25 | 1.21 | 0.2049 | -824.0 | -620.4 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 7.01 | 128.71 | -1.11 | 4.49 | 0.2478 | -1030.0 | -854.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 4.57 | 128.65 | -1.17 | 5.69 | 0.2064 | -803.0 | -687.6 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 7.41 | 128.56 | -1.26 | 4.95 | 0.2547 | -738.0 | -545.9 | |
| 0.00 | 2.33 | 0.00 | 1.20 | 9.35 | 128.49 | -1.33 | 4.58 | 0.2875 | -970.0 | -824.4 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 4.63 | 128.47 | -1.35 | 6.52 | 0.2077 | -909.0 | -726.7 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 6.92 | 128.35 | -1.47 | 5.96 | 0.2468 | -919.0 | -726.8 | |
| 0.00 | 3.37 | 0.00 | 1.75 | 9.88 | 128.31 | -1.51 | 5.05 | 0.2966 | -665.0 | -765.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 9.42 | 128.28 | -1.54 | 5.29 | 0.2889 | -1000.0 | -838.0 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 10.47 | 128.28 | -1.54 | 4.98 | 0.3065 | -715.0 | -605.3 | |
| 0.00 | 2.68 | 0.00 | 1.39 | 9.91 | 128.04 | -1.78 | 5.94 | 0.2976 | -838.0 | -729.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 7.50 | 127.87 | -1.95 | 7.57 | 0.2576 | -786.0 | -650.5 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 10.48 | 127.83 | -2.00 | 6.43 | 0.3073 | -824.0 | -663.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 6.83 | 127.75 | -2.07 | 8.41 | 0.2466 | -908.0 | -766.0 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 6.53 | 127.63 | -2.19 | 9.08 | 0.2417 | -780.0 | -642.1 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 10.23 | 127.43 | -2.39 | 7.79 | 0.3040 | -768.0 | -616.4 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 5.00 | 127.46 | -2.36 | 10.99 | 0.2166 | -767.0 | -599.9 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 10.82 | 126.98 | -2.85 | 8.95 | 0.3149 | -716.0 | -599.8 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 12.27 | 123.73 | -6.09 | 17.29 | 0.3504 | -1.0 | -2.2 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 12.40 | 120.32 | -9.50 | 25.75 | 0.3727 | -858.0 | -675.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.91 | 120.15 | -9.68 | 25.56 | 0.3814 | -638.0 | -513.8 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 15.37 | 119.98 | -9.84 | 23.31 | 0.4183 | -740.0 | -547.8 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 10.95 | 119.54 | -10.28 | 29.49 | 0.3576 | -706.0 | -537.2 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 10.42 | 119.46 | -10.36 | 30.43 | 0.3507 | 2.0 | -7.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 14.09 | 118.70 | -11.13 | 27.39 | 0.4086 | -823.0 | -676.7 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 13.32 | 118.05 | -11.77 | 29.69 | 0.4027 | -739.0 | -650.9 | |
| 0.00 | 3.80 | 0.00 | 2.05 | 12.17 | 117.17 | -12.65 | 33.05 | 0.3944 | -708.0 | -756.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 7.14 | 115.26 | -14.56 | 45.62 | 0.3506 | 0.0 | -5.0 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 8.10 | 111.82 | -18.00 | 49.84 | 0.4021 | 846.0 | 725.9 | |
| 0.00 | 1.55 | 0.00 | 0.84 | 7.33 | 110.55 | -19.27 | 53.27 | 0.4101 | 846.0 | 657.8 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 11.35 | 110.00 | -19.82 | 46.89 | 0.4572 | 735.0 | 652.6 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 8.48 | 109.54 | -20.28 | 52.51 | 0.4339 | 412.0 | 390.5 | |
| 0.00 | 0.35 | 0.00 | 0.20 | 13.83 | 108.79 | -21.03 | 44.78 | 0.4967 | 548.0 | 625.0 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 7.66 | 109.23 | -20.59 | 54.46 | 0.4301 | 463.0 | 318.0 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 10.65 | 108.14 | -21.68 | 50.59 | 0.4718 | 765.0 | 653.5 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 13.81 | 106.08 | -23.75 | 48.28 | 0.5260 | 796.0 | 703.8 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 9.38 | 105.18 | -24.64 | 56.28 | 0.4965 | 646.0 | 592.7 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 10.31 | 103.57 | -26.25 | 56.45 | 0.5242 | 713.0 | 585.2 | |
| 0.00 | 1.81 | 0.00 | 1.08 | 7.78 | 99.12 | -30.70 | 64.48 | 0.5627 | 689.0 | 580.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
