SDO HMI 2014-03-01 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 139.90 | 663.53 | 74.85 | 355.03 | -14.07 | 108.94 | -20.88 | 110.89 | 0.3743 | 129.8 | 79.7 | |
|
previous
or next observation for the same group /

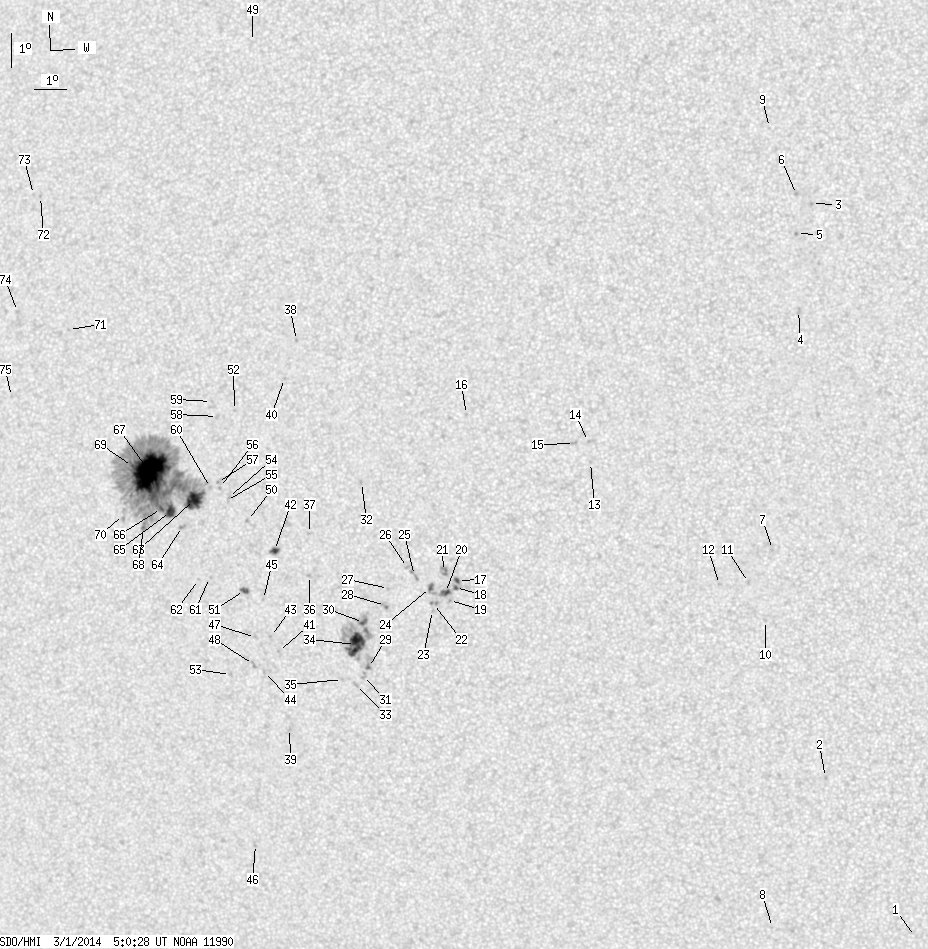

back to the solar disc SDO HMI 2014-03-01 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.73 | -27.60 | 130.74 | 0.92 | 182.33 | 0.3501 | 9.0 | 10.1 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -22.63 | 127.81 | -2.01 | 173.06 | 0.2689 | 867.0 | 759.7 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -5.40 | 127.56 | -2.26 | 50.96 | 0.0508 | 989.0 | 794.8 | |
| 0.00 | 3.11 | 0.00 | 1.54 | -8.57 | 127.15 | -2.67 | 117.15 | 0.0520 | 664.0 | 663.8 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -6.28 | 127.11 | -2.71 | 70.90 | 0.0500 | 1050.0 | 901.9 | |
| 0.00 | 1.73 | 0.00 | 0.86 | -5.13 | 127.12 | -2.71 | 52.17 | 0.0598 | 913.0 | 759.7 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -15.69 | 126.27 | -3.55 | 157.97 | 0.1598 | 766.0 | 617.9 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -27.30 | 125.95 | -3.87 | 170.10 | 0.3502 | 6.0 | 28.5 | |
| 0.00 | 0.26 | 0.00 | 0.13 | -3.13 | 126.32 | -3.50 | 40.56 | 0.0942 | 654.0 | 487.7 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -17.83 | 126.01 | -3.82 | 161.02 | 0.1958 | 769.0 | 595.1 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -16.68 | 125.50 | -4.32 | 156.33 | 0.1805 | 798.0 | 635.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -16.73 | 124.60 | -5.22 | 152.23 | 0.1880 | 893.0 | 660.4 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -13.01 | 120.73 | -9.09 | 123.59 | 0.1857 | 756.0 | 581.0 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -12.38 | 120.69 | -9.13 | 120.52 | 0.1808 | 854.0 | 708.6 | |
| 0.00 | 2.33 | 0.00 | 1.17 | -12.43 | 120.26 | -9.56 | 119.66 | 0.1876 | 837.0 | 696.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -11.48 | 116.96 | -12.87 | 109.51 | 0.2326 | -912.0 | -637.6 | |
| 1.38 | 7.25 | 0.71 | 3.74 | -16.44 | 116.38 | -13.44 | 126.23 | 0.2777 | 1152.8 | 566.5 | |
| 1.12 | -17.00 | 0.58 | -17.00 | -16.64 | 116.30 | -13.52 | 126.70 | 0.2807 | 1011.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -17.03 | 116.08 | -13.74 | 127.41 | 0.2873 | 894.0 | 769.8 | |
| 3.02 | 6.04 | 1.56 | 3.12 | -16.79 | 115.97 | -13.85 | 126.49 | 0.2864 | 1040.6 | 818.5 | |
| 0.00 | 6.13 | 0.00 | 3.16 | -16.15 | 115.95 | -13.87 | 124.57 | 0.2809 | 824.0 | 903.8 | |
| 0.00 | 2.93 | 0.00 | 1.52 | -17.10 | 115.56 | -14.26 | 126.66 | 0.2948 | 613.0 | 692.4 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -17.31 | 115.51 | -14.31 | 127.17 | 0.2975 | 527.0 | 437.5 | |
| 1.73 | 6.04 | 0.89 | 3.13 | -16.62 | 115.50 | -14.32 | 125.17 | 0.2912 | 902.3 | 727.1 | |
| 0.00 | 3.88 | 0.00 | 2.01 | -16.24 | 115.02 | -14.80 | 123.24 | 0.2946 | 639.0 | 526.3 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -16.00 | 114.81 | -15.01 | 122.17 | 0.2954 | 735.0 | 576.8 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -16.61 | 114.16 | -15.67 | 122.91 | 0.3096 | -795.0 | -641.3 | |
| 0.00 | 3.54 | 0.00 | 1.85 | -17.11 | 114.01 | -15.81 | 124.10 | 0.3158 | -997.0 | -834.0 | |
| 0.69 | 8.03 | 0.36 | 4.22 | -18.97 | 113.28 | -16.54 | 127.75 | 0.3420 | -1086.8 | -817.4 | |
| 2.16 | 7.77 | 1.13 | 4.07 | -17.60 | 113.26 | -16.57 | 124.26 | 0.3303 | -1152.3 | -692.5 | |
| 0.00 | 2.76 | 0.00 | 1.46 | -19.20 | 113.09 | -16.73 | 128.03 | 0.3466 | -530.0 | -702.7 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -13.40 | 113.54 | -16.28 | 112.42 | 0.2963 | -719.0 | -558.1 | |
| 0.00 | 2.68 | 0.00 | 1.42 | -19.47 | 112.84 | -16.99 | 128.26 | 0.3523 | -780.0 | -636.6 | |
| 22.70 | 57.13 | 11.95 | 30.07 | -18.26 | 112.93 | -16.89 | 125.45 | 0.3402 | -1136.7 | -494.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -19.30 | 112.39 | -17.43 | 127.21 | 0.3565 | -766.0 | -560.0 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -16.12 | 111.64 | -18.18 | 118.20 | 0.3416 | -840.0 | -611.5 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -14.86 | 111.76 | -18.06 | 114.87 | 0.3318 | -864.0 | -700.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -9.10 | 111.75 | -18.07 | 97.23 | 0.3101 | 808.0 | 667.6 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -20.72 | 110.45 | -19.37 | 127.73 | 0.3939 | -830.0 | -767.8 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -10.21 | 111.30 | -18.52 | 100.61 | 0.3194 | 797.0 | 635.9 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -18.37 | 110.38 | -19.44 | 122.35 | 0.3755 | -889.0 | -705.7 | |
| 3.11 | 5.09 | 1.64 | 2.69 | -15.33 | 110.58 | -19.24 | 114.92 | 0.3521 | -1086.6 | -848.8 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -17.91 | 110.17 | -19.65 | 121.00 | 0.3750 | -932.0 | -765.8 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -18.95 | 109.84 | -19.98 | 123.07 | 0.3873 | -772.0 | -590.8 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -16.78 | 110.07 | -19.76 | 118.14 | 0.3686 | -697.0 | -560.1 | |
| 0.00 | 2.24 | 0.00 | 1.24 | -24.23 | 108.74 | -21.08 | 132.47 | 0.4465 | -437.0 | -463.5 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -17.92 | 109.67 | -20.15 | 120.46 | 0.3820 | -686.0 | -539.1 | |
| 0.00 | 2.76 | 0.00 | 1.48 | -18.73 | 109.50 | -20.32 | 122.16 | 0.3902 | -771.0 | -589.3 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -0.15 | 110.62 | -19.21 | 70.55 | 0.3504 | -37.0 | -18.2 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -14.39 | 109.79 | -20.04 | 111.71 | 0.3588 | 823.0 | 597.9 | |
| 2.50 | 4.32 | 1.34 | 2.30 | -16.49 | 109.47 | -20.35 | 116.80 | 0.3752 | -1037.4 | -786.0 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -11.10 | 109.64 | -20.18 | 102.51 | 0.3483 | 726.0 | 543.2 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -19.00 | 108.70 | -21.13 | 121.88 | 0.4031 | 914.0 | 672.7 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -13.68 | 109.23 | -20.59 | 109.38 | 0.3638 | -897.0 | -734.2 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -13.77 | 109.16 | -20.66 | 109.56 | 0.3653 | -581.0 | -658.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -13.37 | 108.97 | -20.85 | 108.37 | 0.3666 | -911.0 | -784.2 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -13.22 | 108.92 | -20.91 | 107.93 | 0.3667 | -1027.0 | -882.1 | |
| 0.00 | 2.33 | 0.00 | 1.24 | -11.25 | 109.08 | -20.74 | 102.69 | 0.3576 | 693.0 | 540.9 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -10.80 | 108.92 | -20.90 | 101.36 | 0.3590 | 756.0 | 636.4 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -13.36 | 108.67 | -21.15 | 108.14 | 0.3710 | -748.0 | -586.5 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -16.04 | 108.36 | -21.46 | 114.69 | 0.3887 | -853.0 | -807.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -16.09 | 107.99 | -21.83 | 114.48 | 0.3943 | -819.0 | -661.7 | |
| 20.97 | 467.16 | 11.23 | 252.01 | -13.69 | 108.12 | -21.71 | 108.64 | 0.3809 | -1199.3 | 164.0 | |
| 0.00 | 3.02 | 0.00 | 1.62 | -14.48 | 107.64 | -22.18 | 110.30 | 0.3915 | -760.0 | -728.2 | |
| 7.94 | -63.00 | 4.28 | -63.00 | -14.01 | 107.29 | -22.53 | 108.92 | 0.3947 | -1066.8 | 999999 | |
| 1.98 | -63.00 | 1.07 | -63.00 | -13.91 | 107.00 | -22.82 | 108.49 | 0.3987 | -530.0 | 999999 | |
| 69.30 | -63.00 | 37.41 | -63.00 | -12.78 | 106.72 | -23.10 | 105.58 | 0.3990 | 1438.1 | 999999 | |
| 0.52 | -63.00 | 0.28 | -63.00 | -14.44 | 106.34 | -23.48 | 109.38 | 0.4107 | -500.0 | 999999 | |
| 0.78 | -63.00 | 0.42 | -63.00 | -12.61 | 106.17 | -23.65 | 104.89 | 0.4068 | 896.4 | 999999 | |
| 0.00 | 4.57 | 0.00 | 2.49 | -14.02 | 105.72 | -24.10 | 108.03 | 0.4184 | 566.0 | 462.1 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -8.43 | 104.40 | -25.42 | 94.45 | 0.4277 | -618.0 | -514.6 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -4.43 | 103.70 | -26.13 | 85.32 | 0.4424 | -757.0 | -657.4 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -4.36 | 103.47 | -26.36 | 85.22 | 0.4461 | -681.0 | -539.0 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -7.80 | 102.74 | -27.08 | 93.00 | 0.4536 | -804.0 | -679.5 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -10.31 | 102.33 | -27.49 | 98.48 | 0.4612 | -663.0 | -545.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
