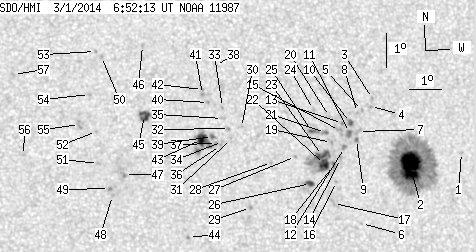

SDO HMI 2014-03-01 06:52:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.93 | 368.03 | 36.69 | 199.18 | -1.36 | 151.65 | 22.85 | 283.69 | 0.4008 | -351.1 | -277.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 06:52:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.72 | -1.09 | 155.34 | 26.54 | 281.83 | 0.4583 | 712.0 | 554.0 | |
| 36.17 | 207.16 | 19.83 | 113.66 | -1.57 | 153.66 | 24.86 | 281.67 | 0.4309 | -1414.3 | -388.7 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 0.37 | 152.42 | 23.61 | 286.88 | 0.4204 | -904.0 | -726.6 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 0.13 | 152.35 | 23.55 | 286.38 | 0.4182 | -818.0 | -703.3 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -0.01 | 152.09 | 23.29 | 286.27 | 0.4136 | -858.0 | -687.7 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -3.38 | 152.10 | 23.29 | 278.18 | 0.4005 | -688.0 | -514.2 | |
| 0.00 | 2.42 | 0.00 | 1.31 | -0.64 | 151.96 | 23.16 | 284.88 | 0.4086 | -681.0 | -620.2 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -0.07 | 151.93 | 23.12 | 286.23 | 0.4108 | -781.0 | -644.7 | |
| 0.43 | 1.55 | 0.23 | 0.84 | -0.88 | 151.90 | 23.09 | 284.35 | 0.4066 | -874.2 | -773.0 | |
| 1.29 | 4.49 | 0.70 | 2.43 | -0.38 | 151.70 | 22.90 | 285.67 | 0.4058 | -927.5 | -758.1 | |
| 0.60 | 3.63 | 0.33 | 1.96 | -0.69 | 151.67 | 22.87 | 284.98 | 0.4040 | -1069.6 | -916.0 | |
| 0.00 | 2.76 | 0.00 | 1.49 | -1.14 | 151.51 | 22.71 | 283.99 | 0.3995 | -890.0 | -719.0 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -0.43 | 151.44 | 22.64 | 285.76 | 0.4017 | -972.0 | -774.7 | |
| 0.00 | 2.07 | 0.00 | 1.12 | -1.48 | 151.39 | 22.58 | 283.26 | 0.3961 | -618.0 | -547.2 | |
| 0.00 | 4.57 | 0.00 | 2.47 | -0.64 | 151.35 | 22.54 | 285.32 | 0.3992 | -815.0 | -727.2 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -2.17 | 151.27 | 22.46 | 281.63 | 0.3915 | -798.0 | -622.5 | |
| 0.00 | 3.88 | 0.00 | 2.09 | -2.83 | 151.18 | 22.37 | 280.02 | 0.3878 | -691.0 | -648.1 | |
| 0.00 | 2.93 | 0.00 | 1.58 | -1.70 | 151.16 | 22.36 | 282.87 | 0.3917 | -697.0 | -644.4 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -1.01 | 151.09 | 22.29 | 284.60 | 0.3936 | -952.0 | -874.7 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -0.24 | 151.03 | 22.22 | 286.53 | 0.3962 | -895.0 | -736.9 | |
| 0.00 | 2.76 | 0.00 | 1.49 | -0.72 | 150.90 | 22.09 | 285.45 | 0.3919 | -970.0 | -831.6 | |
| 7.77 | 37.20 | 4.17 | 19.95 | -1.68 | 150.87 | 22.07 | 283.10 | 0.3873 | -1249.3 | -609.8 | |
| 4.92 | -22.00 | 2.64 | -22.00 | -1.41 | 150.81 | 22.00 | 283.81 | 0.3873 | -1052.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -0.05 | 150.51 | 21.71 | 287.40 | 0.3893 | -726.0 | -519.5 | |
| 1.04 | 4.75 | 0.56 | 2.55 | -0.68 | 150.45 | 21.65 | 285.89 | 0.3852 | -1057.5 | -836.8 | |
| 2.50 | 5.01 | 1.34 | 2.68 | -2.27 | 150.43 | 21.63 | 281.89 | 0.3780 | -1055.7 | -812.4 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -1.48 | 149.94 | 21.14 | 284.25 | 0.3736 | -843.0 | -632.1 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -1.70 | 149.18 | 20.38 | 284.26 | 0.3607 | -912.0 | -678.2 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -3.06 | 148.54 | 19.73 | 280.93 | 0.3449 | -884.0 | -772.0 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -0.69 | 148.23 | 19.42 | 287.77 | 0.3507 | 378.0 | 267.8 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -1.03 | 147.91 | 19.11 | 287.13 | 0.3440 | 724.0 | 554.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -0.73 | 147.85 | 19.05 | 288.01 | 0.3446 | 795.0 | 698.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -0.12 | 147.63 | 18.83 | 289.93 | 0.3448 | 720.0 | 577.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -1.13 | 147.63 | 18.83 | 287.11 | 0.3391 | 565.0 | 420.5 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -0.44 | 147.63 | 18.83 | 289.03 | 0.3428 | 745.0 | 597.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -1.25 | 147.57 | 18.77 | 286.83 | 0.3375 | 483.0 | 477.8 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -1.20 | 147.44 | 18.64 | 287.10 | 0.3358 | 798.0 | 650.6 | |
| 0.00 | 2.50 | 0.00 | 1.32 | 1.14 | 147.42 | 18.61 | 293.50 | 0.3495 | -18.0 | -1.8 | |
| 0.69 | 2.50 | 0.36 | 1.32 | -1.00 | 147.32 | 18.51 | 287.80 | 0.3349 | 836.5 | 652.0 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 0.02 | 147.19 | 18.39 | 290.76 | 0.3388 | 846.0 | 761.0 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 0.25 | 147.00 | 18.20 | 291.61 | 0.3374 | 1032.0 | 839.1 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 0.40 | 147.00 | 18.20 | 292.02 | 0.3384 | 908.0 | 693.3 | |
| 6.65 | 20.54 | 3.48 | 10.77 | -1.10 | 146.97 | 18.17 | 287.85 | 0.3290 | 1136.2 | 730.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -4.03 | 146.61 | 17.80 | 279.24 | 0.3104 | 806.0 | 719.6 | |
| 5.87 | 9.24 | 3.05 | 4.80 | -0.45 | 145.20 | 16.39 | 291.80 | 0.3053 | 1044.2 | 833.4 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 1.65 | 145.15 | 16.34 | 297.94 | 0.3198 | 875.0 | 661.4 | |
| 0.00 | 2.93 | 0.00 | 1.52 | -2.23 | 144.59 | 15.78 | 286.85 | 0.2853 | 965.0 | 780.0 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -2.87 | 144.23 | 15.42 | 285.05 | 0.2763 | 653.0 | 595.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -2.66 | 144.13 | 15.33 | 285.87 | 0.2757 | 992.0 | 867.2 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 1.28 | 143.88 | 15.07 | 298.90 | 0.2983 | 846.0 | 739.1 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -1.93 | 143.78 | 14.98 | 288.82 | 0.2742 | 764.0 | 605.7 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -0.97 | 143.72 | 14.91 | 292.12 | 0.2790 | 819.0 | 717.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 1.42 | 143.69 | 14.89 | 299.63 | 0.2968 | 656.0 | 562.1 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 0.13 | 143.50 | 14.70 | 296.01 | 0.2836 | 872.0 | 653.3 | |
| 0.00 | 3.45 | 0.00 | 1.78 | -0.78 | 143.20 | 14.39 | 293.54 | 0.2723 | 834.0 | 802.5 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -1.75 | 141.49 | 12.68 | 292.79 | 0.2391 | 524.0 | 408.1 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 0.66 | 141.18 | 12.38 | 302.05 | 0.2540 | 922.0 | 699.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
