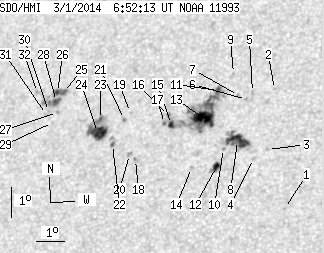

SDO HMI 2014-03-01 06:52:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.39 | 213.14 | 42.47 | 130.68 | 16.11 | 101.10 | -27.71 | 49.35 | 0.5900 | -64.0 | 28.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 06:52:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.60 | 13.13 | 105.53 | -23.28 | 48.72 | 0.5142 | 657.0 | 450.9 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 16.99 | 104.74 | -24.07 | 44.31 | 0.5606 | -621.0 | -470.2 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 15.05 | 104.75 | -24.06 | 46.89 | 0.5413 | -702.0 | -598.4 | |
| 0.00 | 1.47 | 0.00 | 0.86 | 14.79 | 104.31 | -24.50 | 47.78 | 0.5435 | -783.0 | -551.0 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 16.93 | 103.99 | -24.81 | 45.24 | 0.5675 | -798.0 | -676.9 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 16.71 | 103.82 | -24.99 | 45.73 | 0.5672 | -823.0 | -719.7 | |
| 0.00 | 1.38 | 0.00 | 0.83 | 16.86 | 103.52 | -25.28 | 45.87 | 0.5717 | -589.0 | -519.2 | |
| 14.24 | 29.35 | 8.47 | 17.46 | 15.40 | 103.69 | -25.12 | 47.64 | 0.5560 | -903.8 | -611.5 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 17.59 | 103.24 | -25.56 | 45.23 | 0.5815 | -625.0 | -520.0 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 15.17 | 103.24 | -25.57 | 48.46 | 0.5587 | -688.0 | -581.7 | |
| 2.16 | 94.26 | 1.31 | 57.23 | 17.07 | 102.80 | -26.00 | 46.40 | 0.5810 | -717.0 | -91.3 | |
| 3.88 | 6.82 | 2.31 | 4.05 | 14.60 | 103.07 | -25.73 | 49.43 | 0.5553 | -844.0 | -601.9 | |
| 20.80 | -11.00 | 12.59 | -11.00 | 16.18 | 102.41 | -26.39 | 47.98 | 0.5768 | -820.3 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 14.62 | 102.21 | -26.59 | 50.33 | 0.5649 | -236.0 | -220.2 | |
| 3.11 | -11.00 | 1.90 | -11.00 | 16.06 | 101.32 | -27.48 | 49.30 | 0.5873 | 918.0 | 999999 | |
| 0.43 | -11.00 | 0.26 | -11.00 | 16.36 | 101.17 | -27.64 | 49.05 | 0.5915 | -490.6 | 999999 | |
| 0.52 | -11.00 | 0.32 | -11.00 | 16.10 | 101.07 | -27.74 | 49.49 | 0.5904 | 706.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.74 | 15.00 | 100.22 | -28.59 | 51.82 | 0.5902 | 718.0 | 646.6 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 16.54 | 99.80 | -29.00 | 50.16 | 0.6076 | 738.0 | 605.0 | |
| 0.00 | 2.24 | 0.00 | 1.38 | 15.18 | 99.98 | -28.83 | 51.81 | 0.5943 | 772.0 | 715.7 | |
| 0.00 | 1.29 | 0.00 | 0.81 | 16.33 | 99.62 | -29.18 | 50.61 | 0.6077 | 994.0 | 832.3 | |
| 0.60 | 4.06 | 0.37 | 2.52 | 15.54 | 99.32 | -29.48 | 51.94 | 0.6045 | 827.6 | 663.0 | |
| 1.04 | 32.97 | 0.65 | 20.68 | 16.38 | 98.76 | -30.05 | 51.35 | 0.6174 | -299.7 | 310.1 | |
| 15.88 | -23.00 | 9.95 | -23.00 | 15.97 | 98.72 | -30.09 | 51.93 | 0.6145 | 852.3 | 999999 | |
| 1.55 | 21.84 | 1.00 | 14.09 | 17.36 | 97.24 | -31.57 | 51.44 | 0.6413 | 876.6 | 666.3 | |
| 1.81 | -25.00 | 1.17 | -25.00 | 17.38 | 97.02 | -31.79 | 51.61 | 0.6437 | 772.5 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.72 | 16.72 | 97.14 | -31.66 | 52.35 | 0.6373 | 808.0 | 740.6 | |
| 3.37 | -25.00 | 2.17 | -25.00 | 17.09 | 97.04 | -31.77 | 51.97 | 0.6412 | 982.3 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 16.41 | 97.02 | -31.79 | 52.86 | 0.6362 | 718.0 | 593.1 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 16.78 | 96.80 | -32.00 | 52.56 | 0.6413 | 679.0 | 528.5 | |
| 0.00 | 1.90 | 0.00 | 1.22 | 16.69 | 96.75 | -32.06 | 52.73 | 0.6412 | 606.0 | 519.4 | |
| 0.00 | 1.73 | 0.00 | 1.12 | 17.43 | 96.27 | -32.54 | 52.18 | 0.6519 | 531.0 | 422.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
