SDO HMI 2014-03-01 08:18:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.81 | 723.79 | 75.01 | 382.44 | -14.22 | 109.38 | -18.64 | 113.83 | 0.3429 | 174.9 | 79.1 | |
|
previous
or next observation for the same group /

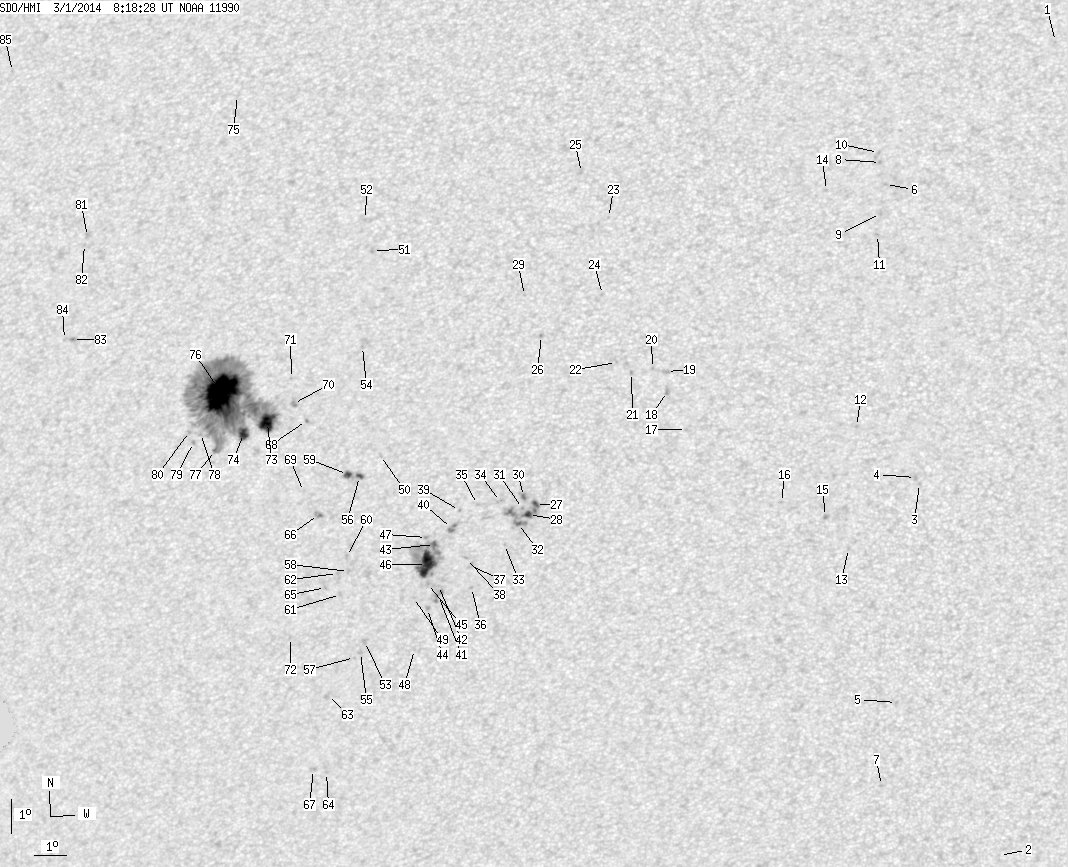

back to the solar disc SDO HMI 2014-03-01 08:18:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.34 | -2.81 | 132.52 | 4.50 | 314.33 | 0.1100 | 575.0 | 459.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -27.42 | 131.17 | 3.15 | 188.04 | 0.3504 | 27.0 | 15.2 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -15.99 | 128.47 | 0.45 | 182.83 | 0.1534 | 759.0 | 557.1 | |
| 0.00 | 2.33 | 0.00 | 1.17 | -15.81 | 128.35 | 0.33 | 182.10 | 0.1502 | 817.0 | 649.9 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -22.65 | 127.74 | -0.28 | 179.03 | 0.2673 | 808.0 | 622.9 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -7.07 | 127.45 | -0.57 | 75.83 | 0.0102 | 908.0 | 714.8 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -25.22 | 127.24 | -0.78 | 177.71 | 0.3107 | 754.0 | 606.5 | |
| 0.00 | 1.38 | 0.00 | 0.68 | -6.42 | 127.30 | -0.72 | 41.88 | 0.0188 | 814.0 | 723.3 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -7.93 | 127.30 | -0.72 | 135.08 | 0.0178 | 602.0 | 457.3 | |
| 0.00 | 1.55 | 0.00 | 0.77 | -6.12 | 127.24 | -0.78 | 35.26 | 0.0235 | 704.0 | 598.1 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -8.56 | 127.20 | -0.82 | 149.00 | 0.0274 | 758.0 | 650.0 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -14.28 | 126.54 | -1.48 | 168.47 | 0.1260 | 826.0 | 647.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -17.94 | 126.25 | -1.76 | 171.06 | 0.1893 | 841.0 | 691.1 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -7.24 | 125.68 | -2.34 | 90.81 | 0.0407 | 623.0 | 441.5 | |
| 0.00 | 2.42 | 0.00 | 1.22 | -16.97 | 125.55 | -2.47 | 166.34 | 0.1753 | 838.0 | 705.9 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -16.54 | 124.19 | -3.83 | 158.48 | 0.1752 | 711.0 | 590.8 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -14.31 | 121.31 | -6.71 | 137.69 | 0.1689 | 690.0 | 550.1 | |
| 0.00 | 3.71 | 0.00 | 1.86 | -13.17 | 120.76 | -7.26 | 130.39 | 0.1623 | 703.0 | 614.1 | |
| 0.00 | 3.54 | 0.00 | 1.77 | -12.57 | 120.75 | -7.27 | 127.36 | 0.1561 | 864.0 | 695.6 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -12.47 | 120.32 | -7.70 | 125.34 | 0.1611 | 812.0 | 656.0 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -12.58 | 119.67 | -8.35 | 123.79 | 0.1712 | 849.0 | 670.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -12.27 | 119.22 | -8.80 | 120.95 | 0.1750 | 657.0 | 548.5 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -7.96 | 119.10 | -8.92 | 95.37 | 0.1549 | 683.0 | 568.1 | |
| 0.00 | 1.55 | 0.00 | 0.78 | -10.24 | 118.86 | -9.16 | 109.13 | 0.1666 | 648.0 | 432.1 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -6.60 | 118.31 | -9.70 | 86.95 | 0.1685 | 675.0 | 420.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -11.42 | 116.94 | -11.08 | 111.86 | 0.2038 | -764.0 | -650.6 | |
| 2.24 | 33.32 | 1.15 | 17.09 | -16.47 | 116.50 | -11.52 | 130.43 | 0.2528 | 1040.2 | 762.1 | |
| 3.28 | -27.00 | 1.68 | -27.00 | -16.76 | 116.26 | -11.76 | 130.78 | 0.2589 | 1059.5 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -10.22 | 116.47 | -11.55 | 105.54 | 0.2055 | 698.0 | 556.5 | |
| 0.86 | 3.71 | 0.44 | 1.90 | -16.22 | 116.14 | -11.88 | 128.80 | 0.2549 | 1091.8 | 833.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -16.58 | 116.08 | -11.94 | 129.81 | 0.2593 | 896.0 | 809.7 | |
| 1.12 | -27.00 | 0.58 | -27.00 | -17.02 | 115.92 | -12.10 | 130.81 | 0.2659 | 963.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -17.65 | 115.44 | -12.58 | 131.53 | 0.2786 | 677.0 | 545.6 | |
| 0.00 | 2.68 | 0.00 | 1.37 | -16.35 | 115.40 | -12.62 | 127.62 | 0.2659 | 739.0 | 542.4 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -16.42 | 114.66 | -13.36 | 126.36 | 0.2764 | -148.0 | -116.3 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -18.92 | 114.27 | -13.75 | 132.53 | 0.3064 | -738.0 | -609.7 | |
| 0.00 | 3.11 | 0.00 | 1.61 | -18.25 | 114.30 | -13.72 | 130.84 | 0.2991 | 317.0 | 259.5 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -18.03 | 114.19 | -13.83 | 130.05 | 0.2983 | 535.0 | 327.7 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -16.58 | 114.08 | -13.94 | 125.75 | 0.2858 | -755.0 | -608.1 | |
| 0.00 | 4.57 | 0.00 | 2.37 | -17.11 | 113.78 | -14.24 | 126.75 | 0.2947 | -888.0 | -890.7 | |
| 0.00 | 7.08 | 0.00 | 3.70 | -19.13 | 113.19 | -14.83 | 131.00 | 0.3220 | -703.0 | -750.5 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -18.82 | 113.21 | -14.81 | 130.30 | 0.3186 | -713.0 | -551.9 | |
| 1.55 | 71.82 | 0.81 | 37.46 | -17.58 | 113.19 | -14.83 | 127.01 | 0.3068 | -1152.7 | -516.2 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -19.51 | 112.79 | -15.23 | 131.24 | 0.3307 | -732.0 | -662.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -18.75 | 112.86 | -15.16 | 129.50 | 0.3223 | -728.0 | -684.5 | |
| 25.81 | -43.00 | 13.47 | -43.00 | -18.17 | 112.88 | -15.14 | 128.06 | 0.3165 | -1112.2 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -17.36 | 112.95 | -15.06 | 126.00 | 0.3080 | -1037.0 | -807.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -20.74 | 112.24 | -15.78 | 133.13 | 0.3501 | -3.0 | -0.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -19.16 | 112.37 | -15.65 | 129.66 | 0.3325 | -711.0 | -532.3 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -14.85 | 111.68 | -16.34 | 116.86 | 0.3061 | -708.0 | -587.7 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -8.73 | 111.81 | -16.21 | 96.49 | 0.2789 | 769.0 | 662.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -7.81 | 111.63 | -16.39 | 93.14 | 0.2812 | 616.0 | 528.9 | |
| 0.00 | 3.88 | 0.00 | 2.07 | -20.44 | 110.61 | -17.41 | 129.87 | 0.3668 | -845.0 | -624.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.57 | 111.34 | -16.68 | 106.10 | 0.2939 | 607.0 | 535.7 | |
| 0.00 | 2.50 | 0.00 | 1.33 | -20.77 | 110.44 | -17.58 | 130.34 | 0.3721 | -741.0 | -623.3 | |
| 1.99 | 3.28 | 1.04 | 1.71 | -15.45 | 110.96 | -17.06 | 117.71 | 0.3208 | -988.0 | -813.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -20.91 | 110.22 | -17.80 | 130.33 | 0.3762 | -419.0 | -409.3 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -18.30 | 110.33 | -17.69 | 124.43 | 0.3514 | -853.0 | -713.1 | |
| 3.11 | 5.70 | 1.63 | 2.98 | -15.38 | 110.58 | -17.44 | 117.04 | 0.3259 | -985.6 | -725.1 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -17.84 | 110.31 | -17.71 | 123.27 | 0.3479 | -794.0 | -678.1 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -18.98 | 109.99 | -18.03 | 125.62 | 0.3617 | -658.0 | -579.4 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -18.34 | 109.96 | -18.06 | 124.05 | 0.3567 | -762.0 | -648.4 | |
| 0.00 | 4.06 | 0.00 | 2.19 | -22.04 | 109.17 | -18.85 | 131.19 | 0.3997 | -684.0 | -546.6 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -24.41 | 108.78 | -19.24 | 135.18 | 0.4276 | -663.0 | -554.6 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -18.75 | 109.52 | -18.50 | 124.44 | 0.3660 | -515.0 | -469.9 | |
| 0.00 | 4.57 | 0.00 | 2.42 | -16.54 | 109.53 | -18.49 | 118.95 | 0.3490 | -915.0 | -715.6 | |
| 0.00 | 2.68 | 0.00 | 1.47 | -24.30 | 108.34 | -19.68 | 134.40 | 0.4313 | -817.0 | -637.1 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -13.71 | 109.40 | -18.62 | 111.07 | 0.3339 | -635.0 | -501.1 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -15.83 | 109.11 | -18.91 | 116.62 | 0.3503 | -701.0 | -615.3 | |
| 0.00 | 3.54 | 0.00 | 1.86 | -13.19 | 109.02 | -19.00 | 109.25 | 0.3372 | -889.0 | -756.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -12.44 | 109.02 | -19.00 | 107.08 | 0.3341 | -532.0 | -428.8 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -20.22 | 108.17 | -19.85 | 126.05 | 0.3959 | -643.0 | -447.7 | |
| 19.59 | 478.72 | 10.37 | 255.09 | -13.72 | 108.13 | -19.89 | 110.04 | 0.3533 | -1179.4 | 165.9 | |
| 9.06 | -73.00 | 4.82 | -73.00 | -14.01 | 107.32 | -20.70 | 110.20 | 0.3670 | -1055.3 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -3.96 | 107.74 | -20.28 | 81.93 | 0.3508 | -8.0 | -7.2 | |
| 72.25 | -73.00 | 38.51 | -73.00 | -12.76 | 106.72 | -21.30 | 106.50 | 0.3711 | 1451.4 | 999999 | |
| 0.95 | -73.00 | 0.51 | -73.00 | -14.48 | 106.35 | -21.66 | 110.69 | 0.3838 | -542.4 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -13.95 | 105.91 | -22.11 | 109.06 | 0.3881 | 495.0 | 397.4 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -14.21 | 105.66 | -22.36 | 109.53 | 0.3931 | 602.0 | 486.2 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -13.87 | 105.56 | -22.46 | 108.64 | 0.3932 | 395.0 | 423.5 | |
| 0.00 | 2.16 | 0.00 | 1.18 | -7.90 | 102.69 | -25.33 | 93.24 | 0.4262 | -755.0 | -540.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -8.14 | 102.58 | -25.44 | 93.78 | 0.4280 | -581.0 | -489.8 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -10.93 | 101.94 | -26.08 | 100.16 | 0.4403 | -891.0 | -708.8 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -10.92 | 101.68 | -26.34 | 100.07 | 0.4444 | -570.0 | -460.6 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -2.86 | 100.43 | -27.59 | 82.41 | 0.4686 | -593.0 | -405.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
