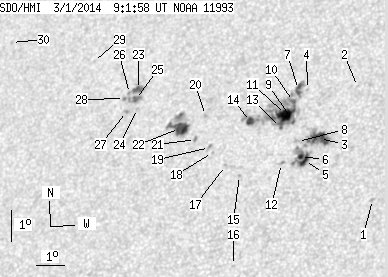

SDO HMI 2014-03-01 09:01:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.61 | 214.15 | 38.41 | 129.41 | 15.99 | 101.44 | -26.18 | 47.92 | 0.5727 | -0.4 | 6.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 09:01:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.99 | 13.32 | 105.68 | -21.94 | 46.77 | 0.5011 | 686.0 | 534.4 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 16.99 | 104.77 | -22.85 | 42.84 | 0.5484 | -555.0 | -444.3 | |
| 12.77 | 48.85 | 7.52 | 28.79 | 15.37 | 103.69 | -23.93 | 46.31 | 0.5430 | -940.1 | -462.5 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 16.98 | 103.08 | -24.55 | 44.88 | 0.5653 | -764.0 | -649.9 | |
| 5.01 | -3.00 | 2.94 | -3.00 | 14.68 | 103.27 | -24.35 | 47.76 | 0.5409 | -1005.2 | 999999 | |
| 1.99 | -3.00 | 1.17 | -3.00 | 14.82 | 103.12 | -24.51 | 47.75 | 0.5439 | -326.1 | 999999 | |
| 3.71 | 98.05 | 2.23 | 58.92 | 17.00 | 102.77 | -24.86 | 45.21 | 0.5686 | -787.3 | -78.2 | |
| 0.00 | 3.02 | 0.00 | 1.79 | 15.31 | 102.96 | -24.67 | 47.25 | 0.5503 | 117.0 | 94.6 | |
| 0.86 | -7.00 | 0.51 | -7.00 | 15.97 | 102.74 | -24.89 | 46.61 | 0.5589 | 521.5 | 999999 | |
| 1.29 | -7.00 | 0.78 | -7.00 | 16.62 | 102.65 | -24.98 | 45.85 | 0.5661 | -765.7 | 999999 | |
| 13.81 | -7.00 | 8.27 | -7.00 | 16.21 | 102.43 | -25.19 | 46.63 | 0.5645 | -1060.8 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.12 | 14.63 | 102.50 | -25.13 | 48.72 | 0.5488 | -166.0 | -178.0 | |
| 0.35 | -7.00 | 0.21 | -7.00 | 15.80 | 102.31 | -25.31 | 47.32 | 0.5617 | 850.0 | 999999 | |
| 4.14 | -7.00 | 2.50 | -7.00 | 16.05 | 101.25 | -26.38 | 48.14 | 0.5754 | 936.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 14.33 | 101.10 | -26.52 | 50.67 | 0.5615 | 738.0 | 579.2 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 11.48 | 101.22 | -26.40 | 54.77 | 0.5356 | 673.0 | 481.9 | |
| 0.00 | 1.47 | 0.00 | 0.88 | 14.68 | 100.57 | -27.05 | 50.73 | 0.5704 | 626.0 | 519.2 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 15.13 | 100.06 | -27.56 | 50.64 | 0.5800 | 811.0 | 618.8 | |
| 0.00 | 2.50 | 0.00 | 1.52 | 15.30 | 99.93 | -27.69 | 50.53 | 0.5828 | 656.0 | 599.6 | |
| 0.00 | 1.55 | 0.00 | 0.96 | 16.35 | 99.64 | -27.99 | 49.42 | 0.5951 | 860.0 | 729.3 | |
| 0.00 | 1.90 | 0.00 | 1.16 | 15.59 | 99.40 | -28.22 | 50.67 | 0.5911 | 712.0 | 625.8 | |
| 13.55 | 28.05 | 8.38 | 17.37 | 15.98 | 98.78 | -28.85 | 50.75 | 0.6012 | 878.6 | 287.2 | |
| 3.71 | 5.96 | 2.36 | 3.79 | 17.36 | 97.08 | -30.55 | 50.55 | 0.6306 | 869.8 | 689.6 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 16.74 | 97.15 | -30.47 | 51.28 | 0.6247 | 805.0 | 664.1 | |
| 2.42 | 7.68 | 1.54 | 4.88 | 17.04 | 97.03 | -30.60 | 51.00 | 0.6285 | 962.9 | 802.1 | |
| 0.00 | 1.29 | 0.00 | 0.83 | 17.25 | 96.77 | -30.85 | 50.96 | 0.6329 | 422.0 | 462.9 | |
| 0.00 | 1.90 | 0.00 | 1.21 | 16.67 | 96.77 | -30.86 | 51.72 | 0.6283 | 723.0 | 616.5 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 17.10 | 96.62 | -31.01 | 51.29 | 0.6333 | 648.0 | 582.1 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 18.40 | 95.22 | -32.40 | 50.86 | 0.6579 | 491.0 | 377.8 | |
| 0.00 | 1.21 | 0.00 | 0.83 | 19.28 | 91.90 | -35.72 | 52.44 | 0.6976 | -506.0 | -337.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
