SDO HMI 2014-03-01 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.68 | 361.35 | 32.41 | 199.33 | -1.34 | 151.91 | 25.37 | 282.10 | 0.4396 | -398.2 | -308.1 | |
|
previous
or next observation for the same group /

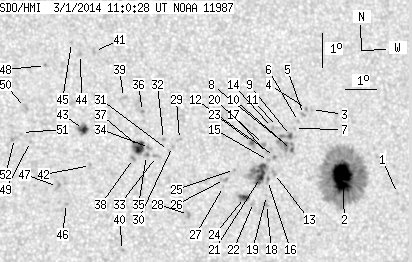

back to the solar disc SDO HMI 2014-03-01 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.44 | -1.91 | 155.57 | 29.03 | 278.97 | 0.4930 | 848.0 | 686.9 | |
| 38.40 | 210.92 | 21.48 | 117.99 | -1.52 | 153.71 | 27.17 | 280.60 | 0.4663 | -1385.3 | -354.6 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 0.43 | 152.67 | 26.13 | 285.26 | 0.4584 | -661.0 | -602.1 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 0.45 | 152.51 | 25.96 | 285.41 | 0.4560 | -836.0 | -677.9 | |
| 0.00 | 1.90 | 0.00 | 1.05 | 0.27 | 152.41 | 25.86 | 285.08 | 0.4537 | -887.0 | -717.3 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 0.05 | 152.24 | 25.70 | 284.72 | 0.4502 | -885.0 | -705.1 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -0.17 | 152.11 | 25.57 | 284.34 | 0.4473 | -754.0 | -664.8 | |
| 0.69 | 20.71 | 0.38 | 11.42 | -0.80 | 152.01 | 25.47 | 283.02 | 0.4432 | -831.9 | -795.6 | |
| 1.21 | -8.00 | 0.67 | -8.00 | -0.39 | 151.98 | 25.43 | 283.95 | 0.4444 | -939.1 | 999999 | |
| 0.86 | -8.00 | 0.48 | -8.00 | -0.66 | 151.81 | 25.27 | 283.44 | 0.4408 | -1087.7 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -0.14 | 151.55 | 25.01 | 284.76 | 0.4390 | -380.0 | -453.6 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -1.04 | 151.45 | 24.91 | 282.82 | 0.4337 | -984.0 | -871.2 | |
| 0.00 | 2.93 | 0.00 | 1.61 | -1.55 | 151.46 | 24.92 | 281.67 | 0.4319 | -675.0 | -607.7 | |
| 0.00 | 1.55 | 0.00 | 0.85 | -0.18 | 151.39 | 24.84 | 284.78 | 0.4364 | -766.0 | -573.9 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -1.17 | 151.26 | 24.72 | 282.64 | 0.4302 | -786.0 | -664.0 | |
| 0.00 | 2.24 | 0.00 | 1.23 | -1.77 | 151.23 | 24.69 | 281.29 | 0.4276 | -727.0 | -585.9 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -0.96 | 151.23 | 24.68 | 283.13 | 0.4306 | -855.0 | -739.8 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -2.49 | 151.21 | 24.67 | 279.65 | 0.4248 | -955.0 | -782.0 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -2.22 | 151.21 | 24.66 | 280.27 | 0.4256 | -911.0 | -731.7 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -0.70 | 151.09 | 24.55 | 283.80 | 0.4296 | -1026.0 | -839.7 | |
| 3.19 | 27.79 | 1.75 | 15.18 | -1.69 | 151.00 | 24.46 | 281.60 | 0.4243 | -1238.0 | -861.0 | |
| 0.00 | 2.50 | 0.00 | 1.36 | -2.45 | 150.79 | 24.24 | 279.95 | 0.4183 | -693.0 | -605.5 | |
| 0.95 | 5.01 | 0.52 | 2.74 | -0.66 | 150.73 | 24.19 | 284.12 | 0.4243 | -1080.5 | -827.3 | |
| 3.28 | 5.87 | 1.78 | 3.19 | -2.31 | 150.49 | 23.95 | 280.42 | 0.4141 | -1079.9 | -797.3 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -1.50 | 150.15 | 23.61 | 282.54 | 0.4119 | -855.0 | -710.5 | |
| 0.00 | 3.54 | 0.00 | 1.92 | -1.81 | 149.83 | 23.29 | 281.99 | 0.4057 | -1061.0 | -791.1 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -2.02 | 149.80 | 23.26 | 281.50 | 0.4045 | -876.0 | -671.5 | |
| 0.00 | 2.68 | 0.00 | 1.43 | -2.91 | 148.69 | 22.15 | 279.91 | 0.3839 | -855.0 | -706.4 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -0.68 | 148.38 | 21.83 | 285.72 | 0.3880 | 598.0 | 556.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -0.90 | 148.15 | 21.61 | 285.34 | 0.3835 | 201.0 | 346.5 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -1.03 | 148.03 | 21.48 | 285.13 | 0.3810 | 491.0 | 453.8 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -0.71 | 147.86 | 21.32 | 286.06 | 0.3800 | 934.0 | 727.8 | |
| 0.00 | 2.85 | 0.00 | 1.52 | -1.23 | 147.64 | 21.10 | 284.91 | 0.3741 | 684.0 | 507.9 | |
| 0.00 | 2.42 | 0.00 | 1.29 | -0.97 | 147.42 | 20.88 | 285.76 | 0.3718 | 778.0 | 647.2 | |
| 0.00 | 2.24 | 0.00 | 1.20 | -1.21 | 147.33 | 20.78 | 285.20 | 0.3692 | 797.0 | 682.7 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 0.10 | 147.20 | 20.65 | 288.67 | 0.3739 | 886.0 | 750.4 | |
| 6.39 | 11.82 | 3.40 | 6.29 | -0.98 | 147.10 | 20.56 | 285.98 | 0.3668 | 1114.9 | 893.1 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -1.32 | 146.91 | 20.37 | 285.24 | 0.3623 | 986.0 | 851.5 | |
| 0.00 | 2.93 | 0.00 | 1.56 | 0.49 | 146.59 | 20.05 | 290.25 | 0.3670 | 773.0 | 607.1 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -4.07 | 146.61 | 20.07 | 277.84 | 0.3470 | 783.0 | 618.7 | |
| 0.00 | 2.16 | 0.00 | 1.15 | 1.84 | 145.69 | 19.15 | 294.63 | 0.3623 | 803.0 | 654.6 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -1.58 | 145.56 | 19.01 | 285.65 | 0.3397 | 748.0 | 652.6 | |
| 3.71 | 7.68 | 1.95 | 4.05 | -0.52 | 145.33 | 18.79 | 288.84 | 0.3418 | 1103.3 | 853.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 1.73 | 145.25 | 18.71 | 294.90 | 0.3550 | 778.0 | 573.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 2.08 | 144.97 | 18.43 | 296.14 | 0.3535 | 764.0 | 611.2 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -2.74 | 144.82 | 18.27 | 282.87 | 0.3227 | 843.0 | 669.5 | |
| 0.00 | 3.37 | 0.00 | 1.76 | -2.25 | 144.53 | 17.99 | 284.60 | 0.3203 | 882.0 | 785.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 1.36 | 144.15 | 17.61 | 295.32 | 0.3361 | 753.0 | 586.0 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -0.94 | 143.68 | 17.13 | 289.40 | 0.3137 | 878.0 | 733.4 | |
| 0.00 | 2.33 | 0.00 | 1.22 | 0.07 | 143.52 | 16.98 | 292.56 | 0.3176 | 774.0 | 688.4 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -0.68 | 143.40 | 16.85 | 290.50 | 0.3109 | 531.0 | 587.3 | |
| 0.00 | 3.19 | 0.00 | 1.66 | -0.87 | 143.18 | 16.64 | 290.19 | 0.3064 | 942.0 | 719.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
