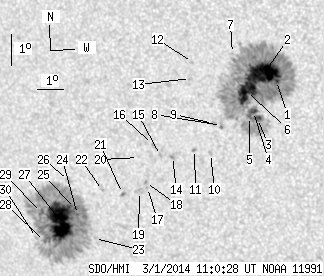

SDO HMI 2014-03-01 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.87 | 765.67 | 86.16 | 476.77 | -24.34 | 92.23 | -34.31 | 121.57 | 0.6022 | 28.1 | 4.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.33 | 402.69 | 1.36 | 237.22 | -22.51 | 97.28 | -29.26 | 121.67 | 0.5327 | 1098.8 | 344.6 | |
| 43.50 | -1.00 | 25.49 | -1.00 | -22.26 | 96.86 | -29.68 | 120.96 | 0.5366 | 1197.3 | 999999 | |
| 3.11 | -1.00 | 1.84 | -1.00 | -23.63 | 96.30 | -30.24 | 122.88 | 0.5516 | 956.6 | 999999 | |
| 2.93 | -1.00 | 1.74 | -1.00 | -23.41 | 96.21 | -30.34 | 122.45 | 0.5514 | 920.9 | 999999 | |
| 1.38 | -1.00 | 0.82 | -1.00 | -23.55 | 96.02 | -30.52 | 122.56 | 0.5546 | 666.6 | 999999 | |
| 25.80 | -1.00 | 15.27 | -1.00 | -22.78 | 96.10 | -30.44 | 121.32 | 0.5490 | 894.3 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -21.58 | 95.87 | -30.67 | 119.15 | 0.5453 | 298.0 | 237.3 | |
| 0.00 | 2.59 | 0.00 | 1.56 | -23.76 | 94.90 | -31.64 | 122.16 | 0.5694 | 560.0 | 446.2 | |
| 0.00 | 2.16 | 0.00 | 1.30 | -23.68 | 94.62 | -31.93 | 121.85 | 0.5724 | -432.0 | -279.9 | |
| 0.00 | 1.98 | 0.00 | 1.21 | -24.60 | 94.24 | -32.30 | 123.08 | 0.5821 | -471.0 | -463.0 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -24.43 | 93.67 | -32.87 | 122.46 | 0.5879 | -738.0 | -694.9 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -21.76 | 94.33 | -32.22 | 118.54 | 0.5658 | 606.0 | 504.1 | |
| 0.00 | 1.90 | 0.00 | 1.14 | -22.25 | 94.12 | -32.42 | 119.22 | 0.5707 | 717.0 | 523.4 | |
| 0.00 | 2.07 | 0.00 | 1.28 | -24.59 | 92.76 | -33.78 | 122.17 | 0.5996 | -810.0 | -777.8 | |
| 0.00 | 1.90 | 0.00 | 1.18 | -24.53 | 92.30 | -34.24 | 121.81 | 0.6046 | -840.0 | -678.4 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -24.17 | 92.10 | -34.44 | 121.14 | 0.6051 | -774.0 | -558.0 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -25.48 | 91.47 | -35.07 | 122.79 | 0.6192 | -746.0 | -633.2 | |
| 0.00 | 1.29 | 0.00 | 0.81 | -25.32 | 91.45 | -35.09 | 122.53 | 0.6187 | -819.0 | -663.5 | |
| 0.00 | 4.23 | 0.00 | 2.67 | -25.58 | 91.12 | -35.43 | 122.74 | 0.6239 | -640.0 | -659.2 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -24.53 | 91.43 | -35.12 | 121.33 | 0.6149 | 589.0 | 379.6 | |
| 0.35 | 1.64 | 0.22 | 1.05 | -25.60 | 90.42 | -36.12 | 122.39 | 0.6319 | -707.2 | -652.1 | |
| 0.00 | 1.38 | 0.00 | 0.89 | -25.45 | 89.65 | -36.89 | 121.77 | 0.6399 | -743.0 | -549.6 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -26.91 | 88.76 | -37.78 | 123.43 | 0.6569 | -534.0 | -518.2 | |
| 0.69 | 329.85 | 0.45 | 218.84 | -26.12 | 88.36 | -38.18 | 122.09 | 0.6575 | -1091.1 | -319.9 | |
| 0.78 | -24.00 | 0.51 | -24.00 | -25.92 | 88.35 | -38.19 | 121.81 | 0.6568 | -1115.0 | 999999 | |
| 0.00 | 4.32 | 0.00 | 2.81 | -25.04 | 88.39 | -38.15 | 120.56 | 0.6523 | -441.0 | -437.2 | |
| 55.06 | -24.00 | 36.50 | -24.00 | -26.25 | 87.59 | -38.96 | 121.92 | 0.6667 | -1035.0 | 999999 | |
| 0.78 | -24.00 | 0.52 | -24.00 | -26.85 | 86.65 | -39.90 | 122.33 | 0.6796 | -293.9 | 999999 | |
| 2.16 | -24.00 | 1.44 | -24.00 | -25.94 | 86.89 | -39.65 | 121.17 | 0.6729 | -428.9 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.87 | -26.70 | 86.36 | -40.18 | 121.99 | 0.6820 | 180.0 | 144.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
