SDO HMI 2014-03-01 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.04 | 81.74 | 15.25 | 44.01 | -7.45 | 149.69 | 23.14 | 268.01 | 0.3916 | 372.6 | 152.1 | |
|
previous
or next observation for the same group /

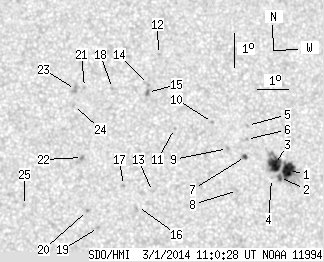

back to the solar disc SDO HMI 2014-03-01 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.03 | 52.73 | 7.10 | 28.71 | -7.77 | 151.46 | 24.91 | 267.07 | 0.4197 | 1030.5 | 535.2 | |
| 1.55 | -1.00 | 0.85 | -1.00 | -8.00 | 151.17 | 24.63 | 266.53 | 0.4152 | 901.6 | 999999 | |
| 12.34 | -1.00 | 6.70 | -1.00 | -7.62 | 150.98 | 24.44 | 267.45 | 0.4123 | 1164.5 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -8.04 | 150.91 | 24.37 | 266.43 | 0.4111 | 286.0 | 248.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -6.50 | 150.04 | 23.50 | 270.29 | 0.3978 | 570.0 | 385.6 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -6.92 | 150.03 | 23.48 | 269.24 | 0.3973 | 726.0 | 618.8 | |
| 1.12 | 2.16 | 0.60 | 1.16 | -7.43 | 150.02 | 23.48 | 267.96 | 0.3970 | 935.5 | 749.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -8.45 | 149.82 | 23.28 | 265.36 | 0.3939 | -761.0 | -624.4 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -7.22 | 149.42 | 22.88 | 268.53 | 0.3875 | 673.0 | 608.4 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -6.47 | 148.90 | 22.36 | 270.54 | 0.3796 | 900.0 | 751.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -6.70 | 147.69 | 21.14 | 270.08 | 0.3598 | -680.0 | -585.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -4.53 | 147.10 | 20.55 | 276.33 | 0.3537 | -716.0 | -635.3 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -8.60 | 147.08 | 20.53 | 264.70 | 0.3498 | 75.0 | 29.0 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -5.43 | 146.81 | 20.26 | 273.87 | 0.3471 | -904.0 | -682.6 | |
| 0.00 | 2.68 | 0.00 | 1.41 | -5.67 | 146.78 | 20.24 | 273.18 | 0.3463 | -1143.0 | -908.1 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -9.07 | 146.62 | 20.08 | 263.28 | 0.3429 | 584.0 | 627.3 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -8.46 | 146.14 | 19.60 | 265.00 | 0.3345 | 830.0 | 692.4 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -5.60 | 145.67 | 19.13 | 273.73 | 0.3283 | 720.0 | 547.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -9.74 | 145.41 | 18.87 | 260.95 | 0.3242 | 793.0 | 552.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -9.25 | 145.04 | 18.49 | 262.36 | 0.3173 | -833.0 | -704.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -5.60 | 144.79 | 18.25 | 274.00 | 0.3137 | -656.0 | -555.0 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -7.68 | 144.80 | 18.26 | 267.33 | 0.3122 | -1020.0 | -855.2 | |
| 0.00 | 4.06 | 0.00 | 2.11 | -5.67 | 144.51 | 17.96 | 273.87 | 0.3090 | -814.0 | -748.3 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -6.15 | 144.46 | 17.92 | 272.33 | 0.3075 | -824.0 | -663.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -9.17 | 143.04 | 16.50 | 262.01 | 0.2844 | -745.0 | -538.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
