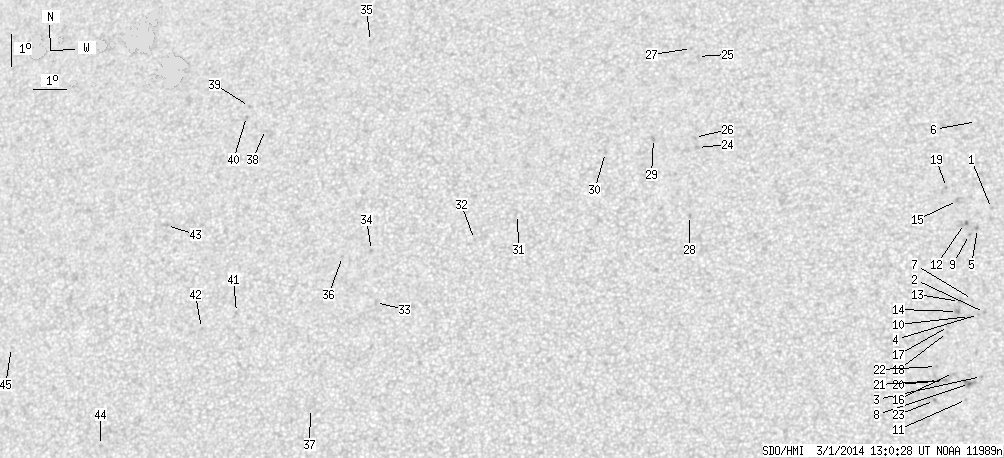

SDO HMI 2014-03-01 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 57.59 | 0.22 | 30.19 | 8.74 | 120.87 | -4.58 | 286.68 | 0.3190 | -334.5 | -341.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.63 | 10.25 | 129.24 | 3.79 | 347.75 | 0.3081 | -767.0 | -620.7 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 7.04 | 128.99 | 3.55 | 345.99 | 0.2546 | -846.0 | -695.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 5.08 | 128.89 | 3.44 | 344.30 | 0.2219 | -812.0 | -626.1 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 6.98 | 128.81 | 3.36 | 346.62 | 0.2528 | -867.0 | -699.1 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 9.63 | 128.81 | 3.36 | 348.71 | 0.2965 | -854.0 | -744.4 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 12.98 | 128.82 | 3.37 | 350.56 | 0.3512 | 8.0 | -3.1 | |
| 0.00 | 0.26 | 0.00 | 0.13 | 7.43 | 128.64 | 3.19 | 347.68 | 0.2597 | -731.0 | -602.3 | |
| 0.43 | 5.87 | 0.22 | 2.98 | 4.87 | 128.53 | 3.08 | 345.63 | 0.2168 | -1183.4 | -835.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 9.44 | 128.56 | 3.12 | 349.39 | 0.2926 | -1029.0 | -908.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 6.91 | 128.54 | 3.09 | 347.60 | 0.2508 | -894.0 | -648.6 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 4.38 | 128.43 | 2.99 | 345.48 | 0.2084 | -821.0 | -600.1 | |
| 0.00 | 2.93 | 0.00 | 1.52 | 9.78 | 128.42 | 2.97 | 350.08 | 0.2978 | -898.0 | -875.3 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 7.37 | 128.24 | 2.80 | 349.11 | 0.2574 | -854.0 | -818.2 | |
| 0.00 | 2.24 | 0.00 | 1.15 | 7.06 | 128.18 | 2.74 | 349.12 | 0.2521 | -994.0 | -863.9 | |
| 0.00 | 2.24 | 0.00 | 1.17 | 10.49 | 128.21 | 2.77 | 351.13 | 0.3090 | -805.0 | -687.5 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 5.20 | 128.05 | 2.60 | 348.10 | 0.2205 | -636.0 | -684.6 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 6.60 | 127.91 | 2.46 | 349.85 | 0.2435 | -784.0 | -521.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 6.42 | 127.88 | 2.43 | 349.85 | 0.2404 | -691.0 | -505.7 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 10.90 | 127.88 | 2.44 | 352.35 | 0.3149 | -743.0 | -584.0 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 4.96 | 127.78 | 2.34 | 349.09 | 0.2155 | -879.0 | -680.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 4.96 | 127.60 | 2.16 | 349.91 | 0.2149 | -877.0 | -683.1 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 5.38 | 127.54 | 2.10 | 350.50 | 0.2219 | -818.0 | -726.0 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 4.35 | 127.48 | 2.03 | 349.98 | 0.2043 | 734.0 | 645.4 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 12.19 | 120.32 | -5.12 | 14.75 | 0.3444 | -819.0 | -644.0 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 15.08 | 120.26 | -5.18 | 12.97 | 0.3904 | -600.0 | -377.9 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 12.50 | 120.23 | -5.22 | 14.78 | 0.3499 | -634.0 | -520.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 15.34 | 120.07 | -5.38 | 13.27 | 0.3952 | -648.0 | -520.8 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 10.06 | 120.12 | -5.33 | 17.15 | 0.3115 | -706.0 | -525.6 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 12.49 | 118.97 | -6.47 | 18.13 | 0.3554 | -798.0 | -648.5 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 12.08 | 117.51 | -7.93 | 22.30 | 0.3573 | -920.0 | -643.2 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 10.19 | 114.87 | -10.58 | 31.31 | 0.3491 | 3.0 | -3.3 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 9.45 | 113.57 | -11.87 | 35.54 | 0.3507 | -12.0 | 3.4 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 7.60 | 110.58 | -14.87 | 45.32 | 0.3592 | 793.0 | 679.3 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 9.21 | 110.39 | -15.05 | 42.63 | 0.3801 | 760.0 | 641.2 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 15.82 | 109.97 | -15.48 | 33.57 | 0.4663 | 715.0 | 574.8 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 9.06 | 109.50 | -15.95 | 44.58 | 0.3883 | 747.0 | 646.6 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 4.44 | 108.65 | -16.79 | 55.69 | 0.3503 | 1.0 | -0.6 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 13.14 | 106.81 | -18.64 | 42.37 | 0.4639 | 418.0 | 458.3 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 13.89 | 106.23 | -19.22 | 42.13 | 0.4783 | 744.0 | 557.8 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 13.58 | 106.16 | -19.29 | 42.69 | 0.4755 | 742.0 | 636.1 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 7.47 | 106.23 | -19.22 | 52.95 | 0.4107 | -706.0 | -547.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 7.02 | 105.13 | -20.31 | 55.35 | 0.4206 | 761.0 | 589.7 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 10.27 | 103.82 | -21.63 | 51.20 | 0.4673 | 843.0 | 621.7 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 3.62 | 102.01 | -23.44 | 65.90 | 0.4367 | 749.0 | 441.9 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 6.77 | 98.94 | -26.50 | 62.73 | 0.5006 | 741.0 | 610.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
