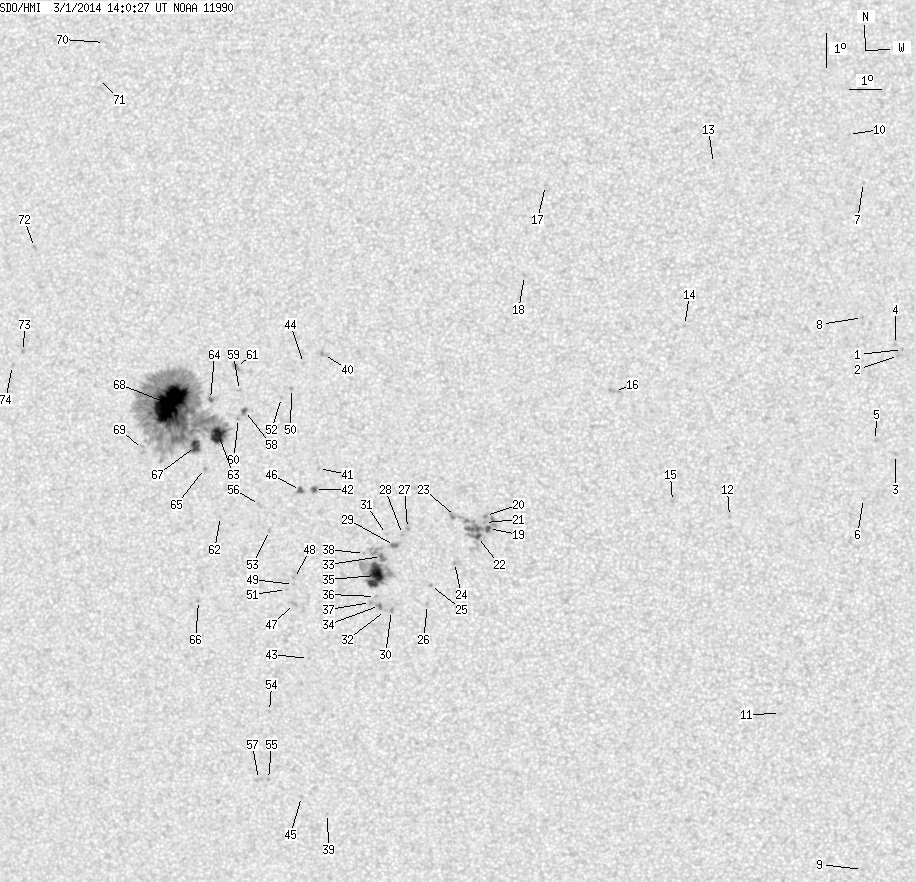

SDO HMI 2014-03-01 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 129.48 | 710.82 | 67.38 | 369.80 | -14.00 | 108.98 | -15.92 | 117.23 | 0.3021 | 95.0 | 84.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.52 | -11.46 | 129.29 | 4.39 | 225.20 | 0.1062 | 856.0 | 661.1 | |
| 0.00 | 1.55 | 0.00 | 0.77 | -11.64 | 129.17 | 4.27 | 223.23 | 0.1070 | 898.0 | 731.3 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -14.60 | 129.12 | 4.23 | 208.95 | 0.1480 | 938.0 | 782.4 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -11.31 | 129.07 | 4.17 | 224.80 | 0.1018 | 870.0 | 611.2 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -14.18 | 128.50 | 3.60 | 206.62 | 0.1367 | 945.0 | 757.7 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -15.92 | 128.16 | 3.26 | 199.83 | 0.1620 | 672.0 | 506.8 | |
| 0.00 | 1.38 | 0.00 | 0.68 | -6.51 | 128.06 | 3.17 | 282.43 | 0.0565 | 757.0 | 574.0 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -10.52 | 128.06 | 3.16 | 223.17 | 0.0797 | 781.0 | 572.2 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -27.32 | 128.38 | 3.48 | 188.91 | 0.3497 | 6.0 | 6.5 | |
| 0.00 | 1.04 | 0.00 | 0.51 | -5.08 | 127.61 | 2.71 | 308.11 | 0.0602 | 689.0 | 591.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -22.46 | 125.61 | 0.72 | 182.51 | 0.2645 | 841.0 | 653.5 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -16.47 | 124.02 | -0.88 | 174.76 | 0.1623 | 832.0 | 609.8 | |
| 0.00 | 0.69 | 0.00 | 0.34 | -5.95 | 123.58 | -1.32 | 46.01 | 0.0319 | 850.0 | 706.5 | |
| 0.00 | 1.04 | 0.00 | 0.51 | -10.75 | 122.68 | -2.21 | 148.48 | 0.0729 | 843.0 | 584.8 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -16.01 | 122.26 | -2.64 | 163.86 | 0.1601 | 853.0 | 614.1 | |
| 0.00 | 4.92 | 0.00 | 2.45 | -12.70 | 120.53 | -4.37 | 142.29 | 0.1220 | 912.0 | 738.8 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -6.55 | 118.55 | -6.35 | 84.42 | 0.1109 | 906.0 | 683.2 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -9.21 | 117.87 | -7.03 | 106.54 | 0.1266 | 959.0 | 728.5 | |
| 1.90 | 30.11 | 0.96 | 15.29 | -16.75 | 116.51 | -8.39 | 140.09 | 0.2187 | 1049.0 | 822.5 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -16.35 | 116.43 | -8.46 | 138.61 | 0.2146 | 1047.0 | 977.6 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -16.56 | 116.39 | -8.50 | 139.14 | 0.2176 | 1132.0 | 986.7 | |
| 1.90 | -19.00 | 0.96 | -19.00 | -16.98 | 116.15 | -8.74 | 139.65 | 0.2256 | 1003.4 | 999999 | |
| 0.00 | 4.66 | 0.00 | 2.37 | -16.37 | 115.49 | -9.40 | 135.72 | 0.2255 | 751.0 | 762.1 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -17.75 | 115.39 | -9.51 | 139.56 | 0.2436 | 840.0 | 600.3 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -18.43 | 114.59 | -10.31 | 139.17 | 0.2608 | 773.0 | 637.6 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -19.00 | 114.46 | -10.44 | 140.29 | 0.2694 | -793.0 | -706.6 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -16.69 | 113.97 | -10.93 | 132.58 | 0.2478 | -977.0 | -780.6 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -16.87 | 113.80 | -11.10 | 132.70 | 0.2519 | -861.0 | -614.6 | |
| 0.00 | 4.57 | 0.00 | 2.34 | -17.19 | 113.52 | -11.37 | 133.01 | 0.2588 | -1274.0 | -1004.7 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -19.16 | 113.29 | -11.60 | 137.78 | 0.2840 | -1024.0 | -784.9 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -16.86 | 113.29 | -11.61 | 131.45 | 0.2580 | 769.0 | 533.1 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -19.15 | 113.10 | -11.80 | 137.32 | 0.2861 | -880.0 | -683.5 | |
| 0.69 | 12.34 | 0.35 | 6.34 | -17.51 | 113.09 | -11.81 | 132.91 | 0.2677 | -1122.1 | -749.9 | |
| 0.60 | 3.11 | 0.31 | 1.61 | -18.99 | 112.92 | -11.98 | 136.51 | 0.2864 | -1066.7 | -886.1 | |
| 23.29 | 56.77 | 12.00 | 29.24 | -18.08 | 112.86 | -12.04 | 133.97 | 0.2767 | -1113.6 | -484.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -18.72 | 112.81 | -12.08 | 135.55 | 0.2844 | -955.0 | -775.7 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -18.90 | 112.64 | -12.26 | 135.62 | 0.2885 | -817.0 | -697.3 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -17.41 | 112.56 | -12.34 | 131.41 | 0.2732 | -732.0 | -591.8 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -25.34 | 110.59 | -14.31 | 144.63 | 0.3875 | -731.0 | -566.3 | |
| 0.00 | 3.62 | 0.00 | 1.85 | -11.42 | 111.62 | -13.27 | 108.82 | 0.2389 | 764.0 | 700.8 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -14.82 | 111.27 | -13.62 | 120.80 | 0.2663 | -943.0 | -630.9 | |
| 1.38 | 3.80 | 0.71 | 1.95 | -15.44 | 111.10 | -13.79 | 122.54 | 0.2739 | -1094.7 | -863.9 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -20.54 | 110.49 | -14.41 | 135.15 | 0.3319 | -779.0 | -597.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -11.67 | 110.99 | -13.91 | 109.06 | 0.2502 | 711.0 | 505.7 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -24.78 | 109.78 | -15.12 | 142.25 | 0.3885 | -850.0 | -622.4 | |
| 1.81 | 3.88 | 0.93 | 2.00 | -15.46 | 110.66 | -14.24 | 121.83 | 0.2803 | -1071.7 | -824.0 | |
| 0.00 | 3.19 | 0.00 | 1.67 | -18.85 | 110.19 | -14.71 | 130.57 | 0.3177 | -973.0 | -795.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -18.10 | 110.26 | -14.64 | 128.74 | 0.3094 | -934.0 | -769.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -18.28 | 110.21 | -14.69 | 129.13 | 0.3118 | -810.0 | -653.9 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -12.40 | 110.57 | -14.33 | 111.32 | 0.2606 | 828.0 | 695.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -18.42 | 109.97 | -14.93 | 129.08 | 0.3163 | -861.0 | -719.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.66 | 110.24 | -14.66 | 111.84 | 0.2672 | -707.0 | -546.1 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -16.63 | 109.58 | -15.32 | 123.55 | 0.3051 | -907.0 | -732.0 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -22.12 | 109.03 | -15.87 | 135.93 | 0.3658 | -801.0 | -609.9 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -24.21 | 108.73 | -16.16 | 139.47 | 0.3924 | -913.0 | -797.8 | |
| 0.00 | 2.59 | 0.00 | 1.34 | -15.83 | 109.32 | -15.58 | 120.87 | 0.3023 | -675.0 | -643.3 | |
| 0.00 | 2.76 | 0.00 | 1.49 | -24.20 | 108.39 | -16.50 | 138.90 | 0.3958 | -672.0 | -600.7 | |
| 1.21 | 3.02 | 0.62 | 1.56 | -13.01 | 109.05 | -15.85 | 111.66 | 0.2876 | -1048.1 | -831.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.41 | 108.93 | -15.97 | 109.53 | 0.2863 | -895.0 | -636.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.24 | 108.84 | -16.05 | 112.19 | 0.2920 | -940.0 | -819.2 | |
| 0.00 | 3.62 | 0.00 | 1.87 | -11.69 | 108.88 | -16.02 | 107.05 | 0.2839 | 866.0 | 661.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -16.15 | 108.04 | -16.86 | 119.96 | 0.3230 | -680.0 | -568.4 | |
| 16.65 | 495.37 | 8.66 | 259.04 | -13.69 | 108.17 | -16.72 | 112.90 | 0.3048 | -1183.1 | 160.0 | |
| 0.86 | 3.97 | 0.45 | 2.06 | -12.64 | 108.00 | -16.90 | 109.41 | 0.3021 | -901.7 | -494.5 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -14.69 | 107.65 | -17.25 | 115.32 | 0.3187 | -932.0 | -868.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -18.65 | 107.07 | -17.83 | 125.14 | 0.3562 | -794.0 | -694.6 | |
| 8.02 | -63.00 | 4.19 | -63.00 | -14.03 | 107.41 | -17.48 | 113.10 | 0.3183 | -1078.6 | 999999 | |
| 69.53 | -63.00 | 36.37 | -63.00 | -12.74 | 106.71 | -18.19 | 108.61 | 0.3227 | 1333.0 | 999999 | |
| 0.00 | 4.05 | 0.00 | 2.14 | -14.05 | 105.70 | -19.20 | 111.53 | 0.3444 | 477.0 | 569.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -1.90 | 105.11 | -19.79 | 75.88 | 0.3505 | 7.0 | -5.8 | |
| 1.64 | 2.24 | 0.87 | 1.19 | -2.96 | 104.90 | -20.00 | 78.98 | 0.3495 | 4.6 | 2.0 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -7.89 | 102.66 | -22.24 | 93.22 | 0.3771 | -873.0 | -778.4 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -10.96 | 102.09 | -22.81 | 101.14 | 0.3896 | -836.0 | -715.6 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -11.35 | 101.69 | -23.21 | 102.01 | 0.3967 | -753.0 | -614.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
