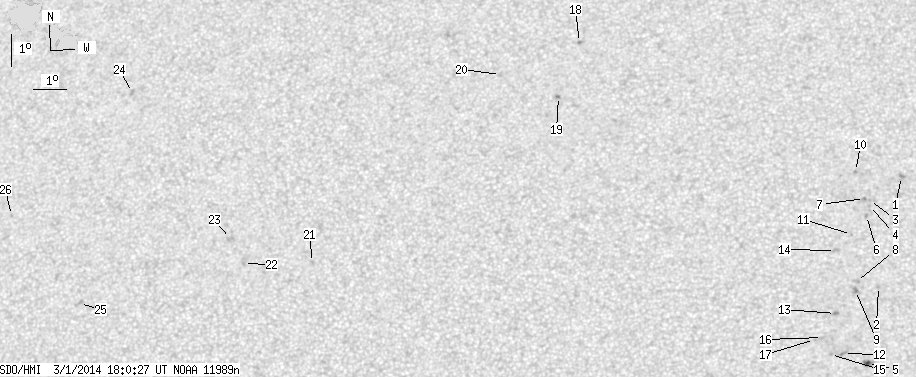

SDO HMI 2014-03-01 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.64 | 54.76 | 0.83 | 28.58 | 8.55 | 121.64 | -1.06 | 317.66 | 0.3117 | -457.2 | -326.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.85 | 0.00 | 1.49 | 10.58 | 129.79 | 7.10 | 338.27 | 0.3296 | -912.0 | -749.5 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 7.17 | 129.03 | 6.33 | 336.16 | 0.2721 | -803.0 | -685.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 9.82 | 128.80 | 6.11 | 340.27 | 0.3120 | -661.0 | -579.3 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 9.67 | 128.80 | 6.11 | 340.10 | 0.3095 | -826.0 | -682.8 | |
| 1.64 | 5.09 | 0.83 | 2.59 | 4.82 | 128.67 | 5.97 | 333.48 | 0.2334 | -1142.8 | -836.4 | |
| 0.00 | 1.55 | 0.00 | 0.81 | 9.36 | 128.70 | 6.01 | 340.05 | 0.3041 | -942.0 | -749.8 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 9.88 | 128.65 | 5.96 | 340.78 | 0.3121 | -918.0 | -854.3 | |
| 0.00 | 2.76 | 0.00 | 1.42 | 7.32 | 128.37 | 5.68 | 338.61 | 0.2701 | -523.0 | -452.6 | |
| 0.00 | 2.85 | 0.00 | 1.46 | 7.04 | 128.33 | 5.64 | 338.35 | 0.2656 | -1072.0 | -912.0 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 10.72 | 128.40 | 5.70 | 342.38 | 0.3240 | -865.0 | -716.8 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 8.76 | 128.24 | 5.55 | 340.83 | 0.2922 | -871.0 | -667.7 | |
| 0.00 | 2.50 | 0.00 | 1.27 | 5.11 | 127.95 | 5.26 | 336.81 | 0.2329 | -841.0 | -712.1 | |
| 0.00 | 2.59 | 0.00 | 1.32 | 6.33 | 127.73 | 5.03 | 339.55 | 0.2507 | -1124.0 | -886.4 | |
| 0.00 | 2.93 | 0.00 | 1.51 | 8.26 | 127.75 | 5.06 | 341.88 | 0.2816 | -731.0 | -630.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 5.08 | 127.56 | 4.87 | 338.31 | 0.2298 | -989.0 | -793.7 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 5.59 | 127.33 | 4.64 | 340.03 | 0.2366 | -736.0 | -586.2 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 5.53 | 127.09 | 4.40 | 340.91 | 0.2342 | -677.0 | -519.0 | |
| 0.00 | 1.81 | 0.00 | 0.97 | 14.78 | 120.01 | -2.69 | 6.90 | 0.3788 | -850.0 | -688.0 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 13.07 | 119.38 | -3.31 | 9.22 | 0.3526 | -924.0 | -784.0 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 13.78 | 117.60 | -5.10 | 13.55 | 0.3698 | -683.0 | -576.5 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 8.01 | 112.00 | -10.70 | 35.20 | 0.3203 | 907.0 | 592.8 | |
| 0.00 | 1.81 | 0.00 | 0.95 | 8.04 | 109.88 | -12.81 | 40.17 | 0.3419 | 913.0 | 644.0 | |
| 0.00 | 3.79 | 0.00 | 2.01 | 8.83 | 109.46 | -13.24 | 39.65 | 0.3562 | 729.0 | 631.0 | |
| 0.00 | 2.93 | 0.00 | 1.62 | 13.51 | 106.14 | -16.55 | 38.45 | 0.4474 | 846.0 | 663.6 | |
| 0.00 | 3.45 | 0.00 | 1.85 | 6.99 | 104.82 | -17.87 | 51.82 | 0.3892 | 888.0 | 655.8 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 9.81 | 102.52 | -20.17 | 49.99 | 0.4455 | 804.0 | 649.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
