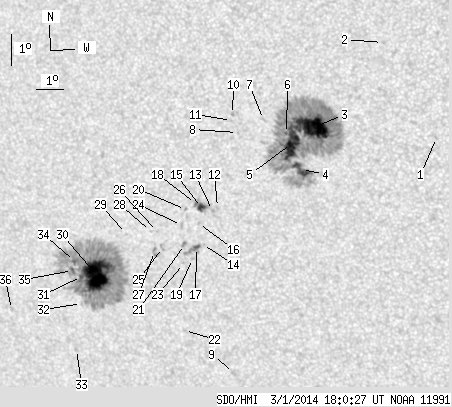

SDO HMI 2014-03-01 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 144.54 | 756.74 | 85.91 | 452.90 | -24.40 | 92.13 | -30.57 | 124.06 | 0.5582 | 110.2 | -17.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.81 | -22.79 | 101.05 | -21.64 | 129.13 | 0.4402 | 637.0 | 482.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -19.81 | 99.67 | -23.02 | 121.72 | 0.4343 | 710.0 | 536.8 | |
| 46.05 | 388.00 | 26.12 | 221.06 | -22.27 | 96.79 | -25.91 | 123.87 | 0.4890 | 1247.3 | 382.2 | |
| 10.35 | -3.00 | 5.94 | -3.00 | -23.54 | 96.12 | -26.57 | 125.57 | 0.5061 | 930.4 | 999999 | |
| 28.29 | -3.00 | 16.18 | -3.00 | -22.72 | 95.94 | -26.75 | 123.97 | 0.5027 | 939.2 | 999999 | |
| 0.60 | -3.00 | 0.35 | -3.00 | -22.41 | 95.83 | -26.87 | 123.31 | 0.5020 | 596.9 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -21.93 | 95.10 | -27.60 | 121.88 | 0.5081 | 541.0 | 469.3 | |
| 0.00 | 0.34 | 0.00 | 0.20 | -22.28 | 94.07 | -28.62 | 121.72 | 0.5232 | 551.0 | 531.5 | |
| 0.00 | 2.50 | 0.00 | 1.55 | -29.74 | 91.82 | -30.88 | 131.81 | 0.6000 | -617.0 | -421.2 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -21.72 | 94.02 | -28.68 | 120.70 | 0.5205 | 676.0 | 585.5 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -21.90 | 93.94 | -28.75 | 120.96 | 0.5226 | 522.0 | 488.4 | |
| 0.00 | 1.38 | 0.00 | 0.82 | -24.54 | 92.78 | -29.92 | 124.59 | 0.5533 | -871.0 | -710.9 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -24.62 | 92.57 | -30.13 | 124.57 | 0.5563 | -760.0 | -679.1 | |
| 0.00 | 1.55 | 0.00 | 0.93 | -25.65 | 91.90 | -30.79 | 125.74 | 0.5708 | -597.0 | -576.3 | |
| 4.14 | 12.07 | 2.47 | 7.20 | -24.50 | 92.18 | -30.51 | 124.11 | 0.5602 | 778.6 | 278.3 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -24.99 | 91.93 | -30.76 | 124.72 | 0.5662 | -500.0 | -345.8 | |
| 1.55 | 8.97 | 0.94 | 5.43 | -25.73 | 91.65 | -31.05 | 125.68 | 0.5742 | -960.3 | -694.1 | |
| 0.60 | -15.00 | 0.36 | -15.00 | -24.36 | 91.99 | -30.70 | 123.75 | 0.5616 | 786.9 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -26.06 | 91.39 | -31.30 | 126.02 | 0.5793 | -738.0 | -587.8 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -24.52 | 91.57 | -31.13 | 123.72 | 0.5676 | 696.0 | 463.9 | |
| 0.00 | 2.41 | 0.00 | 1.46 | -25.60 | 91.22 | -31.48 | 125.19 | 0.5784 | -845.0 | -760.8 | |
| 0.00 | 1.21 | 0.00 | 0.75 | -28.29 | 90.36 | -32.33 | 128.66 | 0.6054 | -573.0 | -436.6 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -26.19 | 91.00 | -31.69 | 125.96 | 0.5846 | -523.0 | -426.4 | |
| 0.00 | 2.41 | 0.00 | 1.46 | -25.01 | 91.28 | -31.42 | 124.30 | 0.5740 | -178.0 | -105.7 | |
| 0.00 | 2.93 | 0.00 | 1.79 | -25.64 | 90.35 | -32.34 | 124.67 | 0.5887 | -553.0 | -630.7 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -25.14 | 90.31 | -32.38 | 123.86 | 0.5861 | -687.0 | -649.6 | |
| 0.00 | 2.59 | 0.00 | 1.59 | -25.75 | 90.01 | -32.69 | 124.61 | 0.5933 | -646.0 | -612.8 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -25.12 | 90.04 | -32.65 | 123.66 | 0.5892 | -831.0 | -641.6 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -25.12 | 89.10 | -33.59 | 123.08 | 0.6002 | 226.0 | 268.0 | |
| 48.73 | 312.71 | 30.85 | 197.99 | -26.31 | 87.50 | -35.19 | 123.94 | 0.6250 | -1193.2 | -392.4 | |
| 1.38 | -30.00 | 0.88 | -30.00 | -26.33 | 86.88 | -35.81 | 123.62 | 0.6320 | -409.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.61 | -27.17 | 86.57 | -36.12 | 124.67 | 0.6399 | -408.0 | -378.6 | |
| 0.00 | 1.38 | 0.00 | 0.90 | -28.59 | 85.80 | -36.89 | 126.26 | 0.6560 | -305.0 | -344.3 | |
| 1.21 | -30.00 | 0.77 | -30.00 | -25.84 | 86.77 | -35.92 | 122.85 | 0.6308 | -614.6 | 999999 | |
| 1.64 | -30.00 | 1.05 | -30.00 | -26.12 | 86.59 | -36.10 | 123.15 | 0.6342 | -563.2 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.15 | -27.14 | 83.63 | -39.07 | 123.12 | 0.6719 | -448.0 | -410.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
