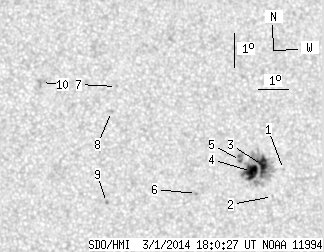

SDO HMI 2014-03-01 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.67 | 85.46 | 13.94 | 48.00 | -7.68 | 151.01 | 28.31 | 267.30 | 0.4724 | 608.6 | 329.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.44 | -7.80 | 152.63 | 29.93 | 266.90 | 0.4971 | 560.0 | 447.2 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -8.63 | 152.31 | 29.62 | 265.23 | 0.4923 | -416.0 | -324.0 | |
| 11.13 | 73.65 | 6.30 | 41.61 | -7.73 | 151.90 | 29.20 | 267.07 | 0.4861 | 903.6 | 501.3 | |
| 12.94 | -3.00 | 7.30 | -3.00 | -7.93 | 151.53 | 28.84 | 266.67 | 0.4805 | 1136.2 | 999999 | |
| 0.60 | -3.00 | 0.34 | -3.00 | -7.63 | 151.13 | 28.44 | 267.32 | 0.4745 | 989.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -8.69 | 149.72 | 27.03 | 265.01 | 0.4528 | -731.0 | -550.9 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -5.65 | 146.88 | 24.19 | 272.29 | 0.4098 | -692.0 | -608.7 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -6.40 | 146.75 | 24.06 | 270.48 | 0.4069 | -645.0 | -493.9 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -9.11 | 146.75 | 24.06 | 263.79 | 0.4066 | 834.0 | 739.9 | |
| 0.00 | 5.43 | 0.00 | 2.90 | -5.65 | 144.45 | 21.76 | 272.86 | 0.3709 | -871.0 | -732.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
