SDO HMI 2014-03-01 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.55 | 41.31 | 0.79 | 21.60 | 9.14 | 121.88 | -0.26 | 343.20 | 0.3167 | -341.2 | -400.3 | |
|
previous
or next observation for the same group /

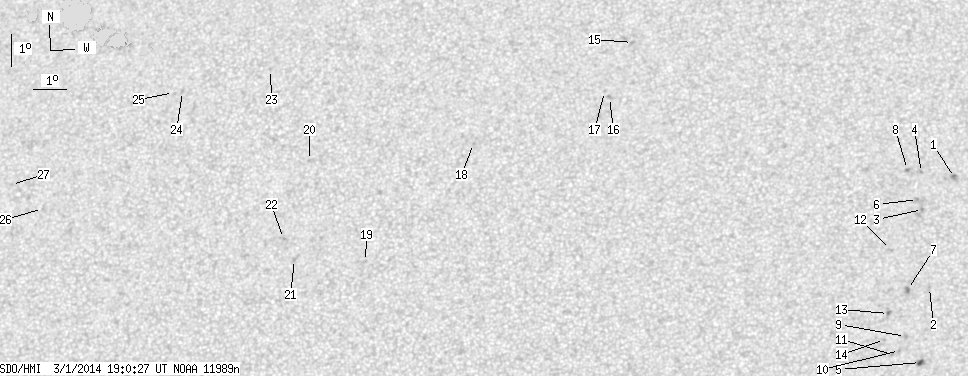

back to the solar disc SDO HMI 2014-03-01 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.50 | 0.00 | 1.31 | 10.56 | 129.85 | 7.71 | 336.56 | 0.3331 | -868.0 | -750.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 7.15 | 129.02 | 6.88 | 334.33 | 0.2756 | -866.0 | -708.3 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 9.55 | 128.86 | 6.71 | 338.16 | 0.3113 | -908.0 | -721.4 | |
| 0.00 | 0.52 | 0.00 | 0.27 | 10.70 | 128.85 | 6.71 | 339.49 | 0.3291 | -776.0 | -634.3 | |
| 1.55 | 3.71 | 0.79 | 1.89 | 4.85 | 128.72 | 6.58 | 331.29 | 0.2387 | -1194.7 | -893.2 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 9.86 | 128.71 | 6.57 | 338.95 | 0.3152 | -1034.0 | -894.6 | |
| 0.00 | 2.85 | 0.00 | 1.46 | 7.08 | 128.36 | 6.22 | 336.42 | 0.2699 | -1094.0 | -915.5 | |
| 0.00 | 1.55 | 0.00 | 0.81 | 10.79 | 128.43 | 6.28 | 340.78 | 0.3281 | -802.0 | -722.0 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 5.64 | 128.28 | 6.14 | 334.38 | 0.2472 | -789.0 | -673.5 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 5.21 | 128.09 | 5.95 | 334.31 | 0.2393 | -966.0 | -698.4 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 5.09 | 127.85 | 5.71 | 335.00 | 0.2356 | -891.0 | -649.2 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 8.30 | 127.86 | 5.72 | 339.72 | 0.2859 | -824.0 | -646.7 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 6.33 | 127.78 | 5.63 | 337.34 | 0.2545 | -1055.0 | -879.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 5.54 | 127.65 | 5.51 | 336.57 | 0.2412 | -866.0 | -694.6 | |
| 0.00 | 2.07 | 0.00 | 1.11 | 14.77 | 120.07 | -2.07 | 5.32 | 0.3777 | -815.0 | -673.1 | |
| 0.00 | 2.50 | 0.00 | 1.32 | 13.03 | 119.39 | -2.76 | 7.71 | 0.3506 | -937.0 | -743.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 13.22 | 119.23 | -2.91 | 8.06 | 0.3541 | -580.0 | -479.2 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 11.63 | 115.26 | -6.88 | 20.01 | 0.3444 | -814.0 | -684.4 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 8.03 | 112.06 | -10.08 | 33.59 | 0.3148 | 865.0 | 566.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 11.21 | 110.24 | -11.91 | 32.84 | 0.3748 | 723.0 | 567.2 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 8.15 | 109.88 | -12.26 | 38.72 | 0.3375 | 984.0 | 757.1 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 8.80 | 109.52 | -12.62 | 38.33 | 0.3496 | 846.0 | 657.7 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 14.12 | 108.88 | -13.27 | 31.67 | 0.4257 | 681.0 | 578.0 | |
| 0.00 | 1.55 | 0.00 | 0.86 | 13.52 | 106.13 | -16.01 | 37.51 | 0.4423 | 845.0 | 651.2 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 13.50 | 105.85 | -16.30 | 38.03 | 0.4448 | 300.0 | 395.5 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 10.02 | 101.89 | -20.25 | 49.72 | 0.4486 | 712.0 | 597.7 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 10.82 | 100.84 | -21.31 | 49.83 | 0.4690 | 732.0 | 571.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
