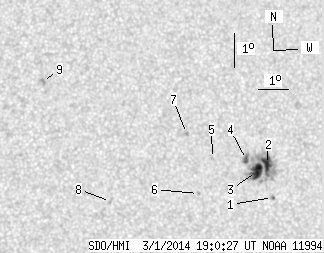

SDO HMI 2014-03-01 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.45 | 79.08 | 13.33 | 44.75 | -7.80 | 151.21 | 29.07 | 266.95 | 0.4840 | 735.9 | 411.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.34 | 1.38 | 0.20 | 0.79 | -8.69 | 152.22 | 30.08 | 265.11 | 0.4993 | -330.2 | -372.9 | |
| 8.54 | 68.99 | 4.86 | 39.21 | -7.73 | 151.93 | 29.79 | 267.06 | 0.4950 | 917.2 | 500.0 | |
| 12.16 | -2.00 | 6.90 | -2.00 | -7.95 | 151.61 | 29.46 | 266.61 | 0.4900 | 1123.2 | 999999 | |
| 2.41 | -2.00 | 1.37 | -2.00 | -7.62 | 151.24 | 29.09 | 267.31 | 0.4845 | 1017.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -7.66 | 150.08 | 27.94 | 267.27 | 0.4668 | 692.0 | 505.5 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -8.72 | 149.68 | 27.54 | 264.97 | 0.4607 | -524.0 | -430.4 | |
| 0.00 | 1.55 | 0.00 | 0.86 | -6.97 | 149.15 | 27.01 | 268.84 | 0.4528 | 875.0 | 637.2 | |
| 0.00 | 2.41 | 0.00 | 1.31 | -9.12 | 146.76 | 24.62 | 263.85 | 0.4155 | 840.0 | 580.0 | |
| 0.00 | 2.85 | 0.00 | 1.52 | -5.66 | 144.35 | 22.21 | 272.73 | 0.3782 | -862.0 | -813.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
