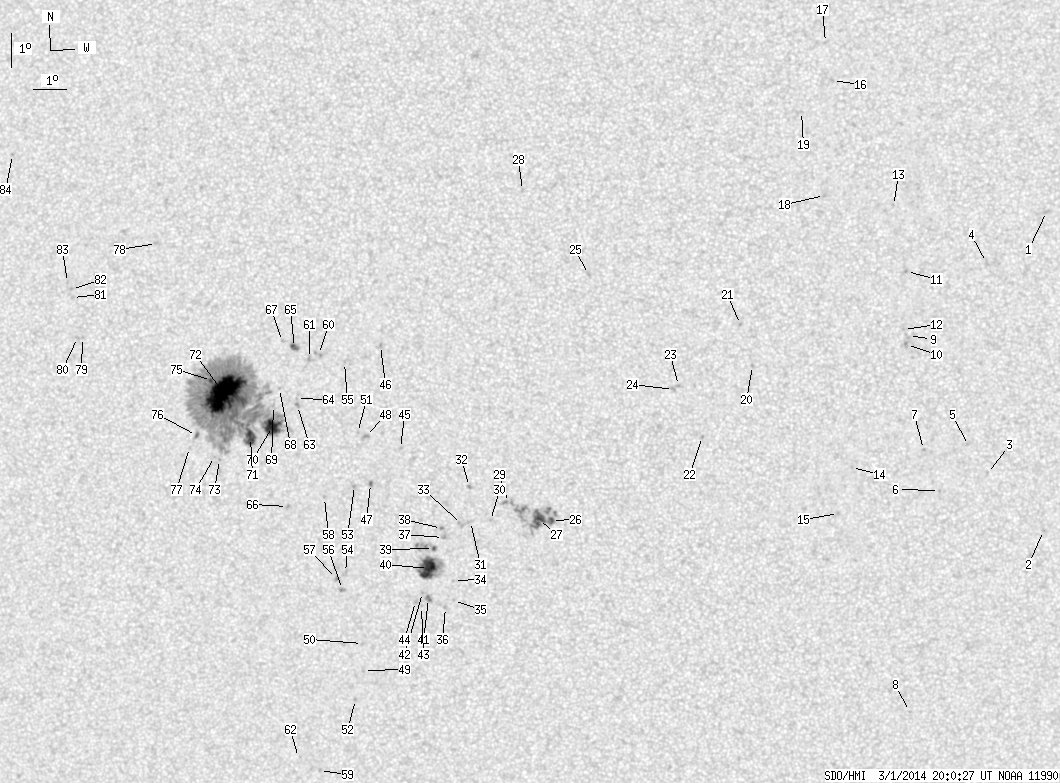

SDO HMI 2014-03-01 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.52 | 750.48 | 72.52 | 384.54 | -13.70 | 109.26 | -12.33 | 124.32 | 0.2520 | 195.5 | 115.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.41 | 0.00 | 1.22 | -7.41 | 131.82 | 10.22 | 268.32 | 0.1769 | 698.0 | 598.0 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -16.92 | 132.09 | 10.50 | 225.64 | 0.2449 | 751.0 | 561.0 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -15.25 | 130.25 | 8.66 | 225.88 | 0.2033 | 909.0 | 592.1 | |
| 0.00 | 2.16 | 0.00 | 1.08 | -8.96 | 130.03 | 8.44 | 257.71 | 0.1490 | 880.0 | 656.8 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -14.42 | 129.63 | 8.04 | 226.99 | 0.1861 | 556.0 | 445.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -15.78 | 128.78 | 7.19 | 218.82 | 0.1930 | 836.0 | 656.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -14.56 | 128.24 | 6.65 | 221.13 | 0.1713 | 838.0 | 731.8 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -22.50 | 128.10 | 6.51 | 201.63 | 0.2855 | 717.0 | 596.9 | |
| 0.00 | 0.60 | 0.00 | 0.30 | -11.16 | 127.70 | 6.11 | 236.43 | 0.1259 | 214.0 | 313.6 | |
| 0.00 | 2.07 | 0.00 | 1.03 | -11.43 | 127.65 | 6.06 | 234.42 | 0.1277 | 973.0 | 873.5 | |
| 0.00 | 1.29 | 0.00 | 0.64 | -9.26 | 127.61 | 6.02 | 250.73 | 0.1101 | 932.0 | 813.1 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -10.98 | 127.55 | 5.96 | 236.97 | 0.1221 | 889.0 | 696.6 | |
| 0.00 | 1.29 | 0.00 | 0.64 | -7.30 | 127.19 | 5.60 | 268.84 | 0.0972 | 742.0 | 598.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -15.12 | 126.04 | 4.45 | 208.52 | 0.1574 | 859.0 | 581.1 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -16.50 | 125.66 | 4.07 | 202.85 | 0.1761 | 901.0 | 703.7 | |
| 0.00 | 1.55 | 0.00 | 0.77 | -3.61 | 125.34 | 3.75 | 313.93 | 0.0910 | 902.0 | 644.2 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -2.48 | 125.13 | 3.54 | 323.25 | 0.1035 | 892.0 | 606.3 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -7.03 | 125.11 | 3.52 | 273.06 | 0.0614 | 845.0 | 724.2 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -4.54 | 124.42 | 2.83 | 313.59 | 0.0682 | 821.0 | 450.1 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -12.09 | 122.97 | 1.38 | 195.56 | 0.0884 | 832.0 | 582.7 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -10.87 | 122.61 | 1.02 | 195.33 | 0.0662 | 956.0 | 717.7 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -14.21 | 121.45 | -0.14 | 178.89 | 0.1221 | 967.0 | 798.2 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -12.68 | 120.72 | -0.87 | 171.18 | 0.0967 | 957.0 | 784.6 | |
| 0.00 | 2.16 | 0.00 | 1.07 | -12.80 | 120.57 | -1.02 | 169.88 | 0.0992 | 891.0 | 751.5 | |
| 0.00 | 2.24 | 0.00 | 1.11 | -9.36 | 118.03 | -3.56 | 121.47 | 0.0722 | 955.0 | 667.4 | |
| 1.90 | 48.21 | 0.96 | 24.30 | -16.70 | 116.76 | -4.83 | 153.95 | 0.1845 | 985.6 | 825.0 | |
| 10.09 | -26.00 | 5.09 | -26.00 | -16.66 | 116.36 | -5.23 | 152.02 | 0.1871 | 1120.9 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.64 | -6.85 | 116.07 | -5.52 | 86.38 | 0.0961 | 775.0 | 620.2 | |
| 0.00 | 4.40 | 0.00 | 2.22 | -16.14 | 115.44 | -6.15 | 146.52 | 0.1874 | 661.0 | 770.1 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -16.67 | 114.86 | -6.73 | 145.76 | 0.2004 | -820.0 | -560.3 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -16.69 | 114.24 | -7.35 | 143.46 | 0.2069 | -489.0 | -402.0 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -15.64 | 114.25 | -7.34 | 140.11 | 0.1928 | -1078.0 | -807.0 | |
| 0.00 | 3.36 | 0.00 | 1.70 | -16.78 | 113.95 | -7.64 | 142.68 | 0.2109 | -1071.0 | -832.7 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -18.46 | 113.62 | -7.97 | 146.15 | 0.2371 | -715.0 | -498.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -19.07 | 113.59 | -8.00 | 147.50 | 0.2458 | -859.0 | -647.9 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -19.28 | 113.33 | -8.26 | 147.14 | 0.2511 | -803.0 | -693.6 | |
| 0.00 | 2.16 | 0.00 | 1.09 | -17.16 | 113.37 | -8.22 | 141.82 | 0.2220 | -1100.0 | -932.0 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -16.89 | 113.32 | -8.27 | 140.85 | 0.2190 | 736.0 | 536.2 | |
| 0.86 | 11.64 | 0.44 | 5.93 | -17.48 | 113.04 | -8.55 | 141.68 | 0.2297 | -1129.4 | -846.4 | |
| 20.78 | 42.52 | 10.60 | 21.68 | -18.08 | 112.85 | -8.74 | 142.73 | 0.2395 | -1199.5 | -599.5 | |
| 0.00 | 3.62 | 0.00 | 1.85 | -18.99 | 112.80 | -8.79 | 144.88 | 0.2522 | -1230.0 | -975.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -18.81 | 112.62 | -8.97 | 143.88 | 0.2514 | -834.0 | -708.9 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -19.23 | 112.57 | -9.02 | 144.74 | 0.2577 | -675.0 | -515.5 | |
| 0.00 | 2.41 | 0.00 | 1.24 | -19.07 | 112.39 | -9.20 | 143.84 | 0.2574 | -885.0 | -697.1 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -14.46 | 112.15 | -9.44 | 128.77 | 0.2046 | -826.0 | -673.4 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -11.37 | 111.66 | -9.93 | 113.68 | 0.1855 | 1006.0 | 753.1 | |
| 0.52 | 2.24 | 0.26 | 1.14 | -15.49 | 111.16 | -10.43 | 129.87 | 0.2283 | -1148.8 | -902.0 | |
| 0.00 | 3.45 | 0.00 | 1.75 | -14.08 | 111.08 | -10.51 | 124.43 | 0.2155 | -1050.0 | -779.5 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -21.14 | 110.58 | -11.01 | 143.71 | 0.3023 | -594.0 | -618.4 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -20.31 | 110.61 | -10.98 | 141.99 | 0.2914 | -855.0 | -724.3 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.95 | 110.84 | -10.75 | 123.36 | 0.2178 | -672.0 | -567.9 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -22.02 | 110.25 | -11.34 | 144.71 | 0.3170 | -779.0 | -619.0 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -15.53 | 110.66 | -10.93 | 128.77 | 0.2354 | -972.0 | -720.3 | |
| 0.00 | 3.28 | 0.00 | 1.68 | -18.15 | 110.22 | -11.37 | 135.66 | 0.2694 | -869.0 | -760.2 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -11.85 | 110.53 | -11.06 | 113.84 | 0.2062 | 657.0 | 462.4 | |
| 0.00 | 2.24 | 0.00 | 1.16 | -18.66 | 110.08 | -11.51 | 136.71 | 0.2768 | -996.0 | -855.7 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -18.32 | 109.92 | -11.67 | 135.42 | 0.2749 | -984.0 | -876.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -15.87 | 109.70 | -11.89 | 127.64 | 0.2515 | -871.0 | -772.2 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -24.18 | 108.86 | -12.73 | 145.67 | 0.3581 | -890.0 | -785.5 | |
| 0.00 | 2.33 | 0.00 | 1.18 | -11.59 | 109.73 | -11.86 | 111.38 | 0.2171 | 904.0 | 842.0 | |
| 0.00 | 2.16 | 0.00 | 1.10 | -11.71 | 109.45 | -12.14 | 111.44 | 0.2222 | 769.0 | 663.4 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -23.76 | 108.20 | -13.39 | 143.62 | 0.3589 | -445.0 | -523.7 | |
| 0.00 | 2.33 | 0.00 | 1.19 | -13.10 | 109.01 | -12.58 | 116.38 | 0.2379 | -1045.0 | -826.8 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -12.89 | 108.99 | -12.60 | 115.53 | 0.2368 | -920.0 | -634.5 | |
| 2.24 | 5.35 | 1.14 | 2.72 | -11.37 | 109.00 | -12.59 | 109.38 | 0.2276 | 1071.6 | 809.3 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -16.11 | 108.51 | -13.08 | 125.93 | 0.2697 | -972.0 | -820.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -11.18 | 108.64 | -12.95 | 108.14 | 0.2325 | 903.0 | 584.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -12.57 | 108.47 | -13.12 | 113.52 | 0.2427 | -818.0 | -585.3 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -13.07 | 108.26 | -13.33 | 115.10 | 0.2492 | -157.0 | -164.4 | |
| 17.42 | 526.68 | 8.92 | 270.81 | -13.70 | 108.19 | -13.40 | 117.28 | 0.2545 | -1238.2 | 164.6 | |
| 10.78 | -70.00 | 5.54 | -70.00 | -14.01 | 107.48 | -14.11 | 117.24 | 0.2673 | -1115.8 | 999999 | |
| 74.60 | -70.00 | 38.37 | -70.00 | -12.67 | 106.74 | -14.85 | 111.59 | 0.2701 | 1482.0 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -14.63 | 106.45 | -15.14 | 117.79 | 0.2869 | -742.0 | -568.1 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -14.54 | 106.30 | -15.29 | 117.28 | 0.2885 | -517.0 | -420.8 | |
| 1.64 | -70.00 | 0.84 | -70.00 | -12.27 | 106.36 | -15.23 | 109.76 | 0.2740 | 860.2 | 999999 | |
| 0.69 | 2.85 | 0.36 | 1.47 | -13.89 | 105.78 | -15.81 | 114.53 | 0.2921 | 828.9 | 619.6 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -14.24 | 105.53 | -16.06 | 115.33 | 0.2980 | 548.0 | 360.4 | |
| 0.00 | 2.16 | 0.00 | 1.11 | -8.14 | 104.85 | -16.74 | 94.25 | 0.2872 | -807.0 | -640.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -10.84 | 102.36 | -19.24 | 102.18 | 0.3325 | -949.0 | -668.2 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -10.83 | 102.20 | -19.40 | 102.09 | 0.3350 | -726.0 | -608.9 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -9.63 | 102.11 | -19.48 | 98.50 | 0.3339 | -756.0 | -593.7 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -9.40 | 102.10 | -19.49 | 97.78 | 0.3338 | -812.0 | -648.1 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -9.18 | 101.98 | -19.61 | 97.11 | 0.3354 | -807.0 | -585.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -5.31 | 100.41 | -21.18 | 86.02 | 0.3622 | -816.0 | -669.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
