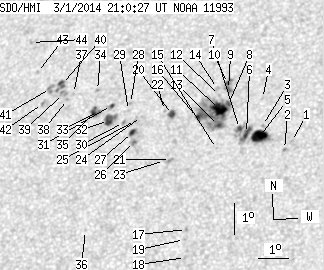

SDO HMI 2014-03-01 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.85 | 197.84 | 32.54 | 113.59 | 16.00 | 101.44 | -19.60 | 39.63 | 0.5064 | 35.7 | 74.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.77 | 15.07 | 105.01 | -16.03 | 35.43 | 0.4619 | -777.0 | -621.2 | |
| 0.00 | 1.72 | 0.00 | 0.96 | 14.83 | 104.80 | -16.24 | 36.10 | 0.4607 | -785.0 | -703.2 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 15.63 | 104.03 | -17.01 | 36.33 | 0.4775 | -405.0 | -288.3 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 16.50 | 103.95 | -17.09 | 35.35 | 0.4889 | -655.0 | -546.6 | |
| 13.63 | 18.46 | 7.66 | 10.37 | 15.28 | 103.96 | -17.08 | 36.89 | 0.4738 | -1035.5 | -618.5 | |
| 4.05 | 19.75 | 2.28 | 11.14 | 15.39 | 103.53 | -17.50 | 37.42 | 0.4792 | -816.2 | -555.9 | |
| 1.47 | -6.00 | 0.83 | -6.00 | 15.56 | 103.29 | -17.75 | 37.58 | 0.4835 | -761.1 | 999999 | |
| 1.29 | 72.79 | 0.74 | 41.53 | 16.39 | 102.86 | -18.18 | 37.19 | 0.4973 | -815.4 | -68.8 | |
| 1.21 | 5.95 | 0.69 | 3.41 | 16.84 | 102.81 | -18.22 | 36.68 | 0.5031 | -872.0 | -662.0 | |
| 0.86 | -9.00 | 0.49 | -9.00 | 17.04 | 102.76 | -18.28 | 36.52 | 0.5059 | -732.8 | 999999 | |
| 11.13 | -8.00 | 6.35 | -8.00 | 16.20 | 102.58 | -18.46 | 37.83 | 0.4977 | -1070.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 16.66 | 102.54 | -18.50 | 37.32 | 0.5034 | -200.0 | -158.0 | |
| 2.41 | -8.00 | 1.37 | -8.00 | 15.69 | 102.60 | -18.44 | 38.48 | 0.4914 | 426.2 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.34 | 16.89 | 102.45 | -18.59 | 37.17 | 0.5070 | 187.0 | 128.1 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 14.95 | 102.60 | -18.44 | 39.46 | 0.4828 | -520.0 | -407.6 | |
| 1.64 | -8.00 | 0.94 | -8.00 | 15.98 | 101.89 | -19.15 | 39.16 | 0.5015 | 883.0 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 12.41 | 101.84 | -19.20 | 44.29 | 0.4619 | 854.0 | 741.5 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 11.53 | 101.87 | -19.17 | 45.63 | 0.4519 | 726.0 | 585.7 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 12.10 | 101.80 | -19.24 | 44.84 | 0.4589 | 728.0 | 638.2 | |
| 2.85 | 4.48 | 1.64 | 2.58 | 16.11 | 101.05 | -19.99 | 40.18 | 0.5111 | 1025.5 | 823.2 | |
| 0.00 | 1.81 | 0.00 | 1.03 | 14.66 | 101.13 | -19.91 | 42.02 | 0.4941 | -722.0 | -587.3 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 16.25 | 100.77 | -20.27 | 40.38 | 0.5154 | 690.0 | 468.2 | |
| 0.00 | 1.38 | 0.00 | 0.79 | 14.64 | 100.94 | -20.10 | 42.33 | 0.4958 | -508.0 | -425.6 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 16.09 | 100.03 | -21.01 | 41.61 | 0.5209 | 832.0 | 728.8 | |
| 0.00 | 2.33 | 0.00 | 1.35 | 15.97 | 99.84 | -21.19 | 42.01 | 0.5214 | 869.0 | 662.5 | |
| 0.52 | 3.54 | 0.30 | 2.04 | 15.30 | 99.88 | -21.15 | 42.87 | 0.5137 | 1040.3 | 827.5 | |
| 2.50 | 3.71 | 1.45 | 2.14 | 15.59 | 99.79 | -21.25 | 42.61 | 0.5178 | 946.7 | 771.3 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 16.54 | 99.61 | -21.42 | 41.58 | 0.5297 | 833.0 | 710.8 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 16.31 | 99.57 | -21.47 | 41.93 | 0.5277 | 805.0 | 560.2 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 15.93 | 99.45 | -21.59 | 42.60 | 0.5248 | 782.0 | 518.5 | |
| 1.21 | 3.36 | 0.71 | 1.97 | 16.50 | 98.98 | -22.05 | 42.45 | 0.5356 | -315.1 | 70.5 | |
| 5.61 | 10.09 | 3.27 | 5.89 | 16.02 | 98.94 | -22.10 | 43.14 | 0.5309 | 919.2 | 749.1 | |
| 0.52 | 7.33 | 0.30 | 4.30 | 16.33 | 98.57 | -22.47 | 43.20 | 0.5379 | 925.2 | 684.9 | |
| 0.00 | 1.81 | 0.00 | 1.07 | 17.02 | 98.45 | -22.59 | 42.46 | 0.5463 | 710.0 | 523.6 | |
| 3.28 | -33.00 | 1.92 | -33.00 | 16.30 | 98.44 | -22.60 | 43.40 | 0.5389 | 906.1 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 12.54 | 98.54 | -22.50 | 48.64 | 0.4997 | 552.0 | 401.9 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 16.96 | 97.65 | -23.39 | 43.52 | 0.5536 | 695.0 | 564.2 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 16.78 | 97.47 | -23.57 | 43.97 | 0.5536 | 818.0 | 680.7 | |
| 0.00 | 3.62 | 0.00 | 2.16 | 16.98 | 97.31 | -23.73 | 43.91 | 0.5572 | 897.0 | 846.6 | |
| 2.67 | 6.99 | 1.60 | 4.17 | 17.28 | 97.20 | -23.84 | 43.65 | 0.5613 | 830.5 | 728.5 | |
| 0.00 | 4.92 | 0.00 | 2.94 | 17.17 | 96.84 | -24.20 | 44.22 | 0.5638 | 618.0 | 579.6 | |
| 0.00 | 2.33 | 0.00 | 1.39 | 16.69 | 96.63 | -24.41 | 45.08 | 0.5612 | 693.0 | 601.1 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 17.72 | 96.31 | -24.73 | 44.12 | 0.5745 | 527.0 | 448.8 | |
| 0.00 | 1.12 | 0.00 | 0.69 | 18.73 | 95.95 | -25.09 | 43.28 | 0.5880 | 635.0 | 514.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
