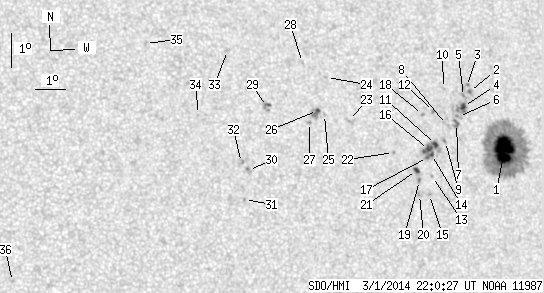

SDO HMI 2014-03-01 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.97 | 281.99 | 30.10 | 165.66 | -1.32 | 152.46 | 31.97 | 279.09 | 0.5377 | -582.6 | -267.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.62 | 190.45 | 21.20 | 113.40 | -1.43 | 153.77 | 33.28 | 278.34 | 0.5566 | -1154.3 | -324.9 | |
| 0.52 | 2.85 | 0.31 | 1.68 | 0.22 | 152.52 | 32.04 | 281.77 | 0.5440 | -777.8 | -585.0 | |
| 0.00 | 2.16 | 0.00 | 1.27 | 0.36 | 152.42 | 31.93 | 282.07 | 0.5430 | -389.0 | -615.9 | |
| 2.50 | 7.85 | 1.47 | 4.61 | -0.25 | 152.31 | 31.82 | 281.02 | 0.5394 | -901.1 | -795.2 | |
| 0.00 | 2.07 | 0.00 | 1.22 | 0.05 | 152.31 | 31.82 | 281.56 | 0.5404 | -780.0 | -734.5 | |
| 0.00 | 2.33 | 0.00 | 1.36 | -0.56 | 152.14 | 31.65 | 280.53 | 0.5358 | -1015.0 | -737.9 | |
| 1.29 | 4.05 | 0.76 | 2.37 | -0.77 | 152.07 | 31.58 | 280.17 | 0.5341 | -817.5 | -677.4 | |
| 0.00 | 3.11 | 0.00 | 1.81 | -0.82 | 151.72 | 31.23 | 280.21 | 0.5289 | -741.0 | -659.6 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -1.33 | 151.69 | 31.20 | 279.27 | 0.5269 | -707.0 | -649.1 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 0.25 | 151.62 | 31.13 | 282.23 | 0.5311 | -646.0 | -556.3 | |
| 2.16 | 19.41 | 1.25 | 11.23 | -1.45 | 151.35 | 30.86 | 279.20 | 0.5215 | -929.4 | -775.0 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -0.46 | 151.27 | 30.78 | 281.07 | 0.5235 | -859.0 | -760.0 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -2.41 | 151.26 | 30.77 | 277.41 | 0.5175 | -723.0 | -567.5 | |
| 1.29 | -11.00 | 0.75 | -11.00 | -1.75 | 151.21 | 30.72 | 278.67 | 0.5186 | -1005.3 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -2.95 | 151.17 | 30.68 | 276.39 | 0.5149 | -658.0 | -567.8 | |
| 4.14 | -11.00 | 2.39 | -11.00 | -1.61 | 151.11 | 30.62 | 278.98 | 0.5175 | -1039.5 | 999999 | |
| 0.60 | -11.00 | 0.35 | -11.00 | -1.85 | 151.07 | 30.59 | 278.53 | 0.5163 | -981.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -0.58 | 150.89 | 30.40 | 281.02 | 0.5176 | -769.0 | -661.3 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -2.55 | 150.81 | 30.33 | 277.27 | 0.5106 | -918.0 | -754.1 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -2.97 | 150.82 | 30.34 | 276.46 | 0.5097 | -721.0 | -618.4 | |
| 1.81 | 3.19 | 1.04 | 1.84 | -2.26 | 150.70 | 30.22 | 277.88 | 0.5097 | -851.4 | -663.8 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -1.77 | 149.91 | 29.42 | 279.13 | 0.4993 | -813.0 | -703.3 | |
| 0.00 | 3.62 | 0.00 | 2.04 | -0.91 | 148.40 | 27.92 | 281.53 | 0.4797 | 605.0 | 494.8 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 0.33 | 147.63 | 27.14 | 284.48 | 0.4731 | 611.0 | 530.1 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -0.78 | 147.56 | 27.08 | 282.23 | 0.4677 | 624.0 | 489.9 | |
| 1.04 | 7.85 | 0.58 | 4.38 | -0.67 | 147.33 | 26.84 | 282.57 | 0.4645 | 874.0 | 833.3 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -1.04 | 147.07 | 26.58 | 281.93 | 0.4591 | 922.0 | 703.2 | |
| 0.00 | 1.47 | 0.00 | 0.82 | 0.74 | 146.83 | 26.35 | 285.80 | 0.4631 | 508.0 | 480.1 | |
| 0.00 | 4.83 | 0.00 | 2.66 | -0.64 | 145.64 | 25.16 | 283.60 | 0.4392 | 1006.0 | 809.6 | |
| 0.00 | 2.59 | 0.00 | 1.41 | -2.58 | 145.08 | 24.59 | 279.51 | 0.4233 | 703.0 | 591.2 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -3.45 | 144.96 | 24.48 | 277.52 | 0.4189 | 727.0 | 604.3 | |
| 0.00 | 2.24 | 0.00 | 1.22 | -2.36 | 144.84 | 24.36 | 280.15 | 0.4204 | 780.0 | 775.8 | |
| 0.00 | 1.98 | 0.00 | 1.09 | 0.97 | 144.37 | 23.89 | 288.04 | 0.4276 | 670.0 | 510.1 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -1.00 | 143.43 | 22.94 | 284.21 | 0.4038 | 764.0 | 686.3 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 1.05 | 141.74 | 21.25 | 290.51 | 0.3885 | 769.0 | 684.2 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -6.21 | 137.64 | 17.15 | 272.39 | 0.2948 | 739.0 | 557.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
