SDO HMI 2014-03-01 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168.88 | 855.07 | 98.77 | 501.09 | -24.40 | 92.11 | -28.38 | 125.71 | 0.5321 | 25.5 | -28.1 | |
|
previous
or next observation for the same group /

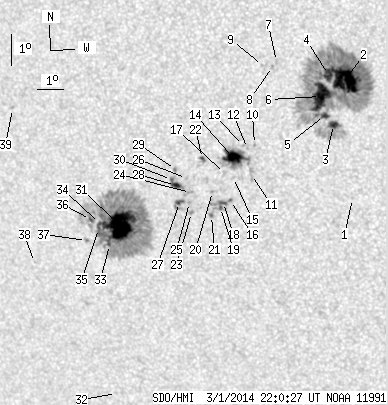

back to the solar disc SDO HMI 2014-03-01 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.20 | -26.00 | 96.31 | -24.18 | 132.02 | 0.4975 | 655.0 | 537.2 | |
| 37.35 | 423.52 | 20.83 | 237.37 | -22.34 | 96.76 | -23.73 | 126.01 | 0.4620 | 1266.9 | 380.5 | |
| 4.83 | -2.00 | 2.72 | -2.00 | -23.67 | 96.12 | -24.37 | 127.82 | 0.4803 | 964.2 | 999999 | |
| 6.81 | -2.00 | 3.81 | -2.00 | -22.13 | 96.24 | -24.25 | 125.10 | 0.4669 | 962.5 | 999999 | |
| 3.11 | -2.00 | 1.75 | -2.00 | -23.38 | 95.86 | -24.63 | 127.03 | 0.4812 | 908.5 | 999999 | |
| 30.79 | -2.00 | 17.33 | -2.00 | -22.79 | 95.83 | -24.66 | 125.93 | 0.4770 | 927.4 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -21.64 | 94.49 | -26.00 | 122.61 | 0.4856 | 766.0 | 692.1 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -21.78 | 94.32 | -26.17 | 122.73 | 0.4888 | 793.0 | 688.1 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -21.73 | 93.97 | -26.51 | 122.35 | 0.4929 | 565.0 | 493.3 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -24.14 | 93.16 | -27.33 | 125.94 | 0.5195 | -741.0 | -616.2 | |
| 0.00 | 5.18 | 0.00 | 3.02 | -25.06 | 92.83 | -27.66 | 127.20 | 0.5300 | -570.0 | -657.7 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -24.25 | 92.88 | -27.61 | 125.89 | 0.5236 | -710.0 | -601.9 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -24.15 | 92.76 | -27.73 | 125.61 | 0.5244 | -674.0 | -495.0 | |
| 17.34 | 42.78 | 10.13 | 24.99 | -24.50 | 92.30 | -28.19 | 125.83 | 0.5323 | 793.4 | -18.6 | |
| 0.00 | 1.55 | 0.00 | 0.91 | -25.12 | 92.15 | -28.34 | 126.73 | 0.5385 | -274.0 | -206.6 | |
| 0.43 | 17.51 | 0.25 | 10.39 | -25.83 | 91.85 | -28.64 | 127.64 | 0.5470 | -906.6 | -721.9 | |
| 0.00 | 2.93 | 0.00 | 1.72 | -24.97 | 91.85 | -28.64 | 126.26 | 0.5410 | -224.0 | -158.3 | |
| 1.81 | -16.00 | 1.07 | -16.00 | -25.87 | 91.57 | -28.92 | 127.49 | 0.5505 | -970.5 | 999999 | |
| 0.95 | -16.00 | 0.56 | -16.00 | -26.02 | 91.42 | -29.07 | 127.61 | 0.5533 | -895.5 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -25.51 | 91.26 | -29.23 | 126.66 | 0.5516 | -677.0 | -552.2 | |
| 0.60 | -16.00 | 0.36 | -16.00 | -26.25 | 91.01 | -29.48 | 127.65 | 0.5596 | -738.0 | 999999 | |
| 1.29 | 3.11 | 0.76 | 1.83 | -24.46 | 91.15 | -29.33 | 124.88 | 0.5457 | 737.4 | 482.4 | |
| 0.00 | 2.07 | 0.00 | 1.24 | -26.11 | 90.29 | -30.20 | 126.88 | 0.5669 | -740.0 | -643.2 | |
| 0.00 | 2.07 | 0.00 | 1.24 | -25.49 | 90.43 | -30.06 | 126.00 | 0.5611 | -941.0 | -726.2 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -25.80 | 90.30 | -30.19 | 126.40 | 0.5646 | -956.0 | -818.5 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -25.05 | 90.40 | -30.09 | 125.27 | 0.5585 | -274.0 | -221.6 | |
| 2.42 | 7.76 | 1.45 | 4.67 | -25.77 | 89.93 | -30.56 | 126.08 | 0.5688 | -964.4 | -627.2 | |
| 3.97 | 10.61 | 2.38 | 6.36 | -25.24 | 89.92 | -30.56 | 125.24 | 0.5653 | -1033.7 | -773.1 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -24.74 | 90.06 | -30.43 | 124.54 | 0.5606 | -783.0 | -660.5 | |
| 0.86 | -28.00 | 0.52 | -28.00 | -25.04 | 89.83 | -30.66 | 124.86 | 0.5652 | -1007.5 | 999999 | |
| 52.44 | 320.18 | 32.43 | 197.93 | -26.34 | 87.41 | -33.08 | 125.25 | 0.6011 | -1202.7 | -409.3 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -31.64 | 85.28 | -35.21 | 131.41 | 0.6568 | -501.0 | -346.6 | |
| 0.86 | -31.00 | 0.54 | -31.00 | -26.91 | 86.82 | -33.66 | 125.72 | 0.6111 | -480.0 | 999999 | |
| 1.21 | -31.00 | 0.75 | -31.00 | -26.23 | 86.65 | -33.83 | 124.60 | 0.6091 | -593.6 | 999999 | |
| 0.60 | -31.00 | 0.38 | -31.00 | -26.38 | 86.56 | -33.93 | 124.78 | 0.6110 | -419.4 | 999999 | |
| 1.21 | -31.00 | 0.75 | -31.00 | -26.08 | 86.34 | -34.14 | 124.19 | 0.6118 | -719.4 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.25 | -26.72 | 85.96 | -34.53 | 124.92 | 0.6197 | -627.0 | -453.5 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -27.26 | 83.62 | -36.86 | 124.38 | 0.6485 | -426.0 | -396.4 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -22.46 | 84.39 | -36.10 | 117.62 | 0.6168 | -603.0 | -577.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
