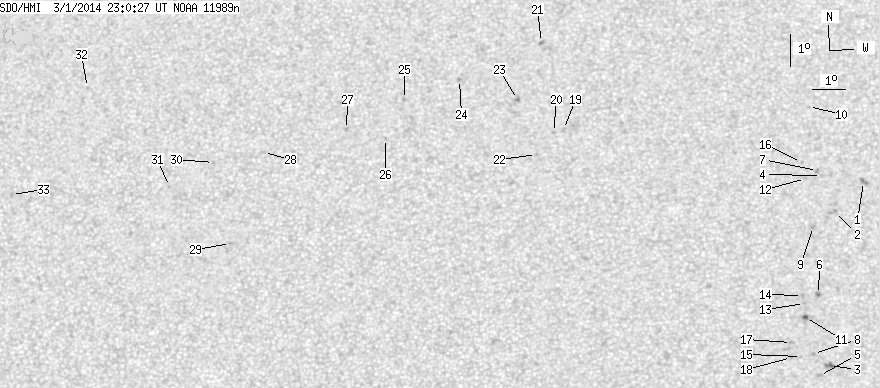

SDO HMI 2014-03-01 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.71 | 54.08 | 1.96 | 28.32 | 9.45 | 122.85 | 2.91 | 336.62 | 0.3204 | -574.6 | -487.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.02 | 3.11 | 1.60 | 1.64 | 10.56 | 129.94 | 10.01 | 330.65 | 0.3500 | -785.9 | -781.0 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 9.58 | 129.03 | 9.09 | 331.57 | 0.3286 | -645.0 | -627.9 | |
| 0.00 | 4.31 | 0.00 | 2.21 | 4.88 | 128.77 | 8.84 | 323.71 | 0.2597 | -1138.0 | -920.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 10.72 | 128.66 | 8.72 | 334.10 | 0.3427 | -735.0 | -579.2 | |
| 0.00 | 2.59 | 0.00 | 1.32 | 4.57 | 128.47 | 8.53 | 323.96 | 0.2525 | -883.0 | -675.3 | |
| 0.00 | 2.33 | 0.00 | 1.20 | 7.04 | 128.48 | 8.54 | 328.99 | 0.2874 | -971.0 | -804.1 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 10.88 | 128.54 | 8.61 | 334.60 | 0.3441 | -901.0 | -641.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 5.24 | 128.30 | 8.36 | 326.00 | 0.2601 | -978.0 | -812.6 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 9.13 | 128.37 | 8.44 | 332.69 | 0.3171 | -870.0 | -686.5 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 12.89 | 128.33 | 8.40 | 337.44 | 0.3727 | -680.0 | -525.2 | |
| 0.69 | 1.98 | 0.36 | 1.02 | 6.33 | 128.07 | 8.13 | 328.92 | 0.2736 | -1069.0 | -895.9 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 10.62 | 128.17 | 8.23 | 335.26 | 0.3377 | -730.0 | -600.5 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 6.76 | 128.05 | 8.11 | 329.78 | 0.2796 | -745.0 | -647.7 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 7.00 | 127.99 | 8.06 | 330.38 | 0.2827 | -817.0 | -659.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 5.14 | 127.93 | 8.00 | 326.97 | 0.2553 | -755.0 | -542.8 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 11.12 | 128.06 | 8.12 | 336.15 | 0.3445 | -650.0 | -519.2 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 5.56 | 127.64 | 7.70 | 328.82 | 0.2587 | -817.0 | -659.1 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 5.10 | 127.63 | 7.69 | 327.90 | 0.2521 | -983.0 | -815.7 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 12.09 | 120.84 | 0.90 | 357.35 | 0.3327 | -662.0 | -405.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 11.99 | 120.53 | 0.59 | 358.23 | 0.3310 | -770.0 | -573.3 | |
| 0.00 | 2.07 | 0.00 | 1.11 | 14.85 | 120.17 | 0.24 | 359.39 | 0.3777 | -879.0 | -678.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 11.30 | 120.02 | 0.08 | 359.76 | 0.3194 | -873.0 | -679.5 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 13.04 | 119.44 | -0.50 | 1.40 | 0.3481 | -988.0 | -794.8 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 13.68 | 117.66 | -2.27 | 6.16 | 0.3606 | -819.0 | -641.4 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 13.06 | 115.99 | -3.95 | 10.95 | 0.3545 | -769.0 | -542.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 11.83 | 115.43 | -4.51 | 13.26 | 0.3368 | -741.0 | -602.2 | |
| 0.00 | 1.55 | 0.00 | 0.82 | 12.13 | 114.24 | -5.70 | 16.35 | 0.3465 | -695.0 | -504.9 | |
| 0.00 | 1.81 | 0.00 | 0.96 | 11.45 | 111.72 | -8.22 | 23.71 | 0.3501 | -11.0 | -1.3 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 8.64 | 110.78 | -9.16 | 30.04 | 0.3156 | 747.0 | 623.2 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 11.17 | 110.19 | -9.75 | 27.87 | 0.3568 | 766.0 | 606.8 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 10.46 | 108.86 | -11.08 | 32.06 | 0.3575 | 749.0 | 610.4 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 13.65 | 106.16 | -13.77 | 33.24 | 0.4239 | 772.0 | 603.8 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 10.37 | 103.96 | -15.98 | 42.30 | 0.4041 | 669.0 | 608.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
