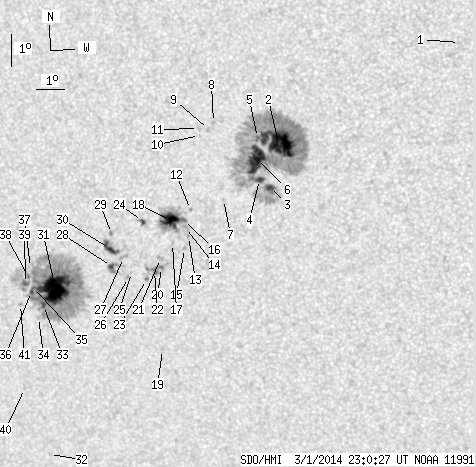

SDO HMI 2014-03-01 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 184.17 | 842.74 | 107.35 | 491.00 | -24.35 | 92.22 | -27.71 | 126.16 | 0.5238 | 27.2 | -17.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 1.09 | -19.51 | 103.20 | -16.74 | 128.72 | 0.3494 | -13.0 | -5.4 | |
| 50.81 | 415.81 | 28.25 | 232.14 | -22.30 | 96.68 | -23.26 | 126.40 | 0.4559 | 1190.5 | 375.1 | |
| 4.31 | -2.00 | 2.42 | -2.00 | -23.67 | 96.10 | -23.83 | 128.34 | 0.4738 | 978.9 | 999999 | |
| 3.54 | -2.00 | 1.99 | -2.00 | -23.40 | 95.80 | -24.14 | 127.56 | 0.4754 | 873.0 | 999999 | |
| 0.86 | -2.00 | 0.48 | -2.00 | -22.11 | 95.97 | -23.96 | 125.34 | 0.4632 | 774.8 | 999999 | |
| 28.55 | -2.00 | 16.01 | -2.00 | -22.78 | 95.81 | -24.12 | 126.44 | 0.4703 | 962.7 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -23.96 | 94.40 | -25.54 | 127.19 | 0.4966 | -525.0 | -476.8 | |
| 0.00 | 1.47 | 0.00 | 0.83 | -21.58 | 94.52 | -25.41 | 122.98 | 0.4777 | 851.0 | 704.7 | |
| 0.00 | 2.07 | 0.00 | 1.17 | -21.78 | 94.31 | -25.63 | 123.18 | 0.4819 | 710.0 | 622.2 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -21.95 | 93.95 | -25.98 | 123.18 | 0.4875 | 449.0 | 340.8 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -21.73 | 93.96 | -25.98 | 122.79 | 0.4860 | 596.0 | 464.5 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -24.20 | 93.15 | -26.79 | 126.49 | 0.5134 | -846.0 | -608.1 | |
| 0.00 | 1.47 | 0.00 | 0.85 | -25.03 | 92.88 | -27.06 | 127.66 | 0.5228 | -916.0 | -748.8 | |
| 0.00 | 2.67 | 0.00 | 1.55 | -24.75 | 92.84 | -27.10 | 127.15 | 0.5212 | -426.0 | -403.4 | |
| 0.00 | 1.55 | 0.00 | 0.90 | -25.40 | 92.64 | -27.30 | 128.06 | 0.5282 | -852.0 | -700.0 | |
| 1.21 | 46.50 | 0.70 | 27.02 | -24.53 | 92.81 | -27.12 | 126.76 | 0.5198 | -651.9 | 149.8 | |
| 0.00 | 2.16 | 0.00 | 1.26 | -25.22 | 92.24 | -27.70 | 127.42 | 0.5316 | -228.0 | -168.2 | |
| 17.25 | -16.00 | 10.03 | -16.00 | -24.50 | 92.34 | -27.59 | 126.32 | 0.5252 | 927.5 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -28.51 | 90.95 | -28.98 | 131.50 | 0.5708 | -660.0 | -509.8 | |
| 0.78 | 18.37 | 0.46 | 10.86 | -25.94 | 91.64 | -28.29 | 128.10 | 0.5438 | -970.8 | -718.7 | |
| 0.00 | 3.19 | 0.00 | 1.88 | -25.66 | 91.68 | -28.26 | 127.68 | 0.5413 | -545.0 | -630.9 | |
| 1.64 | -20.00 | 0.97 | -20.00 | -26.05 | 91.35 | -28.59 | 128.04 | 0.5479 | -985.4 | 999999 | |
| 0.43 | -20.00 | 0.26 | -20.00 | -26.28 | 90.99 | -28.95 | 128.11 | 0.5538 | -777.0 | 999999 | |
| 1.64 | 5.26 | 0.96 | 3.09 | -24.47 | 91.31 | -28.63 | 125.44 | 0.5373 | 627.9 | 302.7 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -26.03 | 90.49 | -29.45 | 127.32 | 0.5577 | -259.0 | -272.0 | |
| 0.00 | 1.47 | 0.00 | 0.88 | -26.18 | 90.33 | -29.61 | 127.43 | 0.5605 | -771.0 | -661.6 | |
| 0.00 | 3.28 | 0.00 | 1.95 | -25.55 | 90.32 | -29.62 | 126.42 | 0.5563 | -843.0 | -750.6 | |
| 2.76 | 10.09 | 1.65 | 6.04 | -25.80 | 89.79 | -30.15 | 126.42 | 0.5642 | -860.8 | -696.4 | |
| 0.00 | 2.24 | 0.00 | 1.33 | -24.78 | 90.07 | -29.87 | 125.00 | 0.5541 | -506.0 | -503.0 | |
| 7.42 | 15.01 | 4.42 | 8.94 | -25.24 | 89.87 | -30.07 | 125.59 | 0.5595 | -1034.4 | -598.0 | |
| 54.87 | 274.85 | 33.73 | 168.81 | -26.35 | 87.45 | -32.49 | 125.64 | 0.5945 | -1191.8 | -441.0 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -31.58 | 85.27 | -34.67 | 131.67 | 0.6510 | -546.0 | -399.1 | |
| 2.50 | -31.00 | 1.55 | -31.00 | -26.85 | 86.81 | -33.12 | 125.98 | 0.6047 | -492.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.81 | -27.21 | 86.49 | -33.45 | 126.31 | 0.6105 | -412.0 | -337.5 | |
| 1.29 | -31.00 | 0.80 | -31.00 | -26.26 | 86.61 | -33.33 | 124.97 | 0.6035 | -565.6 | 999999 | |
| 1.21 | -31.00 | 0.75 | -31.00 | -26.38 | 86.49 | -33.45 | 125.07 | 0.6055 | -463.6 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.85 | -25.63 | 86.69 | -33.24 | 124.06 | 0.5989 | -256.0 | -335.9 | |
| 0.60 | -31.00 | 0.37 | -31.00 | -25.91 | 86.53 | -33.41 | 124.38 | 0.6024 | -545.9 | 999999 | |
| 2.50 | 20.27 | 1.55 | 12.61 | -26.12 | 86.34 | -33.60 | 124.58 | 0.6057 | -659.8 | -106.9 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -29.40 | 85.11 | -34.83 | 128.59 | 0.6388 | -604.0 | -457.8 | |
| 0.00 | 1.29 | 0.00 | 0.81 | -26.76 | 85.92 | -34.01 | 125.28 | 0.6141 | -642.0 | -541.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
