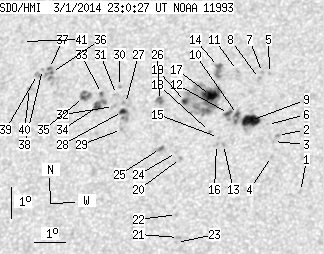

SDO HMI 2014-03-01 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.44 | 216.12 | 25.18 | 122.90 | 15.93 | 101.71 | -18.22 | 37.70 | 0.4928 | -130.7 | 84.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-01 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.85 | 13.00 | 105.73 | -14.21 | 34.95 | 0.4192 | 751.0 | 617.8 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 14.81 | 104.89 | -15.05 | 34.07 | 0.4500 | -867.0 | -706.2 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 14.63 | 104.77 | -15.17 | 34.52 | 0.4486 | -631.0 | -475.2 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 14.15 | 104.74 | -15.20 | 35.20 | 0.4428 | -658.0 | -517.8 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 16.83 | 104.47 | -15.46 | 32.32 | 0.4793 | -701.0 | -572.5 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 15.18 | 104.54 | -15.40 | 34.21 | 0.4577 | -665.0 | -625.6 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 16.87 | 104.25 | -15.69 | 32.65 | 0.4817 | -887.0 | -713.3 | |
| 0.00 | 1.73 | 0.00 | 0.97 | 16.68 | 104.17 | -15.77 | 33.01 | 0.4799 | -834.0 | -738.1 | |
| 14.32 | 30.88 | 8.00 | 17.27 | 15.33 | 103.98 | -15.95 | 34.97 | 0.4645 | -1026.0 | -537.4 | |
| 1.64 | -9.00 | 0.92 | -9.00 | 15.54 | 103.55 | -16.39 | 35.42 | 0.4709 | -869.7 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.83 | 16.97 | 103.43 | -16.51 | 33.87 | 0.4897 | -692.0 | -602.3 | |
| 1.98 | 6.12 | 1.11 | 3.44 | 15.58 | 103.26 | -16.68 | 35.85 | 0.4741 | -726.6 | -614.6 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 14.59 | 103.18 | -16.76 | 37.28 | 0.4627 | -824.0 | -684.4 | |
| 1.64 | 7.68 | 0.93 | 4.37 | 17.12 | 102.80 | -17.14 | 34.68 | 0.4970 | -650.7 | -694.7 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 14.82 | 103.00 | -16.94 | 37.26 | 0.4671 | -750.0 | -555.4 | |
| 0.00 | 2.33 | 0.00 | 1.30 | 14.60 | 102.95 | -16.99 | 37.64 | 0.4649 | -705.0 | -431.4 | |
| 11.47 | 82.38 | 6.50 | 46.70 | 16.19 | 102.62 | -17.31 | 36.09 | 0.4872 | -1048.9 | -15.0 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 15.03 | 102.69 | -17.25 | 37.49 | 0.4725 | -781.0 | -674.7 | |
| 2.42 | -17.00 | 1.37 | -17.00 | 16.03 | 101.83 | -18.11 | 37.53 | 0.4925 | 777.2 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 14.20 | 101.83 | -18.11 | 39.98 | 0.4710 | 800.0 | 719.4 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 11.70 | 101.95 | -17.99 | 43.53 | 0.4410 | 825.0 | 675.2 | |
| 0.00 | 1.55 | 0.00 | 0.86 | 12.42 | 101.83 | -18.10 | 42.57 | 0.4505 | 841.0 | 609.8 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 11.54 | 101.89 | -18.04 | 43.86 | 0.4399 | 785.0 | 646.6 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 14.40 | 101.68 | -18.26 | 39.93 | 0.4747 | 749.0 | 685.1 | |
| 0.95 | 4.05 | 0.54 | 2.29 | 14.55 | 101.15 | -18.79 | 40.53 | 0.4817 | -792.2 | -489.0 | |
| 0.00 | 4.83 | 0.00 | 2.76 | 16.10 | 100.97 | -18.97 | 38.72 | 0.5012 | 1114.0 | 896.4 | |
| 0.00 | 2.07 | 0.00 | 1.19 | 16.05 | 99.86 | -20.08 | 40.38 | 0.5113 | 814.0 | 772.9 | |
| 2.42 | 9.92 | 1.39 | 5.69 | 15.80 | 99.79 | -20.15 | 40.81 | 0.5092 | 946.9 | 787.2 | |
| 0.00 | 1.55 | 0.00 | 0.89 | 15.22 | 99.81 | -20.12 | 41.56 | 0.5025 | 770.0 | 668.9 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 16.61 | 99.60 | -20.34 | 40.00 | 0.5201 | 768.0 | 565.4 | |
| 0.00 | 2.42 | 0.00 | 1.40 | 16.36 | 99.53 | -20.41 | 40.43 | 0.5179 | 579.0 | 438.3 | |
| 0.00 | 2.67 | 0.00 | 1.54 | 15.97 | 99.47 | -20.46 | 41.02 | 0.5142 | 770.0 | 602.7 | |
| 0.78 | 11.56 | 0.45 | 6.70 | 16.41 | 99.03 | -20.91 | 41.05 | 0.5234 | -314.2 | 433.7 | |
| 3.80 | -33.00 | 2.20 | -33.00 | 16.00 | 98.94 | -21.00 | 41.71 | 0.5197 | 890.5 | 999999 | |
| 1.55 | 8.20 | 0.90 | 4.77 | 16.31 | 98.44 | -21.50 | 41.96 | 0.5281 | 972.1 | 735.8 | |
| 0.69 | 10.87 | 0.41 | 6.43 | 17.18 | 97.26 | -22.67 | 42.34 | 0.5489 | 926.0 | 766.1 | |
| 0.78 | -36.00 | 0.46 | -36.00 | 17.32 | 97.18 | -22.76 | 42.28 | 0.5512 | 791.0 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 17.30 | 96.94 | -22.99 | 42.59 | 0.5532 | 578.0 | 528.3 | |
| 0.00 | 2.59 | 0.00 | 1.54 | 17.14 | 96.80 | -23.14 | 42.97 | 0.5531 | 644.0 | 625.6 | |
| 0.00 | 1.73 | 0.00 | 1.02 | 16.70 | 96.58 | -23.36 | 43.81 | 0.5507 | 718.0 | 641.6 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 18.26 | 96.13 | -23.81 | 42.37 | 0.5710 | 591.0 | 511.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
