SDO HMI 2014-03-02 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 65.25 | 0.36 | 34.32 | 9.47 | 120.04 | 0.65 | 308.85 | 0.3337 | -261.5 | -299.9 | |
|
previous
or next observation for the same group /

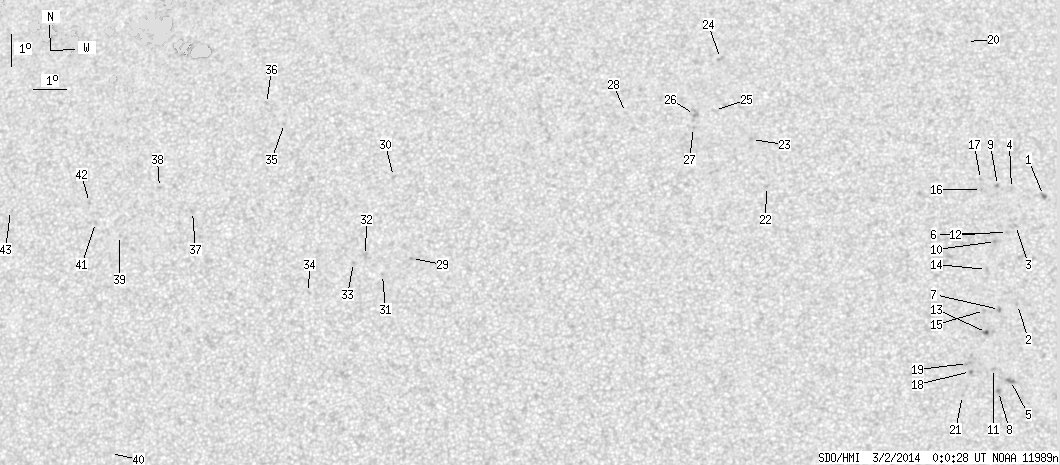

back to the solar disc SDO HMI 2014-03-02 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.93 | 0.00 | 1.55 | 10.60 | 129.98 | 10.59 | 329.30 | 0.3554 | -871.0 | -721.9 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 7.21 | 129.08 | 9.70 | 326.00 | 0.3002 | -727.0 | -556.9 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 9.65 | 129.09 | 9.70 | 330.08 | 0.3346 | -857.0 | -649.9 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 10.80 | 129.00 | 9.62 | 331.95 | 0.3504 | -637.0 | -482.9 | |
| 0.00 | 3.36 | 0.00 | 1.73 | 4.89 | 128.83 | 9.44 | 321.89 | 0.2660 | -1114.0 | -912.7 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 9.43 | 128.84 | 9.45 | 330.40 | 0.3294 | -752.0 | -605.4 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 7.05 | 128.53 | 9.15 | 327.24 | 0.2929 | -938.0 | -786.9 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 4.55 | 128.46 | 9.07 | 322.20 | 0.2577 | -1005.0 | -816.1 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 10.89 | 128.58 | 9.19 | 333.13 | 0.3485 | -865.0 | -739.2 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 9.14 | 128.46 | 9.08 | 330.95 | 0.3222 | -871.0 | -747.7 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 5.24 | 128.32 | 8.93 | 324.23 | 0.2657 | -812.0 | -699.3 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 9.39 | 128.38 | 8.99 | 331.55 | 0.3251 | -776.0 | -665.9 | |
| 0.69 | 2.59 | 0.36 | 1.33 | 6.34 | 128.13 | 8.74 | 327.08 | 0.2791 | -1046.8 | -868.7 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 8.27 | 128.17 | 8.78 | 330.40 | 0.3072 | -761.0 | -604.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 7.01 | 128.08 | 8.69 | 328.49 | 0.2883 | -826.0 | -699.7 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 10.75 | 128.08 | 8.70 | 334.21 | 0.3429 | -792.0 | -610.1 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 11.06 | 128.06 | 8.67 | 334.66 | 0.3474 | -628.0 | -493.3 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 5.14 | 127.62 | 8.24 | 326.19 | 0.2576 | -929.0 | -775.2 | |
| 0.00 | 2.59 | 0.00 | 1.33 | 5.38 | 127.54 | 8.15 | 326.98 | 0.2602 | -651.0 | -675.5 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 15.44 | 127.79 | 8.40 | 339.86 | 0.4110 | -629.0 | -519.9 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 4.41 | 127.37 | 7.99 | 325.37 | 0.2449 | -702.0 | -528.5 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 10.77 | 121.55 | 2.16 | 353.16 | 0.3127 | -849.0 | -610.8 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 12.24 | 121.11 | 1.72 | 354.97 | 0.3362 | -554.0 | -481.7 | |
| 0.00 | 2.42 | 0.00 | 1.29 | 14.82 | 120.18 | 0.79 | 357.97 | 0.3774 | -829.0 | -616.4 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 13.16 | 119.99 | 0.60 | 358.33 | 0.3502 | -20.0 | -10.8 | |
| 0.00 | 4.75 | 0.00 | 2.51 | 13.03 | 119.38 | -0.01 | 0.03 | 0.3480 | -843.0 | -683.1 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.62 | 119.35 | -0.04 | 0.12 | 0.3412 | -789.0 | -644.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 13.10 | 117.27 | -2.12 | 5.91 | 0.3510 | -31.0 | -38.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 8.63 | 110.84 | -8.55 | 28.38 | 0.3105 | 820.0 | 724.0 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 11.19 | 110.22 | -9.16 | 26.42 | 0.3527 | 815.0 | 649.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 8.15 | 109.97 | -9.42 | 31.56 | 0.3109 | 785.0 | 641.3 | |
| 0.00 | 2.59 | 0.00 | 1.35 | 8.75 | 109.44 | -9.95 | 31.98 | 0.3240 | 828.0 | 670.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 8.54 | 109.08 | -10.31 | 33.26 | 0.3243 | 755.0 | 527.0 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 7.66 | 107.72 | -11.66 | 38.22 | 0.3253 | 600.0 | 342.6 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 12.95 | 106.78 | -12.61 | 31.88 | 0.4046 | 818.0 | 664.8 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 13.60 | 106.18 | -13.21 | 32.21 | 0.4184 | 738.0 | 526.2 | |
| 0.00 | 1.81 | 0.00 | 0.98 | 10.28 | 104.04 | -15.35 | 41.30 | 0.3964 | 766.0 | 560.9 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 11.07 | 102.96 | -16.43 | 41.93 | 0.4172 | 589.0 | 449.1 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 9.62 | 101.77 | -17.61 | 46.40 | 0.4138 | 757.0 | 568.5 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 2.96 | 101.72 | -17.67 | 60.55 | 0.3496 | 10.0 | -5.1 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 10.05 | 100.99 | -18.40 | 46.89 | 0.4275 | 800.0 | 653.9 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 10.69 | 100.76 | -18.63 | 46.17 | 0.4369 | 607.0 | 483.9 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 10.55 | 98.23 | -21.16 | 50.05 | 0.4648 | 455.0 | 477.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
