SDO HMI 2014-03-02 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.69 | 290.00 | 29.88 | 173.05 | -1.28 | 152.18 | 33.34 | 278.68 | 0.5574 | -378.3 | -235.4 | |
|
previous
or next observation for the same group /

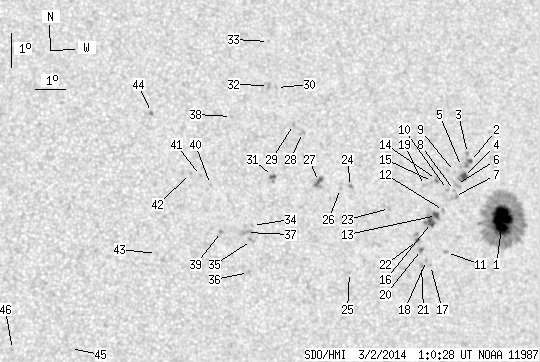

back to the solar disc SDO HMI 2014-03-02 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.12 | 185.10 | 21.32 | 112.38 | -1.41 | 153.78 | 34.94 | 277.84 | 0.5802 | -1005.5 | -299.0 | |
| 1.04 | 4.75 | 0.62 | 2.85 | 0.24 | 152.62 | 33.78 | 281.09 | 0.5688 | -618.0 | -645.6 | |
| 0.00 | 1.90 | 0.00 | 1.14 | 0.48 | 152.51 | 33.68 | 281.53 | 0.5681 | -636.0 | -548.2 | |
| 2.93 | 6.47 | 1.76 | 3.87 | -0.22 | 152.37 | 33.53 | 280.38 | 0.5638 | -819.9 | -724.6 | |
| 0.00 | 1.47 | 0.00 | 0.88 | 0.07 | 152.30 | 33.46 | 280.92 | 0.5637 | -679.0 | -603.1 | |
| 0.00 | 4.23 | 0.00 | 2.52 | -0.48 | 152.12 | 33.28 | 280.03 | 0.5594 | -769.0 | -597.3 | |
| 0.00 | 2.76 | 0.00 | 1.64 | -0.84 | 152.05 | 33.21 | 279.42 | 0.5573 | -584.0 | -610.8 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -0.66 | 152.05 | 33.21 | 279.73 | 0.5579 | -791.0 | -644.6 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -0.09 | 152.05 | 33.21 | 280.73 | 0.5596 | -620.0 | -559.6 | |
| 0.00 | 1.47 | 0.00 | 0.87 | -0.65 | 151.80 | 32.96 | 279.85 | 0.5544 | -747.0 | -649.9 | |
| 0.00 | 1.64 | 0.00 | 0.97 | -2.53 | 151.80 | 32.96 | 276.49 | 0.5491 | -652.0 | -589.3 | |
| 0.00 | 1.90 | 0.00 | 1.12 | -1.29 | 151.66 | 32.83 | 278.77 | 0.5505 | -704.0 | -526.1 | |
| 2.50 | 15.96 | 1.48 | 9.41 | -1.45 | 151.42 | 32.58 | 278.55 | 0.5465 | -851.1 | -740.8 | |
| 0.00 | 2.33 | 0.00 | 1.38 | -0.38 | 151.41 | 32.57 | 280.49 | 0.5496 | -821.0 | -695.7 | |
| 0.00 | 1.64 | 0.00 | 0.97 | -0.45 | 151.27 | 32.43 | 280.42 | 0.5474 | -679.0 | -556.3 | |
| 3.88 | -13.00 | 2.29 | -13.00 | -1.67 | 151.25 | 32.41 | 278.22 | 0.5434 | -968.7 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -2.96 | 151.24 | 32.40 | 275.87 | 0.5401 | -502.0 | -430.5 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -2.82 | 151.10 | 32.26 | 276.17 | 0.5383 | -735.0 | -563.1 | |
| 0.00 | 1.81 | 0.00 | 1.07 | -0.59 | 150.99 | 32.15 | 280.28 | 0.5429 | -713.0 | -615.6 | |
| 0.60 | 2.50 | 0.35 | 1.47 | -2.50 | 150.91 | 32.07 | 276.81 | 0.5364 | -829.9 | -676.4 | |
| 0.00 | 1.98 | 0.00 | 1.16 | -2.98 | 150.93 | 32.09 | 275.93 | 0.5355 | -693.0 | -621.9 | |
| 0.69 | 4.31 | 0.40 | 2.53 | -2.24 | 150.77 | 31.93 | 277.34 | 0.5349 | -890.2 | -770.1 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -1.35 | 149.77 | 30.93 | 279.35 | 0.5229 | -56.0 | -107.6 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -0.78 | 148.42 | 29.59 | 281.01 | 0.5050 | 708.0 | 604.8 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -3.35 | 148.44 | 29.60 | 275.96 | 0.4978 | -752.0 | -653.9 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -0.86 | 148.08 | 29.24 | 281.01 | 0.4997 | 545.0 | 399.4 | |
| 1.81 | 6.30 | 1.03 | 3.57 | -0.70 | 147.33 | 28.50 | 281.69 | 0.4892 | 854.6 | 716.6 | |
| 0.00 | 3.28 | 0.00 | 1.86 | 0.74 | 146.80 | 27.96 | 284.83 | 0.4869 | 584.0 | 563.5 | |
| 0.00 | 1.55 | 0.00 | 0.88 | 0.96 | 146.50 | 27.66 | 285.45 | 0.4835 | 587.0 | 545.6 | |
| 0.00 | 1.55 | 0.00 | 0.88 | 2.04 | 145.94 | 27.10 | 287.94 | 0.4806 | 648.0 | 496.8 | |
| 1.12 | 4.31 | 0.63 | 2.41 | -0.64 | 145.79 | 26.95 | 282.60 | 0.4663 | 831.6 | 718.4 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 2.09 | 145.68 | 26.84 | 288.22 | 0.4770 | 653.0 | 563.8 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 3.41 | 145.71 | 26.87 | 290.79 | 0.4846 | 446.0 | 397.9 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -2.14 | 145.14 | 26.30 | 279.73 | 0.4511 | 663.0 | 523.0 | |
| 0.00 | 2.59 | 0.00 | 1.43 | -2.59 | 145.11 | 26.28 | 278.76 | 0.4493 | 690.0 | 533.0 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -3.54 | 145.04 | 26.20 | 276.67 | 0.4455 | 638.0 | 486.0 | |
| 0.00 | 5.01 | 0.00 | 2.77 | -2.36 | 144.94 | 26.11 | 279.33 | 0.4474 | 851.0 | 676.6 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 1.09 | 144.44 | 25.60 | 287.04 | 0.4537 | 649.0 | 556.8 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -2.37 | 144.12 | 25.28 | 279.68 | 0.4347 | 851.0 | 714.4 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -0.99 | 143.74 | 24.90 | 283.00 | 0.4339 | 663.0 | 533.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -0.74 | 143.41 | 24.57 | 283.76 | 0.4299 | 662.0 | 583.5 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -0.69 | 143.09 | 24.25 | 284.07 | 0.4251 | 722.0 | 550.9 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -3.13 | 142.01 | 23.17 | 278.89 | 0.3994 | 603.0 | 506.2 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 1.07 | 141.82 | 22.99 | 289.01 | 0.4147 | 752.0 | 681.1 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -6.08 | 139.34 | 20.50 | 272.01 | 0.3500 | -2.0 | 5.2 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -6.19 | 137.50 | 18.66 | 272.11 | 0.3198 | 865.0 | 599.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
