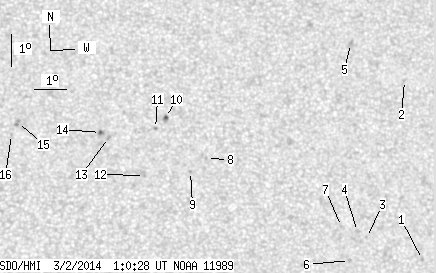

SDO HMI 2014-03-02 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.46 | 25.28 | 0.78 | 13.70 | 7.75 | 136.80 | 17.96 | 310.42 | 0.4014 | -44.0 | -14.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.77 | 4.67 | 143.21 | 24.37 | 295.39 | 0.4572 | -750.0 | -547.2 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 10.15 | 142.95 | 24.11 | 305.61 | 0.4967 | -684.0 | -533.4 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 5.25 | 141.41 | 22.57 | 298.39 | 0.4364 | -629.0 | -520.2 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 5.42 | 141.13 | 22.29 | 299.05 | 0.4338 | -598.0 | -508.3 | |
| 0.00 | 2.85 | 0.00 | 1.61 | 11.22 | 141.26 | 22.42 | 309.39 | 0.4861 | -529.0 | -406.8 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 4.52 | 140.84 | 22.00 | 297.54 | 0.4229 | -641.0 | -570.7 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 5.54 | 140.62 | 21.78 | 299.90 | 0.4278 | -710.0 | -587.3 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 7.44 | 136.41 | 17.57 | 309.60 | 0.3902 | 597.0 | 421.8 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 7.03 | 135.89 | 17.05 | 309.62 | 0.3794 | 776.0 | 640.7 | |
| 0.86 | 2.93 | 0.46 | 1.58 | 8.66 | 135.18 | 16.34 | 314.04 | 0.3885 | -828.3 | -740.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 8.31 | 134.85 | 16.01 | 313.97 | 0.3808 | -629.0 | -554.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 6.85 | 134.45 | 15.61 | 311.80 | 0.3599 | 858.0 | 659.2 | |
| 0.00 | 2.07 | 0.00 | 1.10 | 7.98 | 133.37 | 14.53 | 316.14 | 0.3602 | 773.0 | 604.0 | |
| 0.60 | 2.33 | 0.32 | 1.24 | 8.13 | 133.13 | 14.29 | 316.91 | 0.3592 | 880.4 | 774.0 | |
| 0.00 | 3.02 | 0.00 | 1.59 | 8.37 | 130.58 | 11.74 | 322.92 | 0.3354 | 807.0 | 747.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 7.99 | 130.39 | 11.55 | 322.70 | 0.3285 | 668.0 | 488.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
