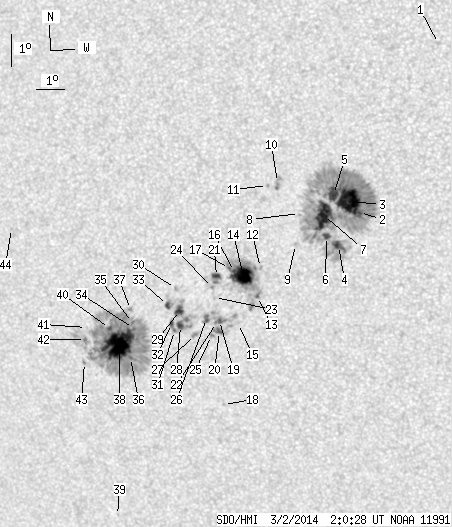

SDO HMI 2014-03-02 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 196.35 | 907.47 | 112.87 | 522.57 | -24.46 | 92.05 | -26.24 | 127.63 | 0.5074 | 23.0 | -21.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.81 | 1.99 | 0.96 | 1.05 | -17.71 | 100.33 | -17.96 | 122.57 | 0.3501 | -0.0 | -5.5 | |
| 1.29 | 400.22 | 0.71 | 220.92 | -22.74 | 97.00 | -21.29 | 129.42 | 0.4353 | 1062.7 | 402.5 | |
| 35.39 | -2.00 | 19.46 | -2.00 | -22.39 | 96.71 | -21.58 | 128.40 | 0.4358 | 1253.6 | 999999 | |
| 6.73 | -2.00 | 3.74 | -2.00 | -23.73 | 96.10 | -22.19 | 130.21 | 0.4547 | 910.2 | 999999 | |
| 9.24 | -2.00 | 5.09 | -2.00 | -22.15 | 96.20 | -22.09 | 127.35 | 0.4401 | 997.9 | 999999 | |
| 3.37 | -2.00 | 1.87 | -2.00 | -23.43 | 95.73 | -22.56 | 129.26 | 0.4565 | 840.1 | 999999 | |
| 29.35 | -2.00 | 16.27 | -2.00 | -22.78 | 95.74 | -22.55 | 128.05 | 0.4509 | 967.8 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -22.68 | 94.92 | -23.37 | 126.99 | 0.4602 | 84.0 | 216.0 | |
| 0.00 | 1.55 | 0.00 | 0.87 | -23.63 | 94.60 | -23.69 | 128.40 | 0.4717 | 527.0 | 279.5 | |
| 0.00 | 5.44 | 0.00 | 3.03 | -21.69 | 94.33 | -23.96 | 124.53 | 0.4600 | 632.0 | 718.7 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -21.77 | 93.96 | -24.33 | 124.32 | 0.4652 | 682.0 | 536.6 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -24.27 | 93.22 | -25.07 | 128.18 | 0.4934 | -816.0 | -620.0 | |
| 0.95 | 91.31 | 0.54 | 52.28 | -25.17 | 92.91 | -25.38 | 129.41 | 0.5041 | -885.8 | -1.5 | |
| 20.89 | -13.00 | 11.96 | -13.00 | -24.49 | 92.56 | -25.73 | 127.92 | 0.5030 | 926.9 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -25.97 | 92.03 | -26.26 | 129.92 | 0.5207 | -752.0 | -619.0 | |
| 1.12 | -13.00 | 0.64 | -13.00 | -24.35 | 92.26 | -26.03 | 127.41 | 0.5054 | 804.5 | 999999 | |
| 0.86 | -13.00 | 0.50 | -13.00 | -24.25 | 92.10 | -26.19 | 127.09 | 0.5065 | 622.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -28.48 | 90.80 | -27.49 | 132.74 | 0.5545 | -717.0 | -604.1 | |
| 1.64 | 21.66 | 0.95 | 12.61 | -25.84 | 91.36 | -26.93 | 129.10 | 0.5274 | -998.6 | -574.3 | |
| 2.33 | 11.05 | 1.36 | 6.44 | -26.18 | 91.27 | -27.02 | 129.57 | 0.5310 | -927.3 | -739.5 | |
| 3.88 | 8.29 | 2.24 | 4.78 | -24.47 | 91.58 | -26.71 | 127.01 | 0.5144 | 636.8 | 182.0 | |
| 0.43 | -19.00 | 0.25 | -19.00 | -25.89 | 91.23 | -27.06 | 129.08 | 0.5292 | -912.4 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -25.11 | 91.35 | -26.94 | 127.90 | 0.5219 | -664.0 | -492.5 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -24.80 | 91.35 | -26.94 | 127.37 | 0.5196 | 586.0 | 376.3 | |
| 0.00 | 1.99 | 0.00 | 1.16 | -26.29 | 90.95 | -27.34 | 129.46 | 0.5355 | -732.0 | -586.7 | |
| 2.68 | -19.00 | 1.56 | -19.00 | -25.75 | 90.90 | -27.39 | 128.55 | 0.5320 | -913.1 | 999999 | |
| 0.00 | 3.28 | 0.00 | 1.93 | -26.23 | 90.36 | -27.93 | 128.86 | 0.5417 | -872.0 | -668.0 | |
| 3.88 | 31.42 | 2.29 | 18.50 | -25.91 | 89.88 | -28.41 | 127.96 | 0.5449 | -872.8 | -702.4 | |
| 6.13 | -28.00 | 3.60 | -28.00 | -25.44 | 89.97 | -28.32 | 127.27 | 0.5405 | -1064.2 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.01 | -24.75 | 90.00 | -28.30 | 126.16 | 0.5353 | -614.0 | -542.5 | |
| 0.69 | -28.00 | 0.41 | -28.00 | -26.06 | 89.62 | -28.67 | 127.97 | 0.5489 | -551.6 | 999999 | |
| 1.64 | -28.00 | 0.97 | -28.00 | -25.83 | 89.57 | -28.72 | 127.57 | 0.5479 | -784.0 | 999999 | |
| 2.42 | 5.26 | 1.42 | 3.10 | -25.26 | 89.57 | -28.72 | 126.66 | 0.5439 | -921.4 | -876.6 | |
| 0.86 | 287.41 | 0.52 | 173.79 | -25.90 | 88.10 | -30.19 | 126.56 | 0.5653 | -1163.5 | -401.7 | |
| 0.78 | -34.00 | 0.47 | -34.00 | -25.71 | 88.12 | -30.17 | 126.27 | 0.5638 | -893.4 | 999999 | |
| 1.29 | -34.00 | 0.78 | -34.00 | -26.80 | 87.73 | -30.57 | 127.67 | 0.5756 | -725.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -25.31 | 88.16 | -30.13 | 125.65 | 0.5607 | -1015.0 | -869.5 | |
| 54.29 | -34.00 | 32.84 | -34.00 | -26.37 | 87.43 | -30.86 | 126.79 | 0.5761 | -1152.3 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -31.78 | 85.46 | -32.83 | 133.18 | 0.6343 | -597.0 | -480.1 | |
| 1.81 | -34.00 | 1.10 | -34.00 | -25.85 | 87.20 | -31.09 | 125.81 | 0.5753 | -730.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -25.76 | 86.33 | -31.96 | 125.08 | 0.5848 | -282.0 | -228.4 | |
| 0.60 | 21.92 | 0.37 | 13.43 | -26.13 | 86.18 | -32.11 | 125.55 | 0.5888 | -732.4 | -159.0 | |
| 0.00 | 1.73 | 0.00 | 1.06 | -26.84 | 85.91 | -32.38 | 126.46 | 0.5963 | -470.0 | -383.4 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -22.53 | 84.36 | -33.93 | 118.80 | 0.5906 | -726.0 | -580.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
