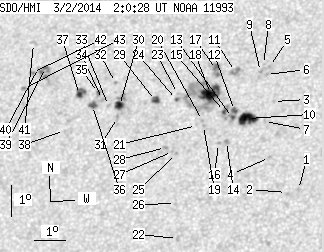

SDO HMI 2014-03-02 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.84 | 203.17 | 28.57 | 114.63 | 16.06 | 101.70 | -16.59 | 34.96 | 0.4797 | -179.7 | 30.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.70 | 13.04 | 105.71 | -12.58 | 31.70 | 0.4057 | 747.0 | 616.3 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 12.96 | 105.33 | -12.96 | 32.56 | 0.4077 | 679.0 | 637.7 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 15.89 | 104.75 | -13.54 | 30.04 | 0.4517 | -705.0 | -532.4 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 14.09 | 104.74 | -13.55 | 32.24 | 0.4278 | -616.0 | -561.1 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 17.03 | 104.54 | -13.75 | 29.15 | 0.4686 | -766.0 | -696.1 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 16.77 | 104.46 | -13.83 | 29.56 | 0.4657 | -782.0 | -698.3 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 15.25 | 104.51 | -13.78 | 31.24 | 0.4451 | -775.0 | -599.4 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 17.10 | 104.34 | -13.95 | 29.42 | 0.4710 | -541.0 | -498.8 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 16.87 | 104.26 | -14.03 | 29.80 | 0.4686 | -868.0 | -664.8 | |
| 13.55 | 17.61 | 7.51 | 9.76 | 15.36 | 103.96 | -14.33 | 32.09 | 0.4511 | -1003.3 | -661.2 | |
| 0.00 | 6.47 | 0.00 | 3.64 | 16.90 | 103.46 | -14.83 | 31.16 | 0.4752 | -697.0 | -632.8 | |
| 1.73 | 15.28 | 0.96 | 8.50 | 15.64 | 103.53 | -14.77 | 32.53 | 0.4583 | -824.1 | -638.3 | |
| 0.86 | -12.00 | 0.48 | -12.00 | 15.41 | 103.48 | -14.81 | 32.89 | 0.4558 | -826.8 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.10 | 14.65 | 103.34 | -14.95 | 34.10 | 0.4471 | -864.0 | -782.8 | |
| 1.47 | -12.00 | 0.82 | -12.00 | 15.62 | 103.21 | -15.08 | 33.11 | 0.4607 | -793.4 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 14.59 | 103.09 | -15.20 | 34.61 | 0.4486 | -624.0 | -535.7 | |
| 0.00 | 7.85 | 0.00 | 4.43 | 16.99 | 102.84 | -15.45 | 32.10 | 0.4813 | -795.0 | -704.0 | |
| 18.12 | 73.19 | 10.17 | 41.13 | 16.22 | 102.71 | -15.58 | 33.23 | 0.4725 | -939.7 | -20.9 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 15.19 | 102.57 | -15.72 | 34.75 | 0.4607 | -762.0 | -681.3 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 15.35 | 102.52 | -15.77 | 34.62 | 0.4632 | -587.0 | -474.6 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 15.20 | 102.34 | -15.95 | 35.12 | 0.4628 | -457.0 | -378.4 | |
| 0.00 | 2.24 | 0.00 | 1.23 | 11.63 | 101.98 | -16.31 | 40.82 | 0.4225 | 739.0 | 602.5 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 16.26 | 101.65 | -16.65 | 34.94 | 0.4821 | 683.0 | 543.9 | |
| 0.52 | -18.00 | 0.29 | -18.00 | 16.06 | 101.63 | -16.66 | 35.20 | 0.4799 | 881.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 14.32 | 101.77 | -16.52 | 37.24 | 0.4572 | 817.0 | 660.3 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 12.73 | 101.85 | -16.44 | 39.36 | 0.4371 | 823.0 | 602.9 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 14.39 | 101.64 | -16.65 | 37.37 | 0.4593 | 656.0 | 614.6 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 14.53 | 101.40 | -16.89 | 37.57 | 0.4632 | -778.0 | -563.8 | |
| 3.11 | 5.26 | 1.76 | 2.98 | 16.06 | 100.95 | -17.34 | 36.29 | 0.4859 | 926.2 | 681.2 | |
| 4.66 | 13.21 | 2.65 | 7.52 | 15.95 | 99.79 | -18.50 | 38.22 | 0.4952 | 1044.7 | 772.9 | |
| 0.00 | 2.24 | 0.00 | 1.27 | 15.56 | 99.76 | -18.53 | 38.77 | 0.4909 | 823.0 | 669.5 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 16.70 | 99.59 | -18.70 | 37.56 | 0.5059 | 683.0 | 531.7 | |
| 0.00 | 1.64 | 0.00 | 0.94 | 15.96 | 99.43 | -18.86 | 38.73 | 0.4987 | 761.0 | 633.8 | |
| 0.00 | 1.90 | 0.00 | 1.09 | 16.16 | 99.21 | -19.08 | 38.79 | 0.5031 | 795.0 | 638.9 | |
| 0.69 | 3.19 | 0.40 | 1.83 | 16.40 | 99.06 | -19.23 | 38.71 | 0.5073 | -411.1 | -116.9 | |
| 2.76 | 4.92 | 1.58 | 2.82 | 15.98 | 98.90 | -19.39 | 39.47 | 0.5040 | 937.3 | 720.8 | |
| 2.42 | 7.68 | 1.39 | 4.43 | 16.36 | 98.44 | -19.85 | 39.65 | 0.5127 | 874.2 | 667.9 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 15.22 | 98.06 | -20.23 | 41.70 | 0.5036 | 653.0 | 567.7 | |
| 0.95 | 12.00 | 0.56 | 7.01 | 17.30 | 97.21 | -21.08 | 40.15 | 0.5349 | 725.2 | 741.3 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 17.31 | 96.97 | -21.32 | 40.44 | 0.5372 | 470.0 | 437.4 | |
| 0.00 | 2.42 | 0.00 | 1.43 | 18.11 | 96.70 | -21.59 | 39.80 | 0.5485 | 364.0 | 466.4 | |
| 0.00 | 1.99 | 0.00 | 1.16 | 17.16 | 96.79 | -21.50 | 40.88 | 0.5373 | 664.0 | 555.7 | |
| 0.00 | 1.73 | 0.00 | 1.01 | 16.65 | 96.55 | -21.74 | 41.84 | 0.5342 | 713.0 | 654.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
