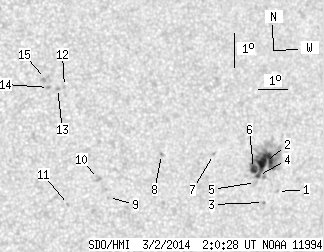

SDO HMI 2014-03-02 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.95 | 90.89 | 13.63 | 53.50 | -7.74 | 151.07 | 32.78 | 266.99 | 0.5390 | 399.6 | 234.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.77 | -8.57 | 152.71 | 34.42 | 265.39 | 0.5630 | -167.0 | -108.7 | |
| 16.31 | 70.26 | 9.70 | 41.80 | -7.72 | 152.20 | 33.91 | 266.94 | 0.5557 | 896.9 | 396.6 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -8.93 | 152.24 | 33.95 | 264.74 | 0.5562 | -356.0 | -360.1 | |
| 1.55 | -2.00 | 0.92 | -2.00 | -8.15 | 151.98 | 33.69 | 266.17 | 0.5525 | 710.5 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.33 | -8.36 | 151.89 | 33.60 | 265.78 | 0.5512 | 305.0 | 342.0 | |
| 5.09 | -2.00 | 3.01 | -2.00 | -7.95 | 151.78 | 33.49 | 266.53 | 0.5497 | 993.5 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -7.63 | 150.33 | 32.04 | 267.18 | 0.5285 | 607.0 | 476.1 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -7.75 | 148.51 | 30.22 | 267.04 | 0.5015 | -620.0 | -550.4 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -9.13 | 146.80 | 28.51 | 264.17 | 0.4756 | 653.0 | 518.3 | |
| 0.00 | 3.37 | 0.00 | 1.89 | -8.59 | 146.41 | 28.12 | 265.31 | 0.4695 | 546.0 | 448.9 | |
| 0.00 | 1.47 | 0.00 | 0.82 | -9.42 | 145.46 | 27.17 | 263.45 | 0.4553 | -623.0 | -508.8 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -5.92 | 145.09 | 26.80 | 271.21 | 0.4504 | -315.0 | -296.2 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -6.00 | 144.86 | 26.57 | 271.09 | 0.4468 | -666.0 | -542.2 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -5.98 | 144.56 | 26.27 | 271.17 | 0.4421 | -743.0 | -603.1 | |
| 0.00 | 3.37 | 0.00 | 1.86 | -5.72 | 144.44 | 26.15 | 271.78 | 0.4406 | -724.0 | -691.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
