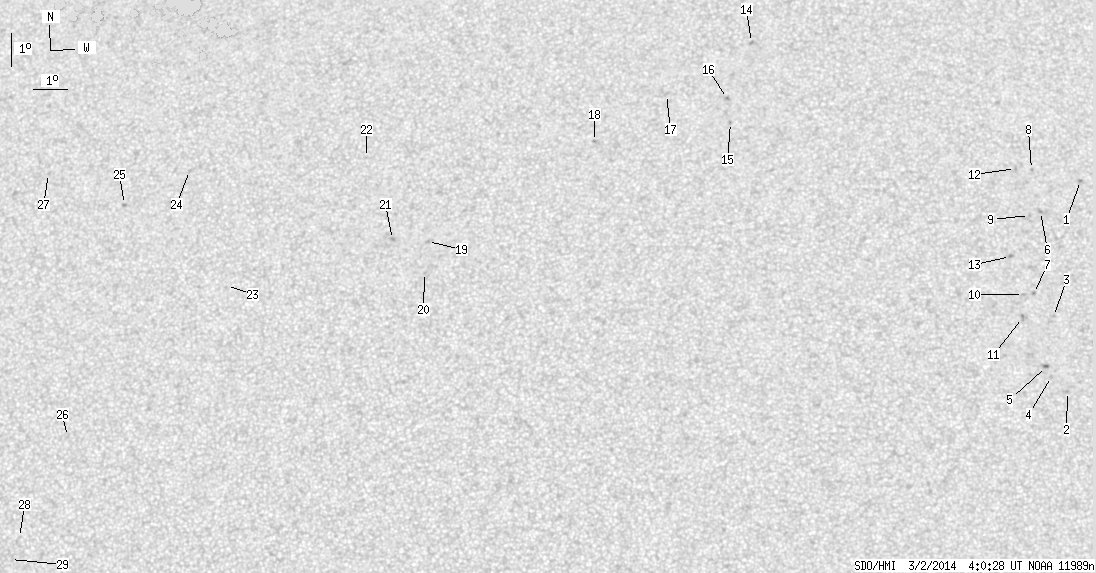

SDO HMI 2014-03-02 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 41.98 | 0.31 | 22.15 | 8.47 | 118.06 | 0.86 | 288.02 | 0.3392 | -321.8 | -284.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.74 | 10.61 | 130.22 | 13.03 | 323.85 | 0.3772 | -911.0 | -755.6 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 4.11 | 129.63 | 12.43 | 312.08 | 0.2906 | -912.0 | -746.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 6.38 | 129.25 | 12.05 | 318.29 | 0.3132 | -554.0 | -473.4 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 4.55 | 129.15 | 11.95 | 314.33 | 0.2898 | -763.0 | -632.1 | |
| 0.60 | 2.68 | 0.31 | 1.39 | 4.85 | 129.00 | 11.80 | 315.42 | 0.2917 | -1039.1 | -817.7 | |
| 0.00 | 1.99 | 0.00 | 1.05 | 9.61 | 128.95 | 11.75 | 325.04 | 0.3520 | -965.0 | -748.2 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 7.07 | 128.65 | 11.46 | 321.14 | 0.3156 | -865.0 | -710.9 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 10.91 | 128.72 | 11.53 | 327.59 | 0.3676 | -690.0 | -622.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 9.48 | 128.60 | 11.41 | 325.62 | 0.3470 | -755.0 | -610.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 7.03 | 128.35 | 11.15 | 321.83 | 0.3120 | -789.0 | -693.4 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 6.33 | 128.30 | 11.10 | 320.51 | 0.3023 | -924.0 | -793.6 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 10.93 | 128.23 | 11.03 | 328.74 | 0.3637 | -718.0 | -655.8 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 8.19 | 127.98 | 10.79 | 324.94 | 0.3238 | -917.0 | -780.4 | |
| 0.00 | 1.90 | 0.00 | 1.02 | 14.80 | 120.22 | 3.03 | 352.24 | 0.3802 | -803.0 | -593.5 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 12.25 | 119.55 | 2.35 | 353.14 | 0.3375 | -855.0 | -725.5 | |
| 0.00 | 1.55 | 0.00 | 0.82 | 13.01 | 119.47 | 2.27 | 353.64 | 0.3497 | -958.0 | -755.3 | |
| 0.00 | 2.24 | 0.00 | 1.19 | 13.13 | 117.61 | 0.41 | 358.85 | 0.3497 | -21.0 | -26.2 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 11.66 | 115.42 | -1.78 | 5.36 | 0.3267 | -801.0 | -650.6 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 8.60 | 110.40 | -6.80 | 23.28 | 0.2975 | 714.0 | 601.2 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 7.64 | 110.32 | -6.87 | 24.86 | 0.2834 | 827.0 | 690.2 | |
| 0.00 | 2.07 | 0.00 | 1.08 | 8.68 | 109.34 | -7.86 | 26.34 | 0.3061 | 959.0 | 734.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 11.25 | 108.48 | -8.72 | 25.21 | 0.3504 | -10.0 | 2.4 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 7.39 | 104.30 | -12.89 | 41.59 | 0.3349 | 459.0 | 508.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 10.99 | 103.02 | -14.18 | 37.88 | 0.3932 | 720.0 | 528.3 | |
| 0.00 | 1.90 | 0.00 | 1.03 | 10.00 | 101.03 | -16.16 | 43.25 | 0.4019 | 779.0 | 666.3 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 2.96 | 99.48 | -17.71 | 60.60 | 0.3503 | 4.0 | 1.9 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 11.07 | 98.56 | -18.63 | 45.55 | 0.4411 | 684.0 | 503.8 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -0.01 | 98.00 | -19.20 | 70.13 | 0.3511 | -24.0 | -3.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -0.66 | 97.72 | -19.48 | 72.14 | 0.3519 | 17.0 | -4.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
