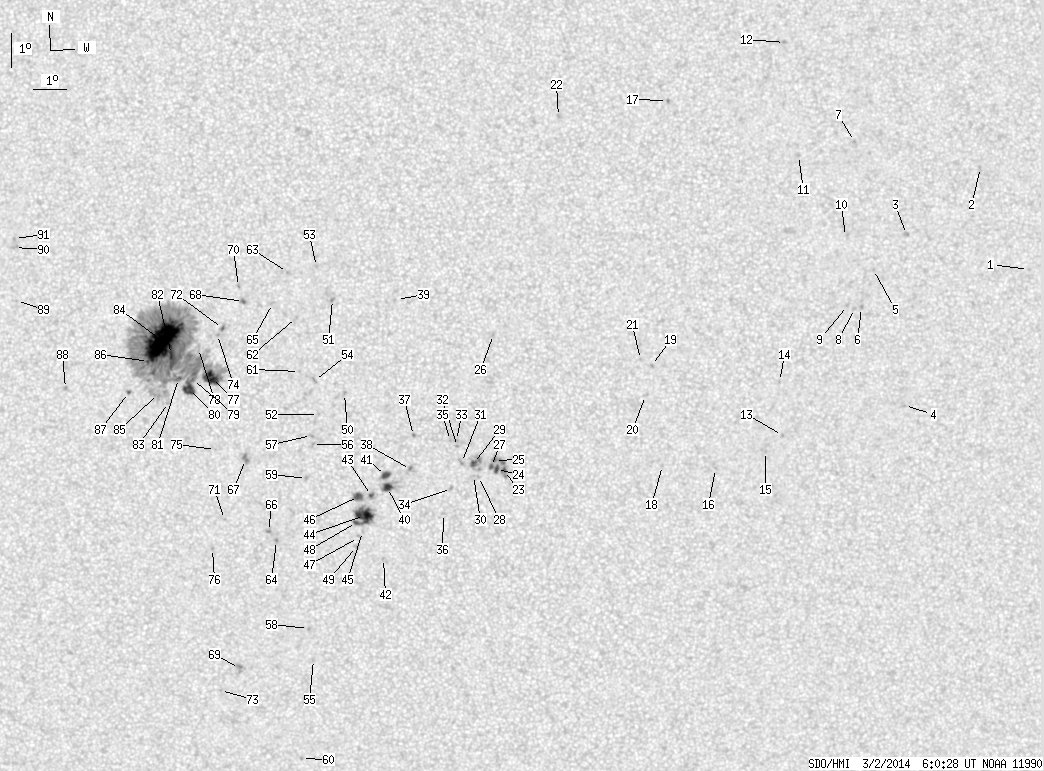

SDO HMI 2014-03-02 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.91 | 707.81 | 67.52 | 356.84 | -13.75 | 109.21 | -6.89 | 138.05 | 0.1853 | 214.0 | 169.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.58 | -10.28 | 133.25 | 17.15 | 258.56 | 0.2974 | 680.0 | 561.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -7.30 | 131.62 | 15.52 | 268.75 | 0.2666 | 724.0 | 553.9 | |
| 0.00 | 3.11 | 0.00 | 1.58 | -9.36 | 129.40 | 13.30 | 259.89 | 0.2315 | 797.0 | 636.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -14.46 | 129.59 | 13.48 | 240.23 | 0.2613 | 708.0 | 618.4 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -10.43 | 128.42 | 12.32 | 254.39 | 0.2188 | 717.0 | 565.8 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -11.57 | 128.09 | 11.99 | 248.96 | 0.2191 | 758.0 | 647.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -6.64 | 127.72 | 11.62 | 272.23 | 0.2011 | 934.0 | 755.1 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -11.60 | 127.88 | 11.77 | 248.49 | 0.2159 | 782.0 | 662.3 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -11.52 | 127.66 | 11.55 | 248.52 | 0.2119 | 907.0 | 672.4 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -9.47 | 127.52 | 11.42 | 258.01 | 0.2005 | 610.0 | 557.9 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -7.09 | 126.02 | 9.92 | 270.19 | 0.1717 | 855.0 | 643.9 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -3.74 | 125.55 | 9.45 | 289.86 | 0.1749 | 1035.0 | 840.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -15.45 | 125.81 | 9.70 | 228.33 | 0.2185 | 796.0 | 608.7 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -13.83 | 125.64 | 9.54 | 234.08 | 0.1997 | 886.0 | 657.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -15.94 | 125.30 | 9.20 | 225.15 | 0.2178 | 821.0 | 653.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -16.48 | 123.76 | 7.65 | 218.31 | 0.2070 | 707.0 | 539.8 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -5.52 | 122.05 | 5.94 | 285.80 | 0.1076 | 960.0 | 809.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -16.41 | 122.10 | 6.00 | 212.06 | 0.1897 | 749.0 | 571.5 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -13.41 | 121.68 | 5.58 | 221.16 | 0.1444 | 834.0 | 750.6 | |
| 0.00 | 2.42 | 0.00 | 1.21 | -14.31 | 121.52 | 5.42 | 216.47 | 0.1546 | 637.0 | 456.9 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -13.24 | 121.34 | 5.24 | 220.23 | 0.1383 | 781.0 | 578.8 | |
| 0.00 | 1.64 | 0.00 | 0.81 | -6.03 | 118.79 | 2.68 | 294.22 | 0.0513 | 874.0 | 701.1 | |
| 0.95 | 23.14 | 0.48 | 11.62 | -16.59 | 117.20 | 1.10 | 186.43 | 0.1643 | 1000.9 | 831.4 | |
| 2.07 | -23.00 | 1.04 | -23.00 | -16.56 | 116.95 | 0.85 | 185.00 | 0.1634 | 1124.3 | 999999 | |
| 0.60 | -23.00 | 0.30 | -23.00 | -16.29 | 116.89 | 0.78 | 184.78 | 0.1587 | 1208.1 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.64 | -12.51 | 116.85 | 0.75 | 187.86 | 0.0933 | -874.0 | -721.0 | |
| 1.04 | -23.00 | 0.52 | -23.00 | -16.47 | 116.80 | 0.69 | 184.13 | 0.1616 | 1101.2 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.78 | -16.77 | 116.39 | 0.29 | 181.68 | 0.1665 | 568.0 | 430.4 | |
| 2.33 | 11.31 | 1.17 | 5.68 | -16.38 | 116.24 | 0.14 | 180.82 | 0.1597 | 1163.2 | 876.3 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -16.74 | 116.24 | 0.13 | 180.78 | 0.1659 | 825.0 | 602.2 | |
| 0.00 | 3.28 | 0.00 | 1.65 | -16.35 | 115.87 | -0.24 | 178.57 | 0.1592 | 859.0 | 690.8 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -15.87 | 115.74 | -0.36 | 177.70 | 0.1509 | 940.0 | 733.7 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -15.69 | 115.71 | -0.39 | 177.45 | 0.1478 | 957.0 | 685.3 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -17.13 | 115.55 | -0.55 | 176.95 | 0.1729 | 1012.0 | 796.6 | |
| 0.00 | 0.60 | 0.00 | 0.30 | -15.69 | 115.53 | -0.57 | 176.24 | 0.1480 | 741.0 | 653.6 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -17.88 | 115.30 | -0.80 | 175.88 | 0.1862 | 862.0 | 705.2 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -15.53 | 114.39 | -1.71 | 168.71 | 0.1479 | -1015.0 | -845.0 | |
| 0.00 | 3.11 | 0.00 | 1.56 | -16.55 | 114.29 | -1.82 | 169.37 | 0.1656 | -1077.0 | -629.2 | |
| 0.00 | 0.60 | 0.00 | 0.30 | -11.46 | 113.91 | -2.20 | 153.04 | 0.0832 | 534.0 | 597.6 | |
| 4.84 | 20.98 | 2.43 | 10.55 | -17.09 | 113.56 | -2.54 | 166.12 | 0.1773 | -1114.7 | -635.4 | |
| 3.45 | -40.00 | 1.74 | -40.00 | -16.73 | 113.51 | -2.60 | 165.28 | 0.1715 | -1156.6 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -19.24 | 113.40 | -2.70 | 167.94 | 0.2138 | -723.0 | -552.0 | |
| 1.12 | 2.33 | 0.57 | 1.17 | -17.33 | 113.06 | -3.04 | 163.90 | 0.1834 | -1071.2 | -805.9 | |
| 16.06 | 29.71 | 8.11 | 15.00 | -17.93 | 112.83 | -3.27 | 163.71 | 0.1945 | -1205.7 | -698.9 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -18.41 | 112.76 | -3.34 | 164.09 | 0.2028 | -780.0 | -612.6 | |
| 3.80 | 6.39 | 1.92 | 3.22 | -17.36 | 112.66 | -3.45 | 161.94 | 0.1859 | -1130.0 | -879.3 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -18.60 | 112.63 | -3.47 | 163.77 | 0.2063 | -539.0 | -659.6 | |
| 1.55 | -44.00 | 0.79 | -44.00 | -18.14 | 112.58 | -3.53 | 162.86 | 0.1992 | -904.1 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.27 | -18.87 | 112.56 | -3.54 | 163.85 | 0.2111 | -1020.0 | -742.9 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -14.26 | 112.28 | -3.82 | 152.21 | 0.1392 | -1028.0 | -851.4 | |
| 0.00 | 1.90 | 0.00 | 0.95 | -11.45 | 111.96 | -4.14 | 136.21 | 0.1027 | 1066.0 | 857.4 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -14.88 | 111.47 | -4.63 | 149.66 | 0.1553 | -770.0 | -537.7 | |
| 0.00 | 1.55 | 0.00 | 0.77 | -10.46 | 111.49 | -4.61 | 125.65 | 0.0977 | 769.0 | 504.9 | |
| 0.00 | 2.42 | 0.00 | 1.21 | -13.86 | 111.37 | -4.73 | 145.32 | 0.1415 | -1117.0 | -854.6 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -22.30 | 111.09 | -5.01 | 162.76 | 0.2739 | -724.0 | -563.4 | |
| 0.00 | 2.07 | 0.00 | 1.04 | -15.78 | 111.26 | -4.84 | 151.41 | 0.1704 | -886.0 | -665.2 | |
| 0.00 | 2.07 | 0.00 | 1.04 | -15.51 | 111.24 | -4.86 | 150.48 | 0.1666 | -1017.0 | -798.7 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -21.35 | 110.97 | -5.14 | 161.16 | 0.2594 | -916.0 | -777.1 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -16.80 | 111.05 | -5.05 | 153.15 | 0.1876 | -998.0 | -624.1 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -25.37 | 110.57 | -5.53 | 164.39 | 0.3252 | -889.0 | -683.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -13.58 | 110.92 | -5.19 | 141.65 | 0.1423 | -859.0 | -618.3 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -11.97 | 110.86 | -5.24 | 132.91 | 0.1226 | 862.0 | 569.4 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -10.63 | 110.61 | -5.49 | 122.44 | 0.1120 | 936.0 | 679.4 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -18.66 | 110.05 | -6.05 | 153.30 | 0.2234 | -949.0 | -821.1 | |
| 0.00 | 1.73 | 0.00 | 0.86 | -11.54 | 110.14 | -5.97 | 126.67 | 0.1276 | 824.0 | 704.9 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -18.38 | 109.81 | -6.30 | 151.79 | 0.2212 | -962.0 | -833.4 | |
| 0.00 | 4.75 | 0.00 | 2.40 | -16.20 | 109.17 | -6.93 | 143.50 | 0.1958 | -1039.0 | -911.0 | |
| 0.43 | 2.76 | 0.22 | 1.38 | -11.47 | 109.25 | -6.85 | 122.61 | 0.1394 | 1139.2 | 834.2 | |
| 0.00 | 5.09 | 0.00 | 2.64 | -22.55 | 108.69 | -7.42 | 155.79 | 0.2920 | -898.0 | -786.8 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -11.02 | 109.11 | -6.99 | 119.28 | 0.1376 | 943.0 | 731.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -18.00 | 108.44 | -7.67 | 145.96 | 0.2277 | -809.0 | -634.8 | |
| 0.43 | 2.33 | 0.22 | 1.17 | -12.27 | 108.59 | -7.51 | 124.78 | 0.1563 | -856.6 | -515.9 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -23.22 | 108.03 | -8.07 | 154.98 | 0.3065 | -725.0 | -599.9 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -12.44 | 108.43 | -7.67 | 125.17 | 0.1602 | -652.0 | -627.9 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -15.88 | 108.25 | -7.86 | 139.04 | 0.2015 | -844.0 | -718.3 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -18.87 | 108.02 | -8.09 | 146.72 | 0.2437 | -927.0 | -704.9 | |
| 13.21 | 486.52 | 6.65 | 245.23 | -13.72 | 108.20 | -7.90 | 130.53 | 0.1765 | -1263.2 | 238.0 | |
| 0.00 | 2.76 | 0.00 | 1.39 | -12.85 | 107.83 | -8.27 | 125.25 | 0.1725 | -132.0 | -2.1 | |
| 0.86 | -77.00 | 0.44 | -77.00 | -13.77 | 107.61 | -8.49 | 128.78 | 0.1848 | -1066.5 | 999999 | |
| 9.07 | -77.00 | 4.57 | -77.00 | -14.04 | 107.48 | -8.62 | 129.49 | 0.1893 | -1157.8 | 999999 | |
| 1.38 | -77.00 | 0.70 | -77.00 | -13.73 | 107.18 | -8.92 | 127.28 | 0.1902 | -942.1 | 999999 | |
| 3.45 | -77.00 | 1.74 | -77.00 | -13.01 | 106.99 | -9.11 | 123.53 | 0.1859 | 1029.3 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -14.44 | 106.84 | -9.26 | 129.20 | 0.2020 | -804.0 | -700.5 | |
| 65.63 | -77.00 | 33.08 | -77.00 | -12.59 | 106.70 | -9.40 | 120.78 | 0.1864 | 1501.6 | 999999 | |
| 0.00 | 14.94 | 0.00 | 7.56 | -14.17 | 106.54 | -9.56 | 127.25 | 0.2032 | 235.0 | 79.4 | |
| 1.12 | -77.00 | 0.57 | -77.00 | -13.21 | 106.28 | -9.83 | 122.49 | 0.1979 | 984.3 | 999999 | |
| 0.52 | 1.73 | 0.26 | 0.88 | -14.12 | 105.61 | -10.49 | 124.62 | 0.2155 | 889.5 | 751.4 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -13.95 | 103.65 | -12.45 | 119.79 | 0.2422 | 963.0 | 798.8 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -11.28 | 102.26 | -13.84 | 107.53 | 0.2471 | -789.0 | -592.8 | |
| 0.00 | 2.59 | 0.00 | 1.32 | -9.70 | 102.28 | -13.83 | 101.20 | 0.2413 | -789.0 | -704.3 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -9.43 | 102.29 | -13.82 | 100.10 | 0.2404 | -947.0 | -759.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
