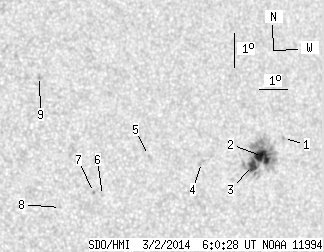

SDO HMI 2014-03-02 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.03 | 87.30 | 12.26 | 53.11 | -7.68 | 151.81 | 35.71 | 266.92 | 0.5813 | 615.1 | 361.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.59 | -7.00 | 153.20 | 37.10 | 267.97 | 0.6013 | 515.0 | 485.4 | |
| 13.73 | 76.25 | 8.41 | 46.68 | -7.59 | 152.47 | 36.36 | 267.02 | 0.5908 | 1000.6 | 462.9 | |
| 6.30 | -2.00 | 3.85 | -2.00 | -7.89 | 152.12 | 36.02 | 266.54 | 0.5858 | 991.4 | 999999 | |
| 0.00 | 3.37 | 0.00 | 2.01 | -7.93 | 150.25 | 34.15 | 266.54 | 0.5592 | -615.0 | -357.0 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -7.85 | 148.34 | 32.24 | 266.75 | 0.5314 | -424.0 | -485.1 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -9.14 | 146.84 | 30.73 | 264.26 | 0.5091 | 721.0 | 569.0 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -9.07 | 146.51 | 30.41 | 264.39 | 0.5043 | 807.0 | 690.8 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -9.58 | 145.41 | 29.31 | 263.28 | 0.4881 | -651.0 | -514.8 | |
| 0.00 | 2.94 | 0.00 | 1.65 | -5.74 | 144.42 | 28.31 | 271.35 | 0.4740 | -739.0 | -580.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
