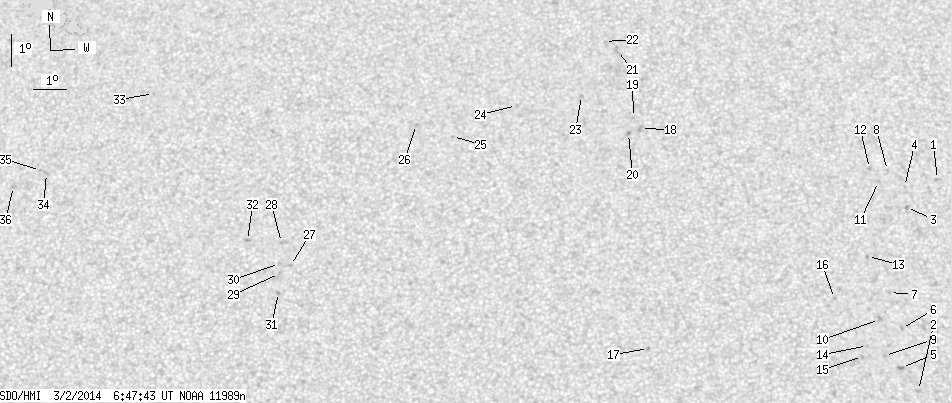

SDO HMI 2014-03-02 06:47:43 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 53.47 | 0.00 | 28.13 | 9.35 | 120.88 | 5.21 | 343.30 | 0.3361 | -362.8 | -343.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 06:47:43 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.07 | 10.67 | 130.39 | 14.72 | 320.55 | 0.3946 | -764.0 | -626.8 | |
| 0.00 | 2.16 | 0.00 | 1.12 | 4.16 | 129.57 | 13.90 | 308.98 | 0.3096 | -872.0 | -660.0 | |
| 0.00 | 1.55 | 0.00 | 0.83 | 9.77 | 129.38 | 13.71 | 321.04 | 0.3731 | -846.0 | -694.3 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 10.42 | 129.35 | 13.68 | 322.20 | 0.3810 | -864.0 | -682.4 | |
| 0.00 | 2.59 | 0.00 | 1.35 | 4.85 | 129.07 | 13.39 | 311.73 | 0.3107 | -1141.0 | -849.9 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 6.03 | 129.10 | 13.42 | 314.40 | 0.3246 | -865.0 | -732.9 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 7.13 | 128.76 | 13.09 | 317.45 | 0.3337 | -758.0 | -472.8 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 10.91 | 128.84 | 13.17 | 324.01 | 0.3824 | -723.0 | -617.6 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 5.20 | 128.55 | 12.88 | 313.69 | 0.3084 | -940.0 | -785.1 | |
| 0.00 | 2.94 | 0.00 | 1.53 | 6.29 | 128.43 | 12.75 | 316.44 | 0.3199 | -929.0 | -665.0 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 10.55 | 128.55 | 12.87 | 324.08 | 0.3750 | -755.0 | -651.6 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 10.95 | 128.29 | 12.61 | 325.25 | 0.3778 | -836.0 | -663.6 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 8.22 | 128.12 | 12.44 | 321.01 | 0.3404 | -868.0 | -688.1 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 5.49 | 128.04 | 12.37 | 315.54 | 0.3058 | -804.0 | -704.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 5.15 | 127.88 | 12.21 | 315.13 | 0.2999 | -983.0 | -720.7 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 6.90 | 127.07 | 11.39 | 320.94 | 0.3126 | -731.0 | -575.5 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 5.27 | 121.42 | 5.74 | 335.22 | 0.2388 | -828.0 | -628.6 | |
| 0.00 | 2.50 | 0.00 | 1.32 | 12.07 | 121.29 | 5.61 | 343.83 | 0.3451 | -730.0 | -663.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 12.41 | 121.08 | 5.41 | 344.67 | 0.3496 | -730.0 | -576.5 | |
| 0.00 | 1.90 | 0.00 | 1.00 | 11.91 | 120.92 | 5.24 | 344.72 | 0.3409 | -940.0 | -749.3 | |
| 0.00 | 3.80 | 0.00 | 2.03 | 14.54 | 120.64 | 4.97 | 347.26 | 0.3815 | -636.0 | -605.3 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 14.82 | 120.24 | 4.57 | 348.39 | 0.3846 | -650.0 | -487.7 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 13.10 | 119.50 | 3.83 | 349.38 | 0.3547 | -924.0 | -739.5 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 12.77 | 117.52 | 1.84 | 354.76 | 0.3449 | -724.0 | -589.2 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 11.79 | 115.56 | -0.11 | 0.33 | 0.3274 | -765.0 | -615.0 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 12.17 | 114.47 | -1.20 | 3.53 | 0.3343 | -726.0 | -564.1 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 7.81 | 110.70 | -4.98 | 18.35 | 0.2742 | 875.0 | 697.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 8.53 | 110.42 | -5.26 | 18.48 | 0.2871 | 691.0 | 562.9 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 7.57 | 110.37 | -5.30 | 19.77 | 0.2722 | 973.0 | 777.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 7.88 | 110.36 | -5.31 | 19.40 | 0.2771 | 813.0 | 615.0 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 6.99 | 110.34 | -5.33 | 20.61 | 0.2631 | 1007.0 | 785.5 | |
| 0.00 | 2.50 | 0.00 | 1.30 | 8.60 | 109.39 | -6.28 | 21.69 | 0.2942 | 891.0 | 620.0 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 13.26 | 106.40 | -9.28 | 24.24 | 0.3838 | 794.0 | 648.3 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 10.83 | 103.18 | -12.49 | 34.68 | 0.3750 | 773.0 | 600.0 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 10.92 | 102.99 | -12.68 | 34.93 | 0.3781 | 638.0 | 579.6 | |
| 0.00 | 1.55 | 0.00 | 0.83 | 10.45 | 102.17 | -13.50 | 37.39 | 0.3797 | 818.0 | 634.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
