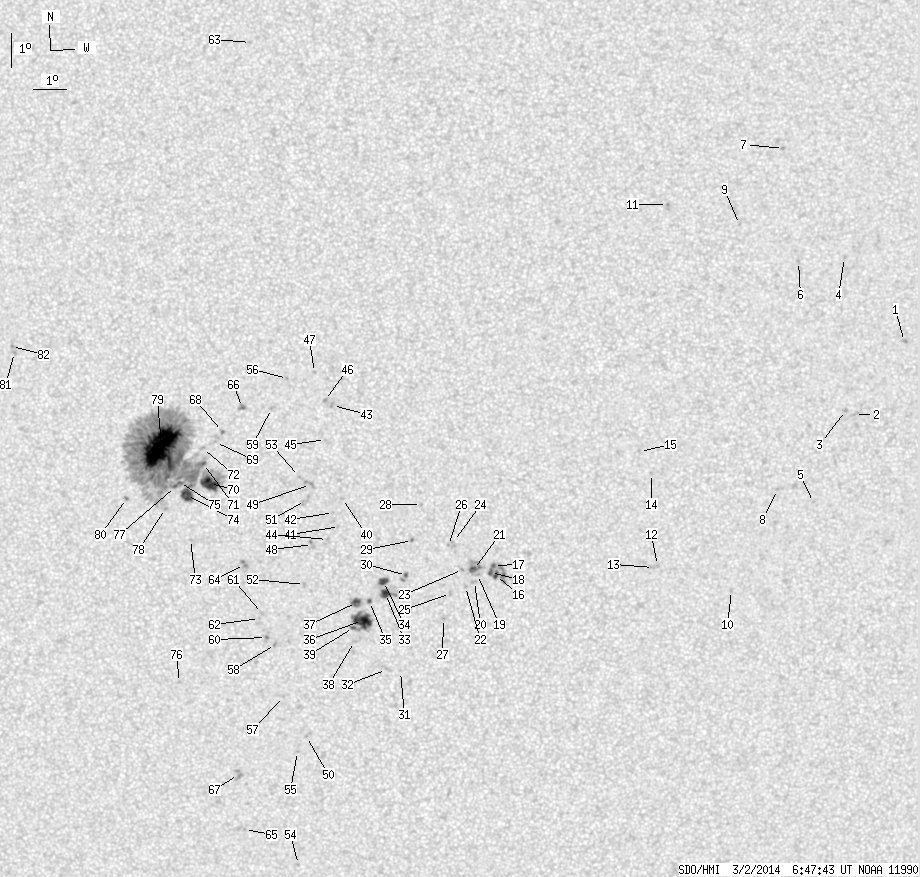

SDO HMI 2014-03-02 06:47:43 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 144.47 | 713.38 | 72.73 | 359.32 | -13.73 | 109.08 | -6.59 | 138.08 | 0.1788 | 153.4 | 135.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 06:47:43 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.01 | -9.38 | 129.40 | 13.73 | 260.07 | 0.2388 | 885.0 | 726.3 | |
| 0.00 | 3.11 | 0.00 | 1.58 | -11.59 | 127.94 | 12.27 | 249.26 | 0.2236 | 841.0 | 699.4 | |
| 0.00 | 1.99 | 0.00 | 1.01 | -11.48 | 127.66 | 11.98 | 249.34 | 0.2185 | 934.0 | 712.1 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -6.93 | 127.48 | 11.80 | 270.74 | 0.2040 | 806.0 | 675.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -14.25 | 126.79 | 11.11 | 236.34 | 0.2255 | 855.0 | 623.1 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -7.08 | 126.08 | 10.40 | 270.18 | 0.1800 | 749.0 | 542.4 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -3.73 | 125.57 | 9.90 | 289.03 | 0.1823 | 986.0 | 810.8 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -13.88 | 125.65 | 9.97 | 235.03 | 0.2062 | 939.0 | 689.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -6.02 | 124.27 | 8.60 | 277.58 | 0.1506 | 922.0 | 693.0 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -16.94 | 124.35 | 8.67 | 220.32 | 0.2240 | 747.0 | 498.2 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -5.46 | 122.09 | 6.42 | 285.18 | 0.1159 | 971.0 | 778.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -16.22 | 122.00 | 6.33 | 214.01 | 0.1902 | 786.0 | 624.4 | |
| 0.00 | 1.81 | 0.00 | 0.91 | -16.28 | 121.88 | 6.21 | 213.31 | 0.1899 | 753.0 | 487.7 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -13.46 | 121.74 | 6.07 | 223.27 | 0.1507 | 838.0 | 648.2 | |
| 0.00 | 1.55 | 0.00 | 0.78 | -12.81 | 121.36 | 5.69 | 224.65 | 0.1382 | 872.0 | 617.5 | |
| 2.16 | 21.93 | 1.08 | 11.01 | -16.55 | 116.98 | 1.31 | 187.69 | 0.1643 | 1150.4 | 856.3 | |
| 0.78 | -16.00 | 0.39 | -16.00 | -16.25 | 116.92 | 1.25 | 187.58 | 0.1590 | 1171.6 | 999999 | |
| 1.47 | -16.00 | 0.74 | -16.00 | -16.46 | 116.83 | 1.15 | 186.86 | 0.1624 | 1064.2 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -16.53 | 116.42 | 0.75 | 184.45 | 0.1627 | 934.0 | 738.1 | |
| 0.00 | 2.25 | 0.00 | 1.13 | -16.74 | 116.33 | 0.66 | 183.81 | 0.1663 | 711.0 | 656.6 | |
| 2.42 | 12.26 | 1.21 | 6.15 | -16.37 | 116.30 | 0.63 | 183.78 | 0.1600 | 1222.7 | 928.2 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -16.89 | 116.05 | 0.38 | 182.16 | 0.1686 | 820.0 | 577.1 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -16.37 | 115.96 | 0.29 | 181.73 | 0.1597 | 865.0 | 759.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -15.53 | 115.68 | 0.01 | 180.06 | 0.1450 | 812.0 | 599.3 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -17.10 | 115.59 | -0.09 | 179.51 | 0.1721 | 909.0 | 644.3 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -15.65 | 115.53 | -0.15 | 179.04 | 0.1471 | 781.0 | 620.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -17.85 | 115.37 | -0.31 | 178.42 | 0.1852 | 778.0 | 677.3 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -14.42 | 114.70 | -0.97 | 172.52 | 0.1268 | -837.0 | -484.5 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -15.50 | 114.42 | -1.26 | 171.65 | 0.1460 | -1045.0 | -908.9 | |
| 0.60 | 4.58 | 0.30 | 2.30 | -16.55 | 114.22 | -1.45 | 171.48 | 0.1645 | -1097.6 | -725.2 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -19.45 | 114.01 | -1.67 | 172.62 | 0.2145 | -800.0 | -697.0 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -19.39 | 113.57 | -2.11 | 170.65 | 0.2145 | -858.0 | -546.1 | |
| 4.66 | 16.06 | 2.35 | 8.08 | -17.09 | 113.57 | -2.11 | 168.40 | 0.1757 | -1116.1 | -726.6 | |
| 3.97 | -33.00 | 2.00 | -33.00 | -16.73 | 113.51 | -2.17 | 167.64 | 0.1698 | -1183.3 | 999999 | |
| 0.86 | 1.99 | 0.43 | 1.00 | -17.33 | 113.06 | -2.61 | 166.09 | 0.1816 | -1028.7 | -763.5 | |
| 17.27 | 30.48 | 8.72 | 15.39 | -17.90 | 112.84 | -2.84 | 165.74 | 0.1921 | -1177.3 | -747.2 | |
| 3.54 | 7.25 | 1.78 | 3.65 | -17.36 | 112.66 | -3.01 | 164.08 | 0.1838 | -1130.4 | -872.8 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -18.53 | 112.57 | -3.10 | 165.36 | 0.2037 | -714.0 | -591.9 | |
| 0.78 | -36.00 | 0.39 | -36.00 | -18.11 | 112.55 | -3.12 | 164.68 | 0.1968 | -1001.6 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -14.23 | 112.28 | -3.39 | 154.81 | 0.1355 | -937.0 | -717.7 | |
| 0.00 | 0.60 | 0.00 | 0.30 | -15.07 | 112.17 | -3.50 | 156.64 | 0.1494 | -384.0 | -389.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -14.64 | 112.00 | -3.68 | 154.35 | 0.1441 | -908.0 | -676.1 | |
| 0.00 | 1.90 | 0.00 | 0.95 | -11.45 | 112.02 | -3.66 | 139.73 | 0.0971 | 883.0 | 838.7 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -15.45 | 111.80 | -3.88 | 155.53 | 0.1581 | -848.0 | -602.8 | |
| 0.00 | 0.60 | 0.00 | 0.30 | -12.46 | 111.79 | -3.88 | 144.10 | 0.1134 | 598.0 | 455.1 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -11.30 | 111.78 | -3.90 | 136.89 | 0.0980 | 883.0 | 759.3 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -10.46 | 111.49 | -4.19 | 128.27 | 0.0919 | 903.0 | 690.1 | |
| 0.00 | 3.63 | 0.00 | 1.82 | -15.60 | 111.33 | -4.34 | 153.42 | 0.1638 | -674.0 | -800.4 | |
| 0.00 | 5.01 | 0.00 | 2.50 | -13.80 | 111.31 | -4.37 | 147.19 | 0.1371 | -888.0 | -821.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -21.41 | 110.98 | -4.70 | 162.75 | 0.2581 | -871.0 | -723.6 | |
| 0.00 | 5.18 | 0.00 | 2.59 | -14.28 | 111.14 | -4.53 | 148.10 | 0.1456 | -819.0 | -753.5 | |
| 0.00 | 2.33 | 0.00 | 1.17 | -16.80 | 111.05 | -4.62 | 155.15 | 0.1844 | -871.0 | -665.1 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -13.56 | 110.97 | -4.70 | 144.23 | 0.1369 | -867.0 | -715.1 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -25.37 | 110.56 | -5.11 | 165.53 | 0.3234 | -857.0 | -684.3 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -21.87 | 110.67 | -5.00 | 162.28 | 0.2670 | -703.0 | -579.5 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -10.63 | 110.66 | -5.01 | 124.85 | 0.1051 | 911.0 | 729.4 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -20.18 | 110.29 | -5.39 | 158.58 | 0.2424 | -832.0 | -596.3 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -18.60 | 110.09 | -5.58 | 154.99 | 0.2191 | -920.0 | -848.5 | |
| 0.00 | 1.55 | 0.00 | 0.78 | -11.52 | 110.16 | -5.51 | 128.66 | 0.1211 | 1098.0 | 750.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -18.38 | 109.81 | -5.86 | 153.47 | 0.2179 | -1023.0 | -891.2 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -17.66 | 109.71 | -5.96 | 151.42 | 0.2077 | -920.0 | -673.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -17.81 | 109.61 | -6.06 | 151.38 | 0.2108 | -786.0 | -543.5 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -0.62 | 109.66 | -6.01 | 42.47 | 0.1559 | -853.0 | -686.2 | |
| 0.00 | 4.06 | 0.00 | 2.05 | -16.17 | 109.20 | -6.47 | 145.27 | 0.1909 | -1096.0 | -935.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -24.26 | 108.84 | -6.83 | 159.73 | 0.3144 | -734.0 | -601.4 | |
| 0.35 | 3.97 | 0.17 | 1.99 | -11.48 | 109.28 | -6.40 | 124.40 | 0.1329 | 1146.0 | 810.2 | |
| 0.00 | 6.22 | 0.00 | 3.22 | -22.55 | 108.74 | -6.93 | 157.19 | 0.2889 | -813.0 | -757.9 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -12.18 | 108.65 | -7.03 | 126.10 | 0.1487 | -876.0 | -669.1 | |
| 0.00 | 0.60 | 0.00 | 0.30 | -12.51 | 108.42 | -7.25 | 127.02 | 0.1550 | 377.0 | 138.0 | |
| 14.77 | 510.03 | 7.42 | 256.83 | -13.73 | 108.20 | -7.47 | 132.10 | 0.1710 | -1250.7 | 205.9 | |
| 0.95 | -70.00 | 0.48 | -70.00 | -13.13 | 108.04 | -7.64 | 128.72 | 0.1667 | -901.3 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -12.68 | 108.02 | -7.65 | 126.46 | 0.1623 | -418.0 | -265.7 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -15.39 | 107.55 | -8.12 | 136.42 | 0.1985 | -738.0 | -500.7 | |
| 8.98 | -70.00 | 4.53 | -70.00 | -14.07 | 107.48 | -8.19 | 131.04 | 0.1842 | -1181.1 | 999999 | |
| 0.95 | -70.00 | 0.48 | -70.00 | -13.68 | 107.28 | -8.40 | 128.68 | 0.1826 | -822.6 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -19.70 | 107.00 | -8.68 | 146.83 | 0.2608 | -944.0 | -648.2 | |
| 0.86 | -70.00 | 0.44 | -70.00 | -13.80 | 107.15 | -8.52 | 128.78 | 0.1855 | -1034.8 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -14.45 | 106.81 | -8.86 | 130.43 | 0.1969 | -936.0 | -799.5 | |
| 79.10 | -70.00 | 39.82 | -70.00 | -12.59 | 106.76 | -8.91 | 122.12 | 0.1793 | 1438.8 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -14.12 | 105.61 | -10.06 | 125.74 | 0.2096 | 1002.0 | 784.2 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -9.68 | 102.34 | -13.33 | 101.46 | 0.2330 | -907.0 | -746.2 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -9.50 | 102.25 | -13.42 | 100.64 | 0.2340 | -809.0 | -699.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
