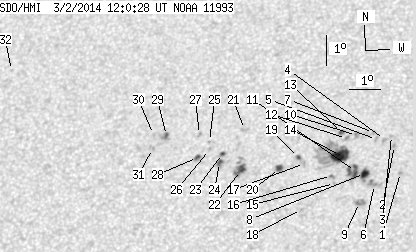

SDO HMI 2014-03-02 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.77 | 163.97 | 21.33 | 90.25 | 16.17 | 101.99 | -10.83 | 24.40 | 0.4368 | -236.6 | -145.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.84 | 15.67 | 104.79 | -8.03 | 19.13 | 0.4123 | -860.0 | -634.8 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 16.55 | 104.57 | -8.26 | 18.91 | 0.4266 | -900.0 | -760.3 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 16.88 | 104.46 | -8.36 | 18.88 | 0.4320 | -870.0 | -716.9 | |
| 0.00 | 2.59 | 0.00 | 1.42 | 16.75 | 104.24 | -8.58 | 19.43 | 0.4313 | -842.0 | -726.5 | |
| 0.00 | 2.16 | 0.00 | 1.18 | 16.76 | 103.99 | -8.83 | 19.95 | 0.4327 | -846.0 | -708.6 | |
| 0.00 | 5.96 | 0.00 | 3.23 | 15.30 | 103.99 | -8.83 | 21.20 | 0.4111 | -1119.0 | -838.8 | |
| 0.00 | 1.55 | 0.00 | 0.85 | 16.99 | 103.89 | -8.93 | 19.97 | 0.4366 | -679.0 | -575.3 | |
| 4.66 | 22.02 | 2.54 | 12.00 | 15.67 | 103.67 | -9.16 | 21.58 | 0.4183 | -994.5 | -740.8 | |
| 0.00 | 6.48 | 0.00 | 3.51 | 14.74 | 103.55 | -9.27 | 22.71 | 0.4053 | -835.0 | -820.0 | |
| 0.00 | 3.71 | 0.00 | 2.04 | 16.90 | 103.36 | -9.47 | 21.13 | 0.4383 | -790.0 | -628.5 | |
| 3.80 | -8.00 | 2.07 | -8.00 | 15.74 | 103.38 | -9.44 | 22.12 | 0.4211 | -966.5 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.28 | 16.81 | 103.05 | -9.78 | 21.84 | 0.4387 | -868.0 | -676.2 | |
| 1.04 | 3.02 | 0.57 | 1.67 | 17.01 | 102.88 | -9.94 | 22.00 | 0.4426 | -748.3 | -548.8 | |
| 15.28 | 56.72 | 8.38 | 31.16 | 16.27 | 102.89 | -9.94 | 22.66 | 0.4317 | -1005.3 | -166.9 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 15.37 | 102.74 | -10.08 | 23.83 | 0.4196 | -752.0 | -595.2 | |
| 0.00 | 1.90 | 0.00 | 1.04 | 15.63 | 102.64 | -10.19 | 23.79 | 0.4240 | -729.0 | -589.7 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 16.04 | 101.77 | -11.06 | 25.15 | 0.4356 | 828.0 | 616.1 | |
| 0.00 | 1.90 | 0.00 | 1.03 | 14.56 | 101.75 | -11.07 | 26.76 | 0.4147 | 836.0 | 550.9 | |
| 0.86 | 2.50 | 0.48 | 1.38 | 16.24 | 101.56 | -11.26 | 25.35 | 0.4397 | 873.2 | 632.1 | |
| 2.59 | 4.40 | 1.43 | 2.43 | 15.90 | 100.98 | -11.84 | 26.83 | 0.4389 | 1042.5 | 784.9 | |
| 0.00 | 3.19 | 0.00 | 1.79 | 17.20 | 99.79 | -13.03 | 27.70 | 0.4653 | 722.0 | 636.1 | |
| 5.27 | 13.12 | 2.91 | 7.27 | 15.87 | 99.75 | -13.07 | 29.21 | 0.4476 | 1088.9 | 781.9 | |
| 0.95 | 2.07 | 0.53 | 1.15 | 16.44 | 99.14 | -13.68 | 29.69 | 0.4599 | -267.1 | -237.5 | |
| 1.73 | 3.28 | 0.96 | 1.82 | 16.15 | 99.07 | -13.76 | 30.15 | 0.4566 | 881.0 | 793.2 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 16.84 | 98.70 | -14.13 | 30.03 | 0.4687 | 784.0 | 584.0 | |
| 0.00 | 1.47 | 0.00 | 0.82 | 16.58 | 98.72 | -14.11 | 30.29 | 0.4651 | 532.0 | 463.6 | |
| 0.00 | 1.73 | 0.00 | 0.97 | 17.08 | 98.36 | -14.47 | 30.35 | 0.4745 | 722.0 | 616.8 | |
| 1.55 | 2.85 | 0.87 | 1.59 | 16.33 | 98.35 | -14.47 | 31.21 | 0.4647 | 896.0 | 691.3 | |
| 1.04 | 5.61 | 0.59 | 3.17 | 17.09 | 97.29 | -15.53 | 32.14 | 0.4830 | 920.4 | 774.8 | |
| 0.00 | 1.47 | 0.00 | 0.83 | 17.14 | 96.87 | -15.95 | 32.79 | 0.4870 | 698.0 | 558.5 | |
| 0.00 | 2.94 | 0.00 | 1.66 | 16.68 | 96.88 | -15.95 | 33.31 | 0.4812 | 746.0 | 559.8 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 19.46 | 91.93 | -20.90 | 37.32 | 0.5569 | -631.0 | -521.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
