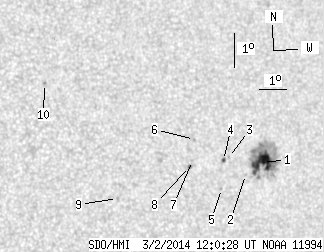

SDO HMI 2014-03-02 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.61 | 82.96 | 15.78 | 53.11 | -7.53 | 152.37 | 39.55 | 266.93 | 0.6344 | 604.6 | 315.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.14 | 72.61 | 14.86 | 46.71 | -7.52 | 152.72 | 39.90 | 266.92 | 0.6392 | 962.2 | 356.4 | |
| 0.00 | 1.21 | 0.00 | 0.77 | -7.92 | 152.11 | 39.28 | 266.31 | 0.6307 | 430.0 | 462.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -7.47 | 151.40 | 38.58 | 267.08 | 0.6214 | 567.0 | 537.8 | |
| 0.95 | 2.16 | 0.60 | 1.36 | -7.58 | 151.22 | 38.40 | 266.92 | 0.6189 | 691.7 | 613.1 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -8.41 | 151.23 | 38.41 | 265.57 | 0.6188 | 788.0 | 658.9 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -7.04 | 150.06 | 37.24 | 267.88 | 0.6033 | -516.0 | -425.8 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -7.66 | 150.05 | 37.23 | 266.84 | 0.6027 | -563.0 | -427.4 | |
| 0.52 | 1.55 | 0.32 | 0.96 | -7.85 | 149.95 | 37.13 | 266.53 | 0.6014 | -667.2 | -605.8 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -8.99 | 147.40 | 34.58 | 264.62 | 0.5652 | 669.0 | 548.5 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -5.75 | 144.51 | 31.69 | 270.76 | 0.5248 | -832.0 | -686.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
