SDO HMI 2014-03-02 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.68 | 20.02 | 1.47 | 11.30 | 8.20 | 136.16 | 23.89 | 302.99 | 0.4773 | 62.4 | 133.8 | |
|
previous
or next observation for the same group /

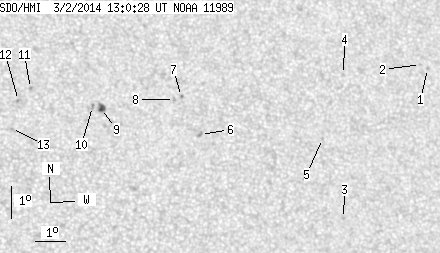

back to the solar disc SDO HMI 2014-03-02 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.74 | 9.93 | 144.53 | 32.25 | 297.68 | 0.5959 | -590.0 | -486.5 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 10.03 | 144.29 | 32.02 | 298.02 | 0.5936 | -679.0 | -554.7 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 5.11 | 141.21 | 28.94 | 292.33 | 0.5231 | -801.0 | -685.7 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 9.54 | 141.54 | 29.26 | 299.49 | 0.5560 | -624.0 | -412.6 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 7.52 | 140.64 | 28.37 | 296.94 | 0.5305 | -719.0 | -623.7 | |
| 0.00 | 2.33 | 0.00 | 1.31 | 7.41 | 136.55 | 24.28 | 300.64 | 0.4759 | 843.0 | 686.4 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 8.55 | 136.00 | 23.73 | 303.29 | 0.4780 | -521.0 | -521.9 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 8.44 | 135.76 | 23.49 | 303.37 | 0.4741 | -814.0 | -568.2 | |
| 2.68 | 5.09 | 1.47 | 2.81 | 8.05 | 133.37 | 21.10 | 305.59 | 0.4401 | 915.7 | 733.2 | |
| 0.00 | 1.99 | 0.00 | 1.09 | 8.10 | 133.08 | 20.81 | 306.06 | 0.4369 | 753.0 | 694.2 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 8.57 | 131.13 | 18.85 | 309.72 | 0.4172 | 917.0 | 808.3 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 8.19 | 130.73 | 18.45 | 309.60 | 0.4084 | 905.0 | 811.0 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 7.31 | 130.47 | 18.19 | 308.32 | 0.3964 | 825.0 | 700.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
