SDO HMI 2014-03-02 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 61.30 | 0.00 | 32.45 | 8.52 | 120.88 | 9.16 | 325.52 | 0.3535 | -368.1 | -290.1 | |
|
previous
or next observation for the same group /

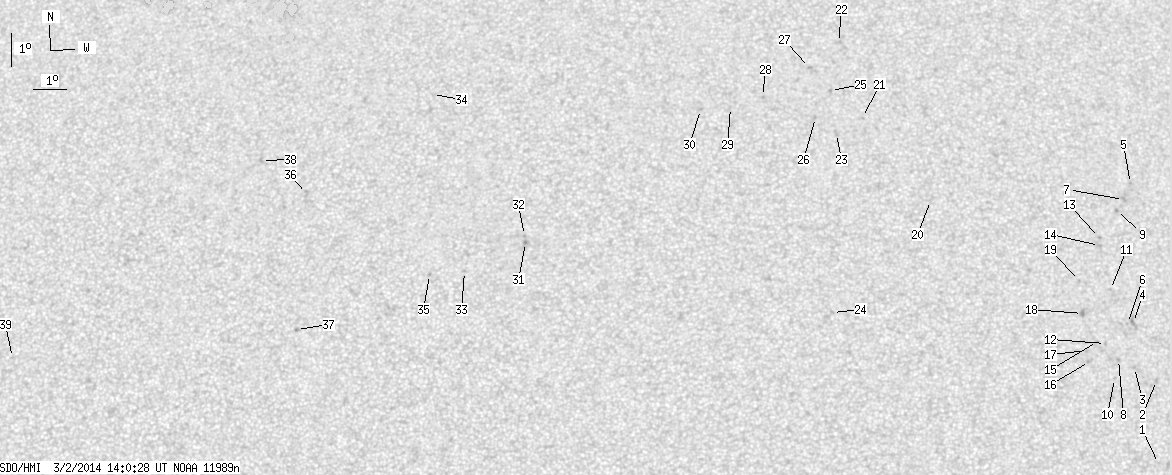

back to the solar disc SDO HMI 2014-03-02 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.41 | 1.88 | 130.01 | 18.29 | 295.83 | 0.3500 | -16.0 | -2.8 | |
| 0.00 | 1.99 | 0.00 | 1.06 | 4.39 | 130.00 | 18.27 | 301.94 | 0.3700 | -758.0 | -557.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 4.75 | 129.32 | 17.59 | 303.79 | 0.3641 | -932.0 | -767.2 | |
| 0.00 | 5.44 | 0.00 | 2.91 | 6.13 | 129.33 | 17.61 | 306.80 | 0.3772 | -720.0 | -572.2 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 10.41 | 129.44 | 17.72 | 314.78 | 0.4235 | -839.0 | -792.0 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 6.09 | 129.14 | 17.42 | 307.02 | 0.3744 | -834.0 | -679.6 | |
| 0.00 | 2.42 | 0.00 | 1.31 | 9.91 | 129.19 | 17.47 | 314.32 | 0.4151 | -733.0 | -671.7 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 4.98 | 128.83 | 17.10 | 305.09 | 0.3596 | -935.0 | -748.2 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 9.56 | 128.95 | 17.23 | 314.11 | 0.4085 | -906.0 | -696.1 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 4.40 | 128.69 | 16.96 | 303.97 | 0.3522 | -652.0 | -507.7 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 7.11 | 128.65 | 16.92 | 309.97 | 0.3785 | -763.0 | -616.0 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 5.45 | 128.43 | 16.71 | 306.80 | 0.3590 | -864.0 | -686.0 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 8.70 | 128.37 | 16.65 | 313.53 | 0.3923 | -885.0 | -693.1 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 8.45 | 128.36 | 16.64 | 313.09 | 0.3895 | -778.0 | -674.4 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 5.50 | 128.19 | 16.46 | 307.33 | 0.3563 | -755.0 | -637.6 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 4.89 | 127.92 | 16.20 | 306.38 | 0.3467 | -854.0 | -531.8 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 5.22 | 127.84 | 16.11 | 307.29 | 0.3489 | -843.0 | -630.8 | |
| 0.00 | 3.19 | 0.00 | 1.69 | 6.34 | 127.75 | 16.02 | 309.94 | 0.3593 | -944.0 | -851.8 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 7.35 | 127.69 | 15.96 | 312.13 | 0.3695 | -756.0 | -667.9 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 9.69 | 123.17 | 11.44 | 325.85 | 0.3499 | 7.0 | 0.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.24 | 121.17 | 9.45 | 334.18 | 0.3698 | -648.0 | -542.8 | |
| 0.00 | 2.68 | 0.00 | 1.45 | 14.60 | 120.52 | 8.80 | 338.22 | 0.4005 | -609.0 | -564.3 | |
| 0.00 | 2.59 | 0.00 | 1.37 | 11.72 | 120.35 | 8.63 | 335.55 | 0.3565 | -719.0 | -528.2 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 6.17 | 120.09 | 8.37 | 327.86 | 0.2732 | 738.0 | 530.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 13.07 | 120.21 | 8.49 | 337.40 | 0.3758 | -740.0 | -627.8 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 12.21 | 119.72 | 8.00 | 337.69 | 0.3598 | -886.0 | -661.6 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 13.79 | 119.59 | 7.87 | 339.60 | 0.3830 | -704.0 | -639.4 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.85 | 118.12 | 6.39 | 342.41 | 0.3607 | -831.0 | -700.2 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 12.49 | 117.13 | 5.40 | 344.72 | 0.3505 | -29.0 | -11.9 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 12.42 | 116.21 | 4.49 | 347.18 | 0.3458 | -836.0 | -642.7 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 8.25 | 110.89 | -0.83 | 3.09 | 0.2684 | 984.0 | 843.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 8.47 | 110.86 | -0.86 | 3.16 | 0.2721 | 683.0 | 528.6 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 7.37 | 109.06 | -2.66 | 10.37 | 0.2571 | 796.0 | 697.5 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 12.89 | 108.05 | -3.68 | 10.32 | 0.3508 | -1.0 | -0.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 7.29 | 108.01 | -3.71 | 14.39 | 0.2595 | 825.0 | 647.3 | |
| 0.00 | 2.93 | 0.00 | 1.53 | 9.84 | 104.26 | -7.46 | 23.63 | 0.3205 | 606.0 | 619.8 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 5.66 | 104.03 | -7.69 | 30.98 | 0.2599 | 913.0 | 750.3 | |
| 0.00 | 2.33 | 0.00 | 1.23 | 10.90 | 102.86 | -8.86 | 26.04 | 0.3460 | 878.0 | 647.1 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 5.05 | 95.37 | -16.35 | 53.50 | 0.3504 | -14.0 | 0.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
