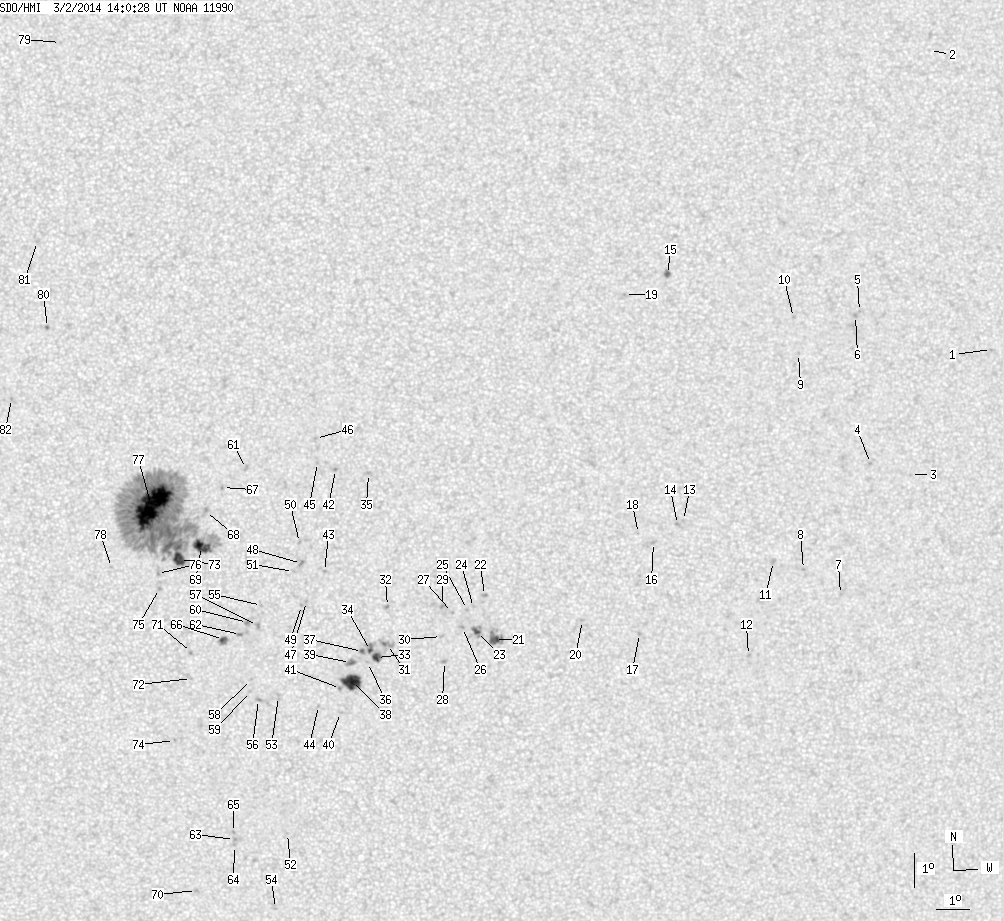

SDO HMI 2014-03-02 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.32 | 705.90 | 60.22 | 353.51 | -13.48 | 109.00 | -2.72 | 154.78 | 0.1431 | 177.4 | 154.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.55 | -7.45 | 132.41 | 20.68 | 268.03 | 0.3520 | 837.0 | 605.5 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 1.38 | 130.29 | 18.56 | 294.20 | 0.3505 | -2.0 | -3.9 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -11.27 | 130.04 | 18.31 | 256.01 | 0.3190 | 658.0 | 573.5 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.98 | 128.75 | 17.02 | 256.11 | 0.2974 | 943.0 | 810.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -6.48 | 128.20 | 16.48 | 271.57 | 0.2832 | 785.0 | 590.9 | |
| 0.00 | 2.16 | 0.00 | 1.11 | -6.61 | 128.08 | 16.35 | 271.16 | 0.2810 | 967.0 | 791.4 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -14.92 | 128.06 | 16.33 | 242.92 | 0.3066 | 798.0 | 616.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -14.21 | 126.83 | 15.10 | 243.49 | 0.2835 | 869.0 | 695.3 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -7.79 | 126.35 | 14.62 | 266.80 | 0.2517 | 804.0 | 644.2 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -6.73 | 126.16 | 14.43 | 271.08 | 0.2487 | 861.0 | 692.2 | |
| 0.00 | 2.68 | 0.00 | 1.38 | -14.00 | 125.86 | 14.14 | 242.80 | 0.2677 | 855.0 | 681.1 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -16.84 | 125.26 | 13.54 | 232.72 | 0.2828 | 831.0 | 646.7 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -12.85 | 122.99 | 11.26 | 242.18 | 0.2163 | 850.0 | 701.0 | |
| 0.00 | 2.16 | 0.00 | 1.09 | -12.97 | 122.81 | 11.08 | 241.30 | 0.2145 | 857.0 | 666.3 | |
| 1.38 | 4.32 | 0.70 | 2.17 | -5.55 | 122.28 | 10.55 | 278.44 | 0.1851 | 1059.1 | 823.6 | |
| 0.00 | 2.33 | 0.00 | 1.18 | -13.53 | 122.08 | 10.36 | 237.39 | 0.2085 | 924.0 | 714.9 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -16.26 | 121.77 | 10.05 | 226.49 | 0.2320 | 865.0 | 681.7 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -13.27 | 121.61 | 9.88 | 237.32 | 0.1994 | 715.0 | 488.6 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -6.17 | 120.98 | 9.26 | 275.96 | 0.1616 | -926.0 | -702.3 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -15.90 | 119.97 | 8.25 | 222.19 | 0.2064 | 842.0 | 584.8 | |
| 4.75 | 14.93 | 2.39 | 7.53 | -16.51 | 117.25 | 5.53 | 209.68 | 0.1874 | 1064.8 | 834.6 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -15.19 | 116.91 | 5.18 | 212.06 | 0.1650 | 970.0 | 836.1 | |
| 2.16 | 7.34 | 1.09 | 3.69 | -16.28 | 116.69 | 4.96 | 207.74 | 0.1792 | 1153.2 | 852.7 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -15.56 | 116.58 | 4.85 | 209.26 | 0.1675 | 637.0 | 488.8 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -15.62 | 116.39 | 4.67 | 208.15 | 0.1669 | 793.0 | 689.8 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -16.16 | 116.25 | 4.52 | 205.94 | 0.1740 | 1074.0 | 820.6 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -15.71 | 115.93 | 4.21 | 205.50 | 0.1648 | 972.0 | 798.2 | |
| 0.00 | 2.68 | 0.00 | 1.35 | -17.19 | 115.71 | 3.99 | 200.96 | 0.1866 | 1009.0 | 746.7 | |
| 0.00 | 2.07 | 0.00 | 1.04 | -15.53 | 115.62 | 3.89 | 204.30 | 0.1597 | 1036.0 | 800.9 | |
| 0.00 | 1.81 | 0.00 | 0.91 | -16.44 | 115.60 | 3.88 | 202.02 | 0.1739 | 847.0 | 593.3 | |
| 0.00 | 7.16 | 0.00 | 3.60 | -16.69 | 113.93 | 2.21 | 192.63 | 0.1694 | -815.0 | -799.6 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -15.54 | 113.92 | 2.20 | 194.30 | 0.1502 | 886.0 | 726.6 | |
| 4.14 | 15.28 | 2.08 | 7.68 | -17.08 | 113.59 | 1.87 | 190.32 | 0.1749 | -1068.4 | -792.7 | |
| 1.29 | -33.00 | 0.65 | -33.00 | -16.87 | 113.41 | 1.68 | 189.51 | 0.1708 | -1198.5 | 999999 | |
| 0.00 | 2.76 | 0.00 | 1.37 | -11.57 | 113.31 | 1.59 | 199.68 | 0.0810 | 908.0 | 714.8 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -17.23 | 113.31 | 1.59 | 188.67 | 0.1767 | -870.0 | -706.5 | |
| 0.78 | 2.33 | 0.39 | 1.17 | -16.90 | 113.16 | 1.43 | 188.10 | 0.1707 | -1155.4 | -1000.6 | |
| 17.09 | 21.06 | 8.61 | 10.61 | -17.80 | 112.82 | 1.10 | 185.66 | 0.1855 | -1151.6 | -734.7 | |
| 0.00 | 5.01 | 0.00 | 2.52 | -17.23 | 112.79 | 1.06 | 185.81 | 0.1756 | -1051.0 | -963.4 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -18.74 | 112.48 | 0.76 | 183.58 | 0.2011 | -816.0 | -542.8 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -18.02 | 112.48 | 0.75 | 183.82 | 0.1886 | -935.0 | -730.1 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -11.45 | 112.31 | 0.59 | 187.75 | 0.0748 | 1046.0 | 904.3 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -14.50 | 111.98 | 0.25 | 181.93 | 0.1273 | -897.0 | -701.6 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -18.53 | 111.79 | 0.07 | 180.32 | 0.1970 | -740.0 | -503.9 | |
| 0.00 | 1.04 | 0.00 | 0.51 | -11.24 | 111.77 | 0.04 | 180.59 | 0.0705 | 762.0 | 618.8 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -10.53 | 111.71 | -0.02 | 179.70 | 0.0580 | 904.0 | 641.2 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -15.40 | 111.42 | -0.30 | 177.96 | 0.1430 | -966.0 | -761.4 | |
| 0.00 | 2.85 | 0.00 | 1.42 | -14.26 | 111.27 | -0.45 | 176.43 | 0.1233 | -1091.0 | -914.9 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -15.52 | 111.27 | -0.46 | 176.96 | 0.1452 | -988.0 | -782.8 | |
| 0.00 | 1.55 | 0.00 | 0.77 | -13.63 | 111.21 | -0.51 | 175.56 | 0.1125 | -909.0 | -786.5 | |
| 0.00 | 1.90 | 0.00 | 0.95 | -14.50 | 111.03 | -0.70 | 174.68 | 0.1278 | -803.0 | -517.8 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -22.44 | 110.79 | -0.93 | 176.71 | 0.2641 | -726.0 | -510.7 | |
| 0.00 | 2.50 | 0.00 | 1.26 | -18.26 | 110.54 | -1.19 | 174.14 | 0.1933 | -740.0 | -628.8 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -24.76 | 110.38 | -1.35 | 175.95 | 0.3035 | -919.0 | -717.9 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -15.51 | 110.04 | -1.69 | 168.86 | 0.1477 | -946.0 | -745.4 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -18.34 | 109.91 | -1.81 | 171.16 | 0.1962 | -873.0 | -788.8 | |
| 0.00 | 2.33 | 0.00 | 1.17 | -16.11 | 109.91 | -1.82 | 168.85 | 0.1583 | -1025.0 | -888.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -17.74 | 109.70 | -2.02 | 169.57 | 0.1865 | -1053.0 | -774.8 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -18.10 | 109.67 | -2.06 | 169.75 | 0.1928 | -852.0 | -541.9 | |
| 0.00 | 2.59 | 0.00 | 1.30 | -16.02 | 109.60 | -2.13 | 166.88 | 0.1579 | -941.0 | -857.7 | |
| 0.00 | 2.59 | 0.00 | 1.29 | -11.42 | 109.61 | -2.11 | 153.77 | 0.0820 | 1034.0 | 712.6 | |
| 0.00 | 1.90 | 0.00 | 0.95 | -16.38 | 109.38 | -2.35 | 166.14 | 0.1648 | -972.0 | -846.8 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -22.61 | 109.08 | -2.64 | 170.90 | 0.2702 | -988.0 | -888.0 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -22.80 | 109.08 | -2.65 | 171.00 | 0.2733 | -781.0 | -647.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -22.40 | 109.06 | -2.67 | 170.66 | 0.2667 | -871.0 | -743.4 | |
| 2.33 | 5.18 | 1.17 | 2.60 | -16.53 | 108.85 | -2.88 | 163.45 | 0.1696 | -1109.2 | -852.2 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -11.98 | 108.88 | -2.84 | 149.71 | 0.0967 | 851.0 | 679.8 | |
| 0.00 | 4.57 | 0.00 | 2.28 | -12.69 | 108.35 | -3.37 | 149.01 | 0.1119 | -716.0 | -485.4 | |
| 12.00 | 518.40 | 5.99 | 258.93 | -13.73 | 108.22 | -3.51 | 152.38 | 0.1289 | -1141.0 | 230.0 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -24.18 | 107.81 | -3.91 | 167.96 | 0.2999 | -871.0 | -640.0 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -16.91 | 107.85 | -3.88 | 159.00 | 0.1814 | 912.0 | 811.8 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -17.69 | 107.83 | -3.90 | 160.43 | 0.1941 | 732.0 | 526.7 | |
| 9.06 | -69.00 | 4.53 | -69.00 | -14.11 | 107.53 | -4.19 | 149.51 | 0.1403 | -1165.6 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -19.57 | 107.25 | -4.48 | 161.04 | 0.2275 | -835.0 | -736.6 | |
| 0.00 | 1.55 | 0.00 | 0.78 | -14.98 | 106.90 | -4.82 | 149.03 | 0.1586 | -1007.0 | -743.3 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -14.53 | 106.85 | -4.88 | 147.19 | 0.1525 | -828.0 | -635.0 | |
| 65.34 | -69.00 | 32.62 | -69.00 | -12.49 | 106.71 | -5.01 | 137.26 | 0.1263 | 1422.0 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -14.33 | 105.44 | -6.29 | 139.55 | 0.1643 | 726.0 | 458.8 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 1.34 | 104.12 | -7.60 | 41.84 | 0.1991 | 713.0 | 577.2 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -7.15 | 103.66 | -8.06 | 90.01 | 0.1398 | -1054.0 | -816.8 | |
| 0.00 | 1.73 | 0.00 | 0.86 | -4.59 | 103.40 | -8.32 | 72.84 | 0.1517 | -867.0 | -692.8 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -9.24 | 102.52 | -9.20 | 103.13 | 0.1628 | -930.0 | -795.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
