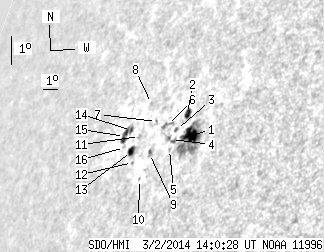

SDO HMI 2014-03-02 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.29 | 92.10 | 28.82 | 103.46 | 12.81 | 50.69 | -61.03 | 71.86 | 0.8992 | -106.7 | -64.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.69 | 49.11 | 13.62 | 52.67 | 12.66 | 52.05 | -59.67 | 71.65 | 0.8892 | -608.3 | -269.0 | |
| 3.28 | 5.18 | 3.60 | 5.68 | 13.40 | 51.57 | -60.16 | 70.98 | 0.8943 | -421.9 | -265.9 | |
| 0.00 | 1.64 | 0.00 | 1.82 | 12.96 | 51.07 | -60.66 | 71.61 | 0.8971 | -350.0 | -225.0 | |
| 0.00 | 4.06 | 0.00 | 4.52 | 12.67 | 50.87 | -60.85 | 71.97 | 0.8980 | -77.0 | -121.8 | |
| 0.00 | 1.21 | 0.00 | 1.35 | 12.36 | 50.87 | -60.86 | 72.31 | 0.8974 | -203.0 | -141.1 | |
| 0.00 | 5.35 | 0.00 | 6.09 | 13.16 | 50.41 | -61.31 | 71.57 | 0.9022 | 262.0 | 205.9 | |
| 0.00 | 1.12 | 0.00 | 1.32 | 13.38 | 49.60 | -62.13 | 71.56 | 0.9083 | -163.0 | -132.5 | |
| 0.00 | 1.21 | 0.00 | 1.46 | 14.01 | 48.96 | -62.76 | 71.06 | 0.9138 | 189.0 | 242.5 | |
| 0.00 | 2.42 | 0.00 | 2.81 | 12.38 | 49.57 | -62.15 | 72.64 | 0.9067 | 653.0 | 514.6 | |
| 0.00 | 0.95 | 0.00 | 1.11 | 11.61 | 49.22 | -62.50 | 73.55 | 0.9077 | 177.0 | 288.5 | |
| 0.00 | 2.07 | 0.00 | 2.51 | 13.02 | 48.62 | -63.10 | 72.20 | 0.9143 | 454.0 | 480.5 | |
| 0.00 | 0.86 | 0.00 | 1.04 | 12.23 | 48.50 | -63.23 | 73.08 | 0.9138 | 275.0 | 228.0 | |
| 3.88 | 5.61 | 4.75 | 6.86 | 12.59 | 48.27 | -63.46 | 72.75 | 0.9159 | 473.7 | 345.8 | |
| 0.95 | 10.53 | 1.18 | 13.25 | 13.29 | 47.94 | -63.78 | 72.10 | 0.9192 | 418.2 | 268.7 | |
| 4.49 | -14.00 | 5.67 | -14.00 | 13.15 | 47.52 | -64.21 | 72.35 | 0.9218 | 218.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.97 | 12.79 | 47.69 | -64.03 | 72.69 | 0.9200 | 358.0 | 275.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
