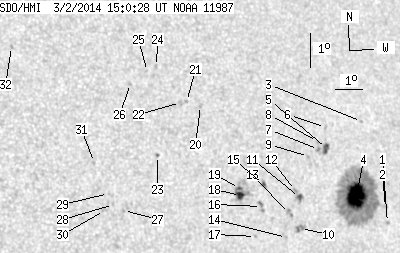

SDO HMI 2014-03-02 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.35 | 244.05 | 27.65 | 162.51 | -1.35 | 152.73 | 41.55 | 276.13 | 0.6689 | -434.8 | -236.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.89 | -2.11 | 155.22 | 44.05 | 274.43 | 0.6992 | 563.0 | 472.9 | |
| 0.00 | 1.73 | 0.00 | 1.19 | -1.64 | 155.12 | 43.95 | 275.12 | 0.6989 | -71.0 | -145.6 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 0.82 | 154.13 | 42.95 | 278.87 | 0.6919 | -604.0 | -455.1 | |
| 29.95 | 169.41 | 20.28 | 114.81 | -1.41 | 153.93 | 42.75 | 275.71 | 0.6844 | -1159.0 | -265.5 | |
| 3.19 | 5.26 | 2.13 | 3.51 | -0.10 | 152.71 | 41.53 | 277.92 | 0.6718 | -758.6 | -566.9 | |
| 0.00 | 1.21 | 0.00 | 0.81 | 0.52 | 152.67 | 41.50 | 278.85 | 0.6729 | -731.0 | -596.1 | |
| 0.00 | 1.81 | 0.00 | 1.20 | -0.16 | 152.39 | 41.22 | 277.93 | 0.6676 | -854.0 | -767.7 | |
| 0.00 | 1.04 | 0.00 | 0.69 | 0.08 | 152.35 | 41.18 | 278.29 | 0.6677 | -661.0 | -592.1 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -0.40 | 152.00 | 40.82 | 277.68 | 0.6619 | -827.0 | -641.0 | |
| 0.00 | 5.78 | 0.00 | 3.78 | -2.58 | 151.73 | 40.55 | 274.47 | 0.6538 | -641.0 | -610.1 | |
| 1.73 | 3.45 | 1.13 | 2.26 | -1.66 | 151.66 | 40.49 | 275.88 | 0.6547 | -871.2 | -743.2 | |
| 0.00 | 1.55 | 0.00 | 1.01 | -1.46 | 151.50 | 40.32 | 276.22 | 0.6531 | -802.0 | -690.7 | |
| 0.00 | 4.14 | 0.00 | 2.69 | -2.17 | 151.28 | 40.11 | 275.20 | 0.6487 | -697.0 | -706.4 | |
| 0.00 | 1.12 | 0.00 | 0.73 | -2.89 | 151.19 | 40.02 | 274.11 | 0.6462 | -629.0 | -546.6 | |
| 0.95 | 2.85 | 0.61 | 1.83 | -1.38 | 150.26 | 39.08 | 276.66 | 0.6369 | -701.2 | -664.7 | |
| 0.00 | 4.14 | 0.00 | 2.65 | -2.04 | 150.20 | 39.02 | 275.65 | 0.6346 | -821.0 | -758.6 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -2.96 | 150.00 | 38.82 | 274.26 | 0.6301 | -642.0 | -542.9 | |
| 4.49 | 18.38 | 2.84 | 11.64 | -1.78 | 149.39 | 38.21 | 276.27 | 0.6243 | 672.9 | -62.1 | |
| 1.04 | -18.00 | 0.66 | -18.00 | -1.57 | 149.35 | 38.17 | 276.61 | 0.6242 | 539.4 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.08 | 0.80 | 147.87 | 36.70 | 280.86 | 0.6107 | 632.0 | 519.2 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 0.88 | 147.36 | 36.18 | 281.18 | 0.6040 | 585.0 | 512.2 | |
| 0.00 | 2.59 | 0.00 | 1.60 | 0.84 | 147.14 | 35.96 | 281.19 | 0.6008 | 687.0 | 546.5 | |
| 0.00 | 1.38 | 0.00 | 0.84 | -0.81 | 146.29 | 35.12 | 278.77 | 0.5842 | 560.0 | 619.9 | |
| 0.00 | 1.73 | 0.00 | 1.06 | 1.85 | 146.28 | 35.10 | 283.21 | 0.5926 | 722.0 | 530.0 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 1.68 | 145.95 | 34.77 | 283.07 | 0.5874 | 691.0 | 622.4 | |
| 0.00 | 1.47 | 0.00 | 0.89 | 1.28 | 145.32 | 34.15 | 282.66 | 0.5774 | 711.0 | 606.2 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -2.54 | 145.09 | 33.92 | 276.16 | 0.5629 | 720.0 | 626.6 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -2.39 | 144.73 | 33.56 | 276.54 | 0.5581 | 616.0 | 494.0 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -2.07 | 144.54 | 33.37 | 277.16 | 0.5562 | 434.0 | 349.6 | |
| 0.00 | 2.07 | 0.00 | 1.23 | -2.59 | 144.42 | 33.24 | 276.28 | 0.5531 | 663.0 | 679.4 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -1.18 | 144.03 | 32.86 | 278.92 | 0.5512 | 775.0 | 635.2 | |
| 0.00 | 1.47 | 0.00 | 0.85 | 2.11 | 141.16 | 29.98 | 286.22 | 0.5222 | 561.0 | 551.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
