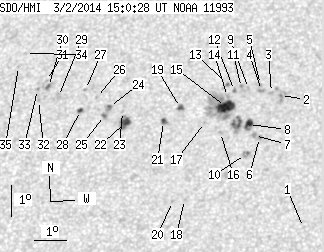

SDO HMI 2014-03-02 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.90 | 150.75 | 15.84 | 82.52 | 16.17 | 102.10 | -9.07 | 20.79 | 0.4264 | -125.5 | -205.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.68 | 12.40 | 105.43 | -5.74 | 16.26 | 0.3507 | 15.0 | 0.9 | |
| 0.00 | 7.59 | 0.00 | 4.14 | 16.64 | 104.61 | -6.57 | 15.19 | 0.4201 | -871.0 | -711.5 | |
| 0.00 | 2.07 | 0.00 | 1.13 | 16.74 | 104.32 | -6.85 | 15.75 | 0.4229 | -685.0 | -690.5 | |
| 0.00 | 2.42 | 0.00 | 1.32 | 16.81 | 104.01 | -7.17 | 16.38 | 0.4253 | -941.0 | -770.5 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 17.01 | 103.97 | -7.21 | 16.33 | 0.4285 | -644.0 | -547.8 | |
| 0.00 | 1.81 | 0.00 | 0.98 | 15.29 | 104.00 | -7.18 | 17.51 | 0.4022 | -1019.0 | -784.6 | |
| 0.00 | 2.50 | 0.00 | 1.35 | 15.36 | 103.84 | -7.33 | 17.82 | 0.4040 | -1032.0 | -886.3 | |
| 4.14 | 21.83 | 2.25 | 11.86 | 15.72 | 103.64 | -7.53 | 17.99 | 0.4104 | -971.8 | -822.9 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 16.89 | 103.60 | -7.58 | 17.21 | 0.4283 | -734.0 | -646.5 | |
| 0.00 | 4.23 | 0.00 | 2.28 | 14.75 | 103.58 | -7.59 | 18.90 | 0.3961 | -734.0 | -773.2 | |
| 0.00 | 2.07 | 0.00 | 1.14 | 16.92 | 103.38 | -7.80 | 17.65 | 0.4299 | -694.0 | -622.6 | |
| 0.00 | 1.81 | 0.00 | 0.99 | 16.83 | 103.16 | -8.01 | 18.18 | 0.4295 | -823.0 | -669.3 | |
| 0.00 | 1.64 | 0.00 | 0.90 | 17.03 | 102.93 | -8.24 | 18.51 | 0.4336 | -710.0 | -614.8 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 16.64 | 102.95 | -8.23 | 18.78 | 0.4277 | -364.0 | -429.1 | |
| 14.24 | 51.70 | 7.78 | 28.25 | 16.31 | 102.90 | -8.28 | 19.14 | 0.4231 | -1011.0 | -239.6 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 15.48 | 102.78 | -8.40 | 20.10 | 0.4113 | -759.0 | -626.9 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 15.81 | 102.26 | -8.91 | 20.92 | 0.4191 | -595.0 | -352.5 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 13.36 | 101.74 | -9.43 | 24.50 | 0.3861 | 749.0 | 670.6 | |
| 1.38 | 2.93 | 0.76 | 1.61 | 16.31 | 101.49 | -9.69 | 22.10 | 0.4309 | 909.7 | 758.6 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 13.30 | 101.37 | -9.80 | 25.40 | 0.3878 | 769.0 | 594.8 | |
| 1.29 | 2.85 | 0.71 | 1.56 | 15.87 | 100.98 | -10.20 | 23.57 | 0.4277 | 1031.6 | 850.3 | |
| 4.57 | 10.87 | 2.51 | 5.98 | 15.87 | 99.78 | -11.39 | 25.98 | 0.4355 | 1088.8 | 852.8 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 16.23 | 99.67 | -11.51 | 25.84 | 0.4413 | 688.0 | 504.2 | |
| 0.60 | 8.03 | 0.33 | 4.43 | 16.40 | 99.25 | -11.93 | 26.47 | 0.4467 | -371.9 | 344.2 | |
| 0.52 | -24.00 | 0.29 | -24.00 | 16.12 | 99.10 | -12.07 | 27.05 | 0.4437 | 993.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 16.71 | 98.81 | -12.36 | 26.97 | 0.4539 | 812.0 | 650.2 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 16.98 | 98.45 | -12.73 | 27.37 | 0.4602 | 905.0 | 760.1 | |
| 1.38 | 2.33 | 0.77 | 1.29 | 16.30 | 98.33 | -12.84 | 28.31 | 0.4518 | 767.2 | 657.5 | |
| 0.00 | 3.80 | 0.00 | 2.12 | 16.78 | 97.60 | -13.58 | 29.12 | 0.4637 | 813.0 | 597.7 | |
| 0.78 | 2.16 | 0.44 | 1.21 | 17.12 | 97.25 | -13.92 | 29.37 | 0.4708 | 954.1 | 808.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 17.31 | 97.17 | -14.00 | 29.29 | 0.4740 | 628.0 | 505.6 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 16.67 | 96.97 | -14.21 | 30.36 | 0.4671 | 757.0 | 592.8 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 17.03 | 96.91 | -14.27 | 30.07 | 0.4723 | 707.0 | 590.5 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 18.23 | 96.42 | -14.75 | 29.60 | 0.4916 | 589.0 | 444.9 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 17.81 | 96.23 | -14.94 | 30.36 | 0.4876 | 690.0 | 537.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
