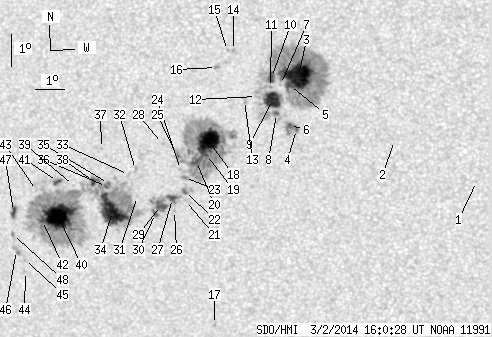

SDO HMI 2014-03-02 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 225.57 | 1022.07 | 123.90 | 560.73 | -24.77 | 91.79 | -18.83 | 136.77 | 0.4261 | -25.7 | -7.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.50 | -25.84 | 101.87 | -8.75 | 156.86 | 0.3501 | 25.0 | 22.9 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -24.50 | 99.25 | -11.37 | 149.05 | 0.3504 | 8.0 | 8.1 | |
| 40.47 | 259.14 | 21.41 | 137.04 | -22.40 | 96.27 | -14.35 | 139.19 | 0.3522 | 1311.3 | 491.8 | |
| 0.78 | 11.48 | 0.41 | 6.13 | -24.06 | 96.02 | -14.61 | 141.88 | 0.3746 | 824.1 | 674.5 | |
| 3.02 | -3.00 | 1.60 | -3.00 | -22.70 | 95.94 | -14.68 | 139.17 | 0.3592 | 842.5 | 999999 | |
| 1.90 | -4.00 | 1.01 | -4.00 | -23.93 | 95.80 | -14.83 | 141.25 | 0.3753 | 1010.7 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -22.66 | 95.65 | -14.98 | 138.55 | 0.3619 | 596.0 | 556.0 | |
| 1.29 | 16.14 | 0.69 | 8.63 | -23.55 | 95.41 | -15.22 | 139.84 | 0.3747 | 803.5 | 185.2 | |
| 18.73 | 33.31 | 9.98 | 17.75 | -23.11 | 95.33 | -15.30 | 138.87 | 0.3705 | 1033.7 | 476.6 | |
| 4.40 | -3.00 | 2.34 | -3.00 | -22.43 | 95.37 | -15.25 | 137.62 | 0.3623 | 1038.9 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -22.74 | 95.30 | -15.32 | 138.10 | 0.3665 | 1035.0 | 753.2 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -23.00 | 94.80 | -15.82 | 137.75 | 0.3749 | 164.0 | 167.1 | |
| 0.00 | 3.11 | 0.00 | 1.66 | -23.11 | 94.39 | -16.24 | 137.27 | 0.3807 | 687.0 | 517.2 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -21.56 | 94.21 | -16.42 | 133.84 | 0.3660 | 996.0 | 794.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -21.56 | 94.01 | -16.62 | 133.51 | 0.3683 | 717.0 | 564.3 | |
| 0.00 | 2.24 | 0.00 | 1.20 | -22.06 | 93.58 | -17.05 | 133.88 | 0.3786 | 882.0 | 788.3 | |
| 0.00 | 1.55 | 0.00 | 0.88 | -30.12 | 92.23 | -18.39 | 145.33 | 0.4818 | -763.0 | -624.4 | |
| 34.69 | 210.90 | 18.81 | 114.60 | -24.30 | 93.00 | -17.62 | 137.31 | 0.4087 | 1266.1 | 203.8 | |
| 0.95 | -18.00 | 0.52 | -18.00 | -24.74 | 92.87 | -17.75 | 137.89 | 0.4148 | 820.4 | 999999 | |
| 4.31 | -18.00 | 2.35 | -18.00 | -24.94 | 92.49 | -18.13 | 137.69 | 0.4210 | 210.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -26.14 | 91.92 | -18.70 | 138.92 | 0.4399 | -734.0 | -527.2 | |
| 1.12 | 6.73 | 0.62 | 3.70 | -25.86 | 91.93 | -18.69 | 138.46 | 0.4368 | -1021.4 | -755.6 | |
| 0.00 | 2.85 | 0.00 | 1.56 | -25.42 | 92.00 | -18.62 | 137.82 | 0.4313 | -511.0 | -450.1 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -25.17 | 91.91 | -18.72 | 137.24 | 0.4297 | -698.0 | -582.6 | |
| 1.04 | -18.00 | 0.57 | -18.00 | -24.76 | 91.87 | -18.76 | 136.47 | 0.4258 | 650.5 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -26.44 | 91.48 | -19.14 | 138.80 | 0.4476 | -314.0 | -261.6 | |
| 3.62 | 31.93 | 2.00 | 17.68 | -26.06 | 91.48 | -19.15 | 138.17 | 0.4436 | -1080.0 | -578.4 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -24.34 | 91.42 | -19.21 | 135.09 | 0.4264 | 702.0 | 607.8 | |
| 6.82 | -27.00 | 3.78 | -27.00 | -26.27 | 91.02 | -19.60 | 137.89 | 0.4505 | -1008.6 | 999999 | |
| 1.81 | -27.00 | 1.01 | -27.00 | -26.51 | 90.80 | -19.82 | 138.00 | 0.4554 | -818.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -25.95 | 90.27 | -20.36 | 136.37 | 0.4552 | -845.0 | -644.2 | |
| 0.00 | 2.85 | 0.00 | 1.57 | -25.11 | 90.35 | -20.27 | 135.03 | 0.4459 | 568.0 | 360.2 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -25.25 | 90.08 | -20.55 | 134.94 | 0.4503 | -290.0 | -273.5 | |
| 43.49 | 405.15 | 24.38 | 228.91 | -26.38 | 89.30 | -21.32 | 135.88 | 0.4699 | -1146.0 | -419.5 | |
| 0.60 | -34.00 | 0.34 | -34.00 | -25.50 | 89.33 | -21.30 | 134.43 | 0.4610 | -1030.4 | 999999 | |
| 1.21 | -34.00 | 0.67 | -34.00 | -25.59 | 89.24 | -21.38 | 134.48 | 0.4628 | -887.1 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -24.40 | 89.28 | -21.34 | 132.46 | 0.4511 | -845.0 | -755.8 | |
| 3.45 | -34.00 | 1.93 | -34.00 | -25.42 | 88.81 | -21.81 | 133.67 | 0.4659 | 765.9 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -25.51 | 88.08 | -22.54 | 132.98 | 0.4749 | -188.0 | -137.4 | |
| 44.10 | -34.00 | 25.05 | -34.00 | -26.45 | 87.35 | -23.27 | 133.73 | 0.4916 | -1287.7 | 999999 | |
| 2.42 | 4.23 | 1.36 | 2.38 | -25.36 | 87.54 | -23.08 | 132.12 | 0.4796 | -1053.4 | -886.7 | |
| 1.73 | -34.00 | 0.99 | -34.00 | -26.55 | 86.75 | -23.88 | 133.24 | 0.4991 | -797.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -25.60 | 86.74 | -23.89 | 131.67 | 0.4908 | -524.0 | -462.0 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -28.12 | 85.75 | -24.87 | 134.69 | 0.5239 | -503.0 | -451.8 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -27.74 | 85.81 | -24.82 | 134.16 | 0.5199 | -629.0 | -574.5 | |
| 0.00 | 4.23 | 0.00 | 2.45 | -27.44 | 85.58 | -25.04 | 133.47 | 0.5197 | -767.0 | -669.9 | |
| 3.62 | 6.13 | 2.08 | 3.52 | -26.21 | 85.77 | -24.86 | 131.69 | 0.5071 | -791.1 | -616.7 | |
| 0.00 | 1.55 | 0.00 | 0.90 | -26.93 | 85.56 | -25.06 | 132.64 | 0.5155 | -670.0 | -488.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
