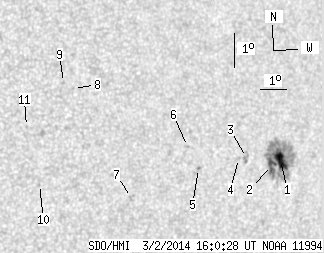

SDO HMI 2014-03-02 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.55 | 96.40 | 12.35 | 63.70 | -7.49 | 152.31 | 41.68 | 266.85 | 0.6624 | 505.0 | 321.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.08 | 80.94 | 8.06 | 53.96 | -7.41 | 153.01 | 42.39 | 266.93 | 0.6718 | 919.8 | 330.6 | |
| 6.47 | -1.00 | 4.29 | -1.00 | -7.59 | 152.67 | 42.05 | 266.68 | 0.6673 | 922.8 | 999999 | |
| 0.00 | 5.01 | 0.00 | 3.27 | -7.43 | 151.65 | 41.02 | 266.98 | 0.6541 | 827.0 | 684.9 | |
| 0.00 | 1.81 | 0.00 | 1.18 | -7.49 | 151.34 | 40.71 | 266.92 | 0.6499 | 488.0 | 466.3 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -7.91 | 149.81 | 39.19 | 266.34 | 0.6295 | -671.0 | -644.6 | |
| 0.00 | 1.47 | 0.00 | 0.93 | -7.29 | 149.32 | 38.70 | 267.36 | 0.6231 | 685.0 | 576.4 | |
| 0.00 | 2.76 | 0.00 | 1.70 | -8.96 | 147.37 | 36.75 | 264.69 | 0.5958 | 692.0 | 566.9 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -5.88 | 144.95 | 34.33 | 270.16 | 0.5631 | -573.0 | -408.0 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -5.73 | 144.58 | 33.96 | 270.49 | 0.5580 | -827.0 | -704.9 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -8.81 | 143.97 | 33.35 | 264.93 | 0.5475 | -685.0 | -519.8 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -7.12 | 143.35 | 32.73 | 268.07 | 0.5389 | -526.0 | -539.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
