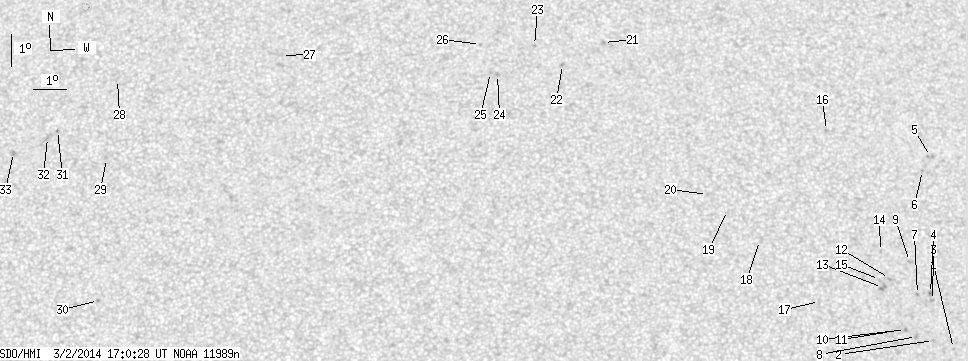

SDO HMI 2014-03-02 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 50.70 | 0.00 | 27.06 | 8.88 | 119.99 | 9.91 | 331.68 | 0.3694 | -429.7 | -328.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.65 | 4.51 | 130.06 | 19.98 | 299.89 | 0.3946 | -758.0 | -623.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 4.72 | 129.43 | 19.36 | 301.19 | 0.3878 | -952.0 | -781.1 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 5.94 | 129.44 | 19.37 | 303.79 | 0.3986 | -661.0 | -512.0 | |
| 0.00 | 1.55 | 0.00 | 0.84 | 6.15 | 129.38 | 19.31 | 304.31 | 0.3998 | -783.0 | -721.3 | |
| 0.00 | 2.24 | 0.00 | 1.24 | 10.38 | 129.61 | 19.54 | 311.93 | 0.4440 | -756.0 | -725.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 9.94 | 129.32 | 19.25 | 311.58 | 0.4360 | -900.0 | -785.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 6.10 | 128.97 | 18.90 | 304.80 | 0.3939 | -782.0 | -691.1 | |
| 0.00 | 2.16 | 0.00 | 1.16 | 4.82 | 128.90 | 18.82 | 302.15 | 0.3814 | -948.0 | -819.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 7.10 | 128.76 | 18.69 | 307.16 | 0.4006 | -768.0 | -632.9 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 5.02 | 128.55 | 18.48 | 303.08 | 0.3785 | -899.0 | -755.1 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 4.94 | 128.11 | 18.04 | 303.56 | 0.3719 | -855.0 | -666.7 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 6.56 | 128.11 | 18.03 | 307.05 | 0.3870 | -834.0 | -699.5 | |
| 0.00 | 3.62 | 0.00 | 1.94 | 6.27 | 127.87 | 17.80 | 306.81 | 0.3813 | -959.0 | -886.1 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 7.38 | 127.86 | 17.78 | 309.10 | 0.3920 | -708.0 | -637.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 6.52 | 127.79 | 17.72 | 307.45 | 0.3825 | -763.0 | -603.8 | |
| 0.00 | 1.55 | 0.00 | 0.84 | 11.07 | 126.34 | 16.27 | 318.32 | 0.4154 | -819.0 | -612.4 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 5.78 | 125.89 | 15.82 | 309.08 | 0.3509 | -2.0 | -6.6 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 7.58 | 124.09 | 14.02 | 316.37 | 0.3496 | -6.0 | -5.4 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 8.48 | 123.14 | 13.07 | 320.11 | 0.3502 | -1.0 | 7.9 | |
| 0.00 | 1.55 | 0.00 | 0.82 | 8.96 | 122.54 | 12.47 | 322.29 | 0.3501 | -13.0 | -3.7 | |
| 0.00 | 2.24 | 0.00 | 1.21 | 13.65 | 119.52 | 9.44 | 335.79 | 0.3905 | -737.0 | -676.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 12.93 | 118.22 | 8.15 | 338.08 | 0.3716 | -882.0 | -739.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 13.51 | 117.38 | 7.31 | 340.70 | 0.3758 | -767.0 | -570.5 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 12.58 | 116.22 | 6.14 | 342.83 | 0.3554 | -898.0 | -737.0 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 12.64 | 116.00 | 5.93 | 343.44 | 0.3554 | -891.0 | -696.2 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 13.52 | 115.72 | 5.65 | 344.87 | 0.3680 | -754.0 | -529.2 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 13.15 | 109.63 | -0.44 | 1.23 | 0.3497 | 23.0 | 46.1 | |
| 0.00 | 1.81 | 0.00 | 0.96 | 12.43 | 104.64 | -5.44 | 15.41 | 0.3498 | 2.0 | 1.0 | |
| 0.00 | 1.47 | 0.00 | 0.76 | 9.96 | 104.35 | -5.73 | 18.44 | 0.3121 | 603.0 | 481.1 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 5.59 | 104.16 | -5.91 | 24.86 | 0.2449 | 934.0 | 741.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 10.85 | 102.84 | -7.23 | 21.79 | 0.3346 | 865.0 | 683.6 | |
| 0.00 | 3.45 | 0.00 | 1.81 | 10.64 | 102.54 | -7.53 | 22.85 | 0.3333 | 808.0 | 628.5 | |
| 0.00 | 2.24 | 0.00 | 1.18 | 10.19 | 101.51 | -8.56 | 26.18 | 0.3335 | 680.0 | 630.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
