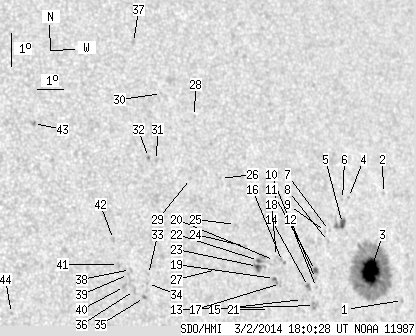

SDO HMI 2014-03-02 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.46 | 243.30 | 24.52 | 165.78 | -1.34 | 152.52 | 43.00 | 275.83 | 0.6870 | -351.2 | -214.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.49 | -2.19 | 155.33 | 45.81 | 273.97 | 0.7206 | 619.0 | 545.8 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 0.94 | 154.50 | 44.98 | 278.47 | 0.7169 | -394.0 | -318.5 | |
| 28.73 | 167.48 | 20.01 | 116.66 | -1.45 | 153.96 | 44.44 | 275.29 | 0.7052 | -1161.8 | -281.8 | |
| 0.00 | 0.78 | 0.00 | 0.54 | 0.69 | 153.04 | 43.52 | 278.52 | 0.6986 | -500.0 | -454.3 | |
| 2.93 | 8.71 | 2.01 | 5.96 | -0.11 | 152.79 | 43.26 | 277.46 | 0.6936 | -712.8 | -609.9 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 0.61 | 152.79 | 43.27 | 278.48 | 0.6953 | -680.0 | -519.3 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -0.37 | 152.26 | 42.73 | 277.23 | 0.6864 | -595.0 | -519.9 | |
| 0.00 | 1.29 | 0.00 | 0.88 | -0.70 | 152.22 | 42.70 | 276.76 | 0.6852 | -319.0 | -305.1 | |
| 0.00 | 0.43 | 0.00 | 0.29 | -0.41 | 152.09 | 42.57 | 277.21 | 0.6842 | -722.0 | -649.2 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -2.11 | 151.76 | 42.24 | 274.81 | 0.6765 | -472.0 | -438.9 | |
| 1.38 | 3.02 | 0.93 | 2.03 | -1.61 | 151.71 | 42.19 | 275.56 | 0.6768 | -850.4 | -700.7 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -1.85 | 151.71 | 42.19 | 275.21 | 0.6764 | -740.0 | -632.8 | |
| 0.00 | 4.31 | 0.00 | 2.89 | -2.66 | 151.70 | 42.18 | 274.02 | 0.6747 | -701.0 | -604.4 | |
| 0.00 | 2.76 | 0.00 | 1.84 | -2.11 | 151.44 | 41.92 | 274.88 | 0.6724 | -835.0 | -752.7 | |
| 0.00 | 1.12 | 0.00 | 0.75 | -2.52 | 151.21 | 41.69 | 274.33 | 0.6687 | -425.0 | -486.0 | |
| 0.00 | 2.85 | 0.00 | 1.87 | -1.45 | 150.39 | 40.87 | 276.11 | 0.6602 | -673.0 | -674.9 | |
| 0.00 | 2.07 | 0.00 | 1.36 | -2.11 | 150.33 | 40.81 | 275.13 | 0.6580 | -602.0 | -521.0 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -1.32 | 150.15 | 40.63 | 276.36 | 0.6574 | -600.0 | -589.4 | |
| 0.52 | 2.76 | 0.34 | 1.81 | -1.98 | 150.09 | 40.57 | 275.38 | 0.6551 | -918.2 | -781.7 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -1.45 | 150.07 | 40.55 | 276.19 | 0.6561 | -581.0 | -522.9 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -2.92 | 149.92 | 40.40 | 273.99 | 0.6512 | -646.0 | -511.0 | |
| 0.78 | 5.78 | 0.50 | 3.76 | -1.50 | 149.45 | 39.93 | 276.27 | 0.6478 | 434.2 | -181.9 | |
| 1.12 | 5.35 | 0.73 | 3.47 | -1.68 | 149.42 | 39.89 | 276.00 | 0.6470 | 804.1 | 492.1 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -1.12 | 148.94 | 39.42 | 276.99 | 0.6419 | 528.0 | 436.2 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -0.49 | 148.55 | 39.03 | 278.07 | 0.6383 | 556.0 | 525.0 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 0.84 | 147.98 | 38.46 | 280.31 | 0.6344 | 519.0 | 447.0 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -1.89 | 147.85 | 38.32 | 276.07 | 0.6256 | 580.0 | 496.2 | |
| 0.00 | 0.69 | 0.00 | 0.44 | 2.63 | 147.05 | 37.53 | 283.43 | 0.6279 | 533.0 | 482.5 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 0.75 | 146.85 | 37.33 | 280.57 | 0.6191 | 545.0 | 376.9 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 3.24 | 145.84 | 36.32 | 284.89 | 0.6142 | 564.0 | 459.3 | |
| 0.00 | 1.90 | 0.00 | 1.18 | 1.20 | 145.59 | 36.07 | 281.75 | 0.6035 | 506.0 | 454.2 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 1.27 | 145.30 | 35.78 | 281.98 | 0.5998 | 720.0 | 606.1 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -2.23 | 145.32 | 35.79 | 276.19 | 0.5901 | 486.0 | 411.6 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -2.50 | 145.29 | 35.76 | 275.74 | 0.5891 | 605.0 | 442.8 | |
| 0.00 | 1.38 | 0.00 | 0.84 | -2.93 | 145.19 | 35.67 | 275.05 | 0.5868 | 691.0 | 621.2 | |
| 0.00 | 2.50 | 0.00 | 1.52 | -2.75 | 144.82 | 35.30 | 275.45 | 0.5820 | 725.0 | 559.0 | |
| 0.00 | 1.90 | 0.00 | 1.18 | 4.71 | 144.89 | 35.37 | 287.66 | 0.6076 | 42.0 | 141.5 | |
| 0.00 | 1.38 | 0.00 | 0.84 | -2.13 | 144.65 | 35.13 | 276.54 | 0.5811 | 548.0 | 496.6 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -2.29 | 144.59 | 35.06 | 276.30 | 0.5797 | 694.0 | 614.7 | |
| 0.00 | 2.07 | 0.00 | 1.25 | -2.65 | 144.45 | 34.93 | 275.70 | 0.5770 | 804.0 | 711.3 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -2.01 | 144.22 | 34.69 | 276.87 | 0.5752 | 666.0 | 642.1 | |
| 0.00 | 1.81 | 0.00 | 1.09 | -1.28 | 144.02 | 34.50 | 278.19 | 0.5743 | 728.0 | 609.2 | |
| 0.00 | 2.50 | 0.00 | 1.48 | 2.00 | 141.20 | 31.68 | 285.11 | 0.5458 | 820.0 | 630.2 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -3.73 | 140.47 | 30.95 | 274.81 | 0.5171 | 599.0 | 491.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
