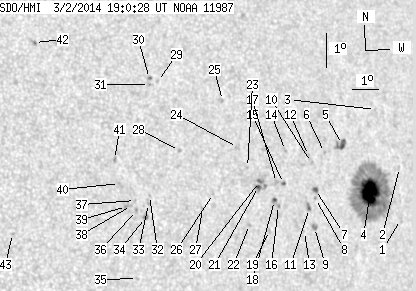

SDO HMI 2014-03-02 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.39 | 245.73 | 26.75 | 169.16 | -1.43 | 152.64 | 43.67 | 275.51 | 0.6952 | -328.2 | -194.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.59 | 0.00 | 1.86 | -2.15 | 155.30 | 46.33 | 273.93 | 0.7268 | 147.0 | 315.9 | |
| 0.00 | 1.04 | 0.00 | 0.75 | -0.60 | 155.22 | 46.25 | 276.06 | 0.7287 | -374.0 | -255.2 | |
| 0.00 | 0.60 | 0.00 | 0.43 | 1.05 | 154.20 | 45.23 | 278.55 | 0.7202 | -612.0 | -460.7 | |
| 29.85 | 171.18 | 21.00 | 120.44 | -1.43 | 153.99 | 45.02 | 275.19 | 0.7125 | -1088.7 | -274.7 | |
| 3.02 | 7.85 | 2.09 | 5.43 | -0.13 | 152.81 | 43.84 | 277.29 | 0.7006 | -713.7 | -617.0 | |
| 0.00 | 1.04 | 0.00 | 0.71 | -0.43 | 152.07 | 43.10 | 277.05 | 0.6908 | -687.0 | -615.5 | |
| 1.38 | 2.85 | 0.93 | 1.93 | -1.57 | 151.72 | 42.75 | 275.49 | 0.6840 | -828.8 | -687.9 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -1.84 | 151.73 | 42.76 | 275.10 | 0.6836 | -741.0 | -644.2 | |
| 0.00 | 3.28 | 0.00 | 2.21 | -2.70 | 151.72 | 42.75 | 273.84 | 0.6819 | -689.0 | -594.9 | |
| 0.00 | 1.47 | 0.00 | 0.99 | -0.78 | 151.55 | 42.58 | 276.68 | 0.6835 | -507.0 | -435.9 | |
| 0.69 | 2.85 | 0.46 | 1.92 | -2.16 | 151.49 | 42.52 | 274.69 | 0.6800 | -796.0 | -738.6 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -0.58 | 151.42 | 42.45 | 277.00 | 0.6824 | -656.0 | -452.8 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -2.86 | 151.32 | 42.35 | 273.70 | 0.6766 | -561.0 | -459.2 | |
| 0.00 | 1.55 | 0.00 | 1.03 | -0.50 | 150.50 | 41.53 | 277.35 | 0.6708 | -706.0 | -494.0 | |
| 0.52 | 1.73 | 0.34 | 1.15 | -1.50 | 150.43 | 41.46 | 275.90 | 0.6678 | -864.5 | -785.3 | |
| 0.00 | 1.29 | 0.00 | 0.86 | -2.17 | 150.25 | 41.28 | 274.94 | 0.6641 | -737.0 | -664.6 | |
| 0.00 | 2.42 | 0.00 | 1.60 | -1.49 | 150.16 | 41.19 | 275.98 | 0.6642 | -521.0 | -521.2 | |
| 0.95 | 1.98 | 0.63 | 1.31 | -2.03 | 150.09 | 41.12 | 275.18 | 0.6623 | -833.8 | -691.7 | |
| 0.00 | 1.73 | 0.00 | 1.13 | -2.94 | 149.92 | 40.96 | 273.85 | 0.6584 | -579.0 | -461.2 | |
| 0.60 | 8.63 | 0.40 | 5.65 | -1.52 | 149.49 | 40.52 | 276.10 | 0.6555 | 485.9 | 360.0 | |
| 1.38 | -20.00 | 0.90 | -20.00 | -1.67 | 149.45 | 40.48 | 275.88 | 0.6547 | 770.2 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.06 | -2.83 | 149.13 | 40.16 | 274.18 | 0.6482 | -658.0 | -457.9 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -1.14 | 149.01 | 40.04 | 276.80 | 0.6501 | 495.0 | 386.7 | |
| 0.00 | 2.50 | 0.00 | 1.62 | -0.57 | 148.62 | 39.65 | 277.77 | 0.6463 | 644.0 | 445.0 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 0.79 | 148.04 | 39.07 | 280.03 | 0.6424 | 555.0 | 490.1 | |
| 0.00 | 0.69 | 0.00 | 0.44 | -2.02 | 147.72 | 38.75 | 275.77 | 0.6310 | 636.0 | 538.1 | |
| 0.00 | 1.29 | 0.00 | 0.82 | -2.50 | 147.31 | 38.34 | 275.11 | 0.6245 | 592.0 | 427.7 | |
| 0.00 | 1.55 | 0.00 | 0.97 | -0.83 | 146.41 | 37.44 | 278.01 | 0.6161 | 781.0 | 584.2 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 1.18 | 145.60 | 36.63 | 281.50 | 0.6110 | 580.0 | 413.8 | |
| 0.00 | 1.47 | 0.00 | 0.91 | 1.24 | 145.30 | 36.33 | 281.72 | 0.6072 | 804.0 | 685.0 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 1.06 | 145.30 | 36.33 | 281.43 | 0.6066 | 795.0 | 677.7 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -2.26 | 145.32 | 36.35 | 276.00 | 0.5977 | 427.0 | 367.9 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -2.50 | 145.29 | 36.32 | 275.61 | 0.5968 | 684.0 | 526.0 | |
| 0.00 | 2.67 | 0.00 | 1.64 | -2.92 | 145.19 | 36.22 | 274.92 | 0.5946 | 717.0 | 590.3 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -4.76 | 144.98 | 36.01 | 271.88 | 0.5885 | -330.0 | -240.0 | |
| 0.00 | 1.21 | 0.00 | 0.74 | -2.74 | 144.85 | 35.88 | 275.31 | 0.5902 | 702.0 | 646.9 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -2.45 | 144.81 | 35.84 | 275.82 | 0.5902 | 617.0 | 512.8 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -2.60 | 144.66 | 35.70 | 275.59 | 0.5879 | 692.0 | 603.8 | |
| 0.00 | 1.81 | 0.00 | 1.10 | -2.65 | 144.48 | 35.51 | 275.56 | 0.5852 | 869.0 | 722.0 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -1.98 | 144.21 | 35.24 | 276.77 | 0.5829 | 673.0 | 608.0 | |
| 0.00 | 1.90 | 0.00 | 1.15 | -1.28 | 144.01 | 35.04 | 278.02 | 0.5820 | 779.0 | 635.1 | |
| 0.00 | 1.81 | 0.00 | 1.08 | 2.03 | 141.17 | 32.20 | 284.89 | 0.5533 | 796.0 | 700.1 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -3.73 | 140.44 | 31.48 | 274.67 | 0.5249 | 723.0 | 534.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
