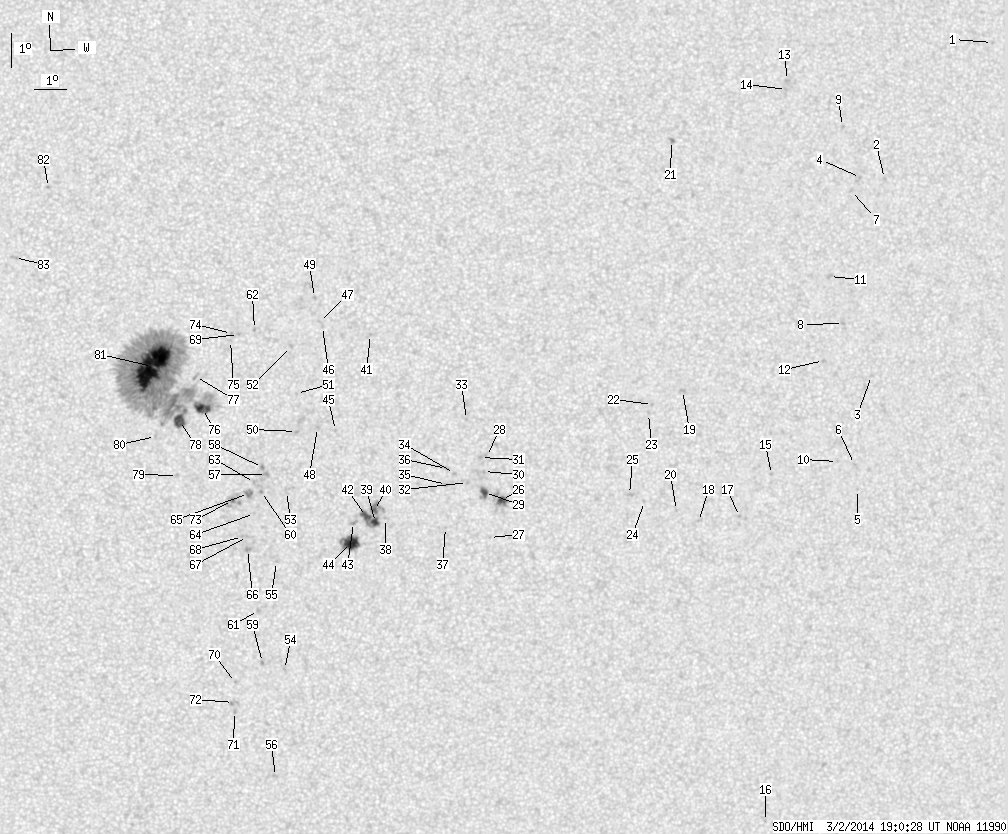

SDO HMI 2014-03-02 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.63 | 713.47 | 59.39 | 357.12 | -13.58 | 109.16 | 0.19 | 173.69 | 0.1319 | 252.0 | 156.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.70 | -2.28 | 132.41 | 23.44 | 280.81 | 0.4065 | 765.0 | 606.9 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -6.48 | 129.07 | 20.10 | 270.92 | 0.3430 | 608.0 | 476.6 | |
| 1.55 | 1.90 | 0.82 | 1.00 | -12.35 | 129.00 | 20.03 | 253.89 | 0.3498 | 0.8 | -1.0 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -6.48 | 128.30 | 19.34 | 271.05 | 0.3305 | 826.0 | 531.3 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -15.77 | 128.85 | 19.88 | 244.55 | 0.3640 | 622.0 | 560.1 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -15.03 | 128.68 | 19.71 | 246.33 | 0.3572 | 674.0 | 520.2 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -6.88 | 128.04 | 19.07 | 269.87 | 0.3257 | 800.0 | 695.2 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -10.84 | 127.99 | 19.02 | 257.72 | 0.3290 | 847.0 | 723.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -4.99 | 127.69 | 18.72 | 275.80 | 0.3228 | 740.0 | 648.5 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -14.96 | 128.12 | 19.15 | 245.99 | 0.3484 | 731.0 | 650.8 | |
| 0.00 | 2.76 | 0.00 | 1.44 | -9.46 | 127.46 | 18.49 | 261.76 | 0.3175 | 812.0 | 668.0 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -11.96 | 127.42 | 18.45 | 254.00 | 0.3236 | 847.0 | 692.7 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -3.69 | 125.93 | 16.97 | 280.95 | 0.2979 | 920.0 | 765.8 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -3.96 | 125.91 | 16.94 | 280.08 | 0.2965 | 877.0 | 640.3 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -15.43 | 126.02 | 17.05 | 242.38 | 0.3204 | 721.0 | 578.3 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -26.03 | 127.08 | 18.11 | 220.44 | 0.4325 | 746.0 | 539.4 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -16.72 | 125.10 | 16.13 | 237.48 | 0.3169 | 980.0 | 757.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -16.91 | 123.79 | 14.82 | 234.88 | 0.3006 | 792.0 | 507.1 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -13.01 | 123.02 | 14.05 | 246.21 | 0.2597 | 953.0 | 743.0 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -16.60 | 123.06 | 14.09 | 234.50 | 0.2880 | 833.0 | 654.9 | |
| 0.00 | 2.59 | 0.00 | 1.32 | -5.59 | 122.39 | 13.42 | 276.25 | 0.2335 | 1044.0 | 819.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -13.45 | 122.10 | 13.13 | 243.23 | 0.2487 | 962.0 | 782.3 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.72 | 121.99 | 13.02 | 242.05 | 0.2490 | 685.0 | 502.7 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -16.36 | 122.03 | 13.06 | 233.27 | 0.2717 | 909.0 | 639.9 | |
| 0.00 | 2.24 | 0.00 | 1.15 | -16.16 | 121.54 | 12.57 | 232.89 | 0.2633 | 913.0 | 660.7 | |
| 4.40 | 11.30 | 2.23 | 5.73 | -16.43 | 117.52 | 8.55 | 221.52 | 0.2162 | 1075.1 | 823.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -17.55 | 117.20 | 8.23 | 217.11 | 0.2272 | 641.0 | 552.9 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -15.12 | 117.00 | 8.03 | 224.28 | 0.1941 | 725.0 | 585.4 | |
| 3.88 | 7.42 | 1.97 | 3.76 | -16.20 | 116.98 | 8.01 | 220.45 | 0.2073 | 1166.0 | 804.0 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -15.57 | 116.93 | 7.96 | 222.39 | 0.1987 | 866.0 | 697.6 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -15.15 | 116.82 | 7.85 | 223.51 | 0.1923 | 965.0 | 774.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -15.90 | 116.44 | 7.47 | 219.48 | 0.1976 | 1073.0 | 885.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -14.02 | 116.35 | 7.38 | 226.28 | 0.1732 | -698.0 | -487.7 | |
| 0.00 | 1.55 | 0.00 | 0.78 | -15.64 | 116.03 | 7.06 | 218.81 | 0.1897 | 1125.0 | 880.3 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -15.97 | 115.79 | 6.82 | 216.76 | 0.1916 | 942.0 | 811.0 | |
| 0.00 | 2.76 | 0.00 | 1.39 | -15.49 | 115.77 | 6.80 | 218.31 | 0.1850 | 960.0 | 709.0 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -17.27 | 115.80 | 6.83 | 212.98 | 0.2097 | 946.0 | 790.0 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -17.02 | 113.92 | 4.95 | 205.84 | 0.1902 | -660.0 | -490.6 | |
| 4.14 | 29.42 | 2.09 | 14.83 | -17.14 | 113.61 | 4.64 | 204.16 | 0.1899 | -1047.8 | -812.5 | |
| 2.24 | -39.00 | 1.13 | -39.00 | -16.78 | 113.57 | 4.60 | 204.81 | 0.1840 | -1175.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -11.51 | 113.35 | 4.38 | 224.94 | 0.1065 | 995.0 | 777.9 | |
| 5.44 | -39.00 | 2.74 | -39.00 | -16.96 | 113.33 | 4.36 | 203.23 | 0.1852 | -1242.5 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.17 | -17.15 | 112.93 | 3.96 | 200.93 | 0.1855 | -966.0 | -932.2 | |
| 14.50 | 21.05 | 7.32 | 10.63 | -17.75 | 112.88 | 3.91 | 199.55 | 0.1949 | -1158.2 | -781.1 | |
| 0.00 | 0.95 | 0.00 | 0.47 | -14.39 | 112.32 | 3.35 | 204.43 | 0.1377 | -818.0 | -583.9 | |
| 0.00 | 1.29 | 0.00 | 0.64 | -11.29 | 111.89 | 2.92 | 215.21 | 0.0871 | 728.0 | 517.1 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -11.14 | 111.80 | 2.83 | 215.37 | 0.0841 | 817.0 | 604.8 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -14.30 | 111.77 | 2.80 | 201.03 | 0.1326 | -792.0 | -596.2 | |
| 0.00 | 1.73 | 0.00 | 0.86 | -10.42 | 111.64 | 2.67 | 219.42 | 0.0726 | 943.0 | 724.0 | |
| 0.00 | 1.73 | 0.00 | 0.86 | -14.42 | 111.13 | 2.16 | 196.23 | 0.1311 | -997.0 | -766.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -13.29 | 111.12 | 2.15 | 199.07 | 0.1122 | -846.0 | -698.5 | |
| 0.00 | 1.81 | 0.00 | 0.90 | -11.89 | 110.96 | 1.99 | 202.68 | 0.0884 | 986.0 | 698.3 | |
| 0.00 | 3.36 | 0.00 | 1.69 | -16.22 | 110.83 | 1.87 | 191.30 | 0.1602 | -569.0 | -605.3 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -21.62 | 110.82 | 1.86 | 186.90 | 0.2516 | -908.0 | -695.6 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -18.34 | 110.54 | 1.57 | 187.69 | 0.1953 | -857.0 | -754.1 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -24.93 | 110.57 | 1.60 | 184.77 | 0.3065 | -721.0 | -624.7 | |
| 0.00 | 2.93 | 0.00 | 1.47 | -15.71 | 110.21 | 1.24 | 188.06 | 0.1497 | -1064.0 | -861.4 | |
| 0.00 | 2.07 | 0.00 | 1.04 | -15.50 | 110.09 | 1.12 | 187.45 | 0.1458 | -1043.0 | -874.7 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -21.41 | 110.12 | 1.15 | 184.37 | 0.2468 | -1047.0 | -833.6 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -16.22 | 110.06 | 1.09 | 186.67 | 0.1581 | -1100.0 | -903.8 | |
| 0.00 | 2.59 | 0.00 | 1.31 | -19.82 | 109.98 | 1.01 | 184.37 | 0.2196 | -925.0 | -653.4 | |
| 0.00 | 1.04 | 0.00 | 0.51 | -11.38 | 109.83 | 0.86 | 191.53 | 0.0742 | 926.0 | 801.2 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -15.95 | 109.84 | 0.87 | 185.53 | 0.1531 | -898.0 | -744.7 | |
| 0.00 | 0.60 | 0.00 | 0.30 | -16.89 | 109.85 | 0.88 | 184.99 | 0.1691 | -920.0 | -809.3 | |
| 0.00 | 6.04 | 0.00 | 3.03 | -16.29 | 109.66 | 0.69 | 184.20 | 0.1585 | -1183.0 | -966.7 | |
| 0.00 | 3.11 | 0.00 | 1.57 | -17.97 | 109.63 | 0.66 | 183.38 | 0.1876 | -980.0 | -793.1 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -17.58 | 109.63 | 0.66 | 183.51 | 0.1808 | -937.0 | -748.6 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -17.58 | 109.48 | 0.51 | 182.68 | 0.1807 | -879.0 | -648.6 | |
| 0.00 | 1.29 | 0.00 | 0.64 | -11.53 | 109.35 | 0.38 | 184.94 | 0.0756 | 951.0 | 745.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -22.02 | 109.26 | 0.29 | 181.05 | 0.2565 | -820.0 | -572.4 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -22.92 | 109.23 | 0.26 | 180.88 | 0.2716 | -754.0 | -695.9 | |
| 0.00 | 4.06 | 0.00 | 2.08 | -22.64 | 109.20 | 0.23 | 180.79 | 0.2669 | -912.0 | -765.4 | |
| 0.52 | 12.25 | 0.26 | 6.15 | -16.50 | 109.16 | 0.19 | 181.16 | 0.1618 | -1153.5 | -522.5 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -11.50 | 109.14 | 0.17 | 182.19 | 0.0748 | 849.0 | 711.8 | |
| 0.00 | 1.04 | 0.00 | 0.51 | -11.71 | 109.11 | 0.14 | 181.71 | 0.0785 | 883.0 | 638.6 | |
| 10.18 | 516.14 | 5.08 | 257.07 | -13.74 | 108.25 | -0.72 | 173.84 | 0.1145 | -1158.8 | 267.8 | |
| 0.00 | 2.76 | 0.00 | 1.37 | -12.78 | 108.04 | -0.93 | 170.70 | 0.0984 | -983.0 | -761.2 | |
| 9.23 | -76.00 | 4.61 | -76.00 | -14.09 | 107.54 | -1.43 | 168.57 | 0.1225 | -1170.1 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.86 | -15.74 | 107.47 | -1.50 | 170.33 | 0.1508 | -731.0 | -407.8 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -14.57 | 106.80 | -2.17 | 164.01 | 0.1335 | -841.0 | -601.3 | |
| 62.55 | -76.00 | 31.14 | -76.00 | -12.48 | 106.73 | -2.24 | 157.38 | 0.0996 | 1525.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.64 | -7.12 | 103.66 | -5.31 | 89.16 | 0.0923 | -929.0 | -704.7 | |
| 0.00 | 2.67 | 0.00 | 1.33 | -9.19 | 102.60 | -6.37 | 107.67 | 0.1155 | -863.0 | -717.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
