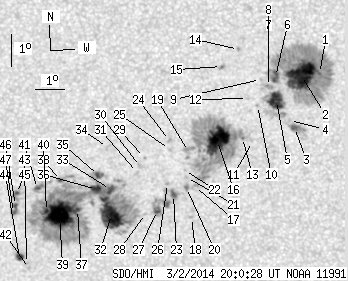

SDO HMI 2014-03-02 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 232.96 | 994.94 | 126.56 | 540.15 | -24.82 | 91.59 | -16.82 | 139.94 | 0.4055 | 18.3 | -32.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-02 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 246.69 | 0.32 | 129.36 | -22.39 | 96.71 | -11.71 | 144.59 | 0.3252 | 1039.9 | 503.6 | |
| 50.48 | -1.00 | 26.49 | -1.00 | -22.44 | 96.12 | -12.30 | 143.37 | 0.3316 | 1273.7 | 999999 | |
| 2.76 | 11.65 | 1.46 | 6.17 | -24.04 | 95.73 | -12.69 | 145.50 | 0.3557 | 950.5 | 651.1 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -23.82 | 95.58 | -12.83 | 144.82 | 0.3542 | 871.0 | 623.4 | |
| 17.00 | 38.48 | 8.98 | 20.35 | -23.19 | 95.22 | -13.20 | 142.93 | 0.3498 | 1078.4 | 450.0 | |
| 5.00 | -1.00 | 2.63 | -1.00 | -22.45 | 95.26 | -13.16 | 141.59 | 0.3402 | 1036.1 | 999999 | |
| 0.00 | 4.14 | 0.00 | 2.19 | -22.75 | 95.00 | -13.42 | 141.65 | 0.3466 | 904.0 | 779.1 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -21.86 | 95.08 | -13.33 | 140.05 | 0.3348 | 845.0 | 676.6 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -22.52 | 94.75 | -13.66 | 140.74 | 0.3463 | 664.0 | 397.3 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -23.32 | 94.57 | -13.85 | 141.92 | 0.3579 | 661.0 | 478.2 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -24.43 | 94.28 | -14.14 | 143.37 | 0.3744 | -158.0 | -168.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -23.10 | 94.26 | -14.16 | 140.90 | 0.3583 | 784.0 | 649.5 | |
| 0.35 | 188.27 | 0.18 | 101.10 | -24.30 | 93.96 | -14.46 | 142.54 | 0.3758 | -970.0 | 248.2 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -21.58 | 94.12 | -14.29 | 137.60 | 0.3420 | 978.0 | 778.9 | |
| 0.35 | 1.64 | 0.18 | 0.87 | -22.09 | 93.51 | -14.91 | 137.50 | 0.3545 | 986.2 | 823.4 | |
| 37.02 | -13.00 | 19.85 | -13.00 | -24.36 | 93.11 | -15.31 | 141.14 | 0.3851 | 1262.4 | 999999 | |
| 0.00 | 3.19 | 0.00 | 1.73 | -25.77 | 92.13 | -16.28 | 141.93 | 0.4113 | -841.0 | -746.2 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -26.74 | 91.89 | -16.53 | 143.11 | 0.4251 | -858.0 | -575.5 | |
| 0.00 | 7.77 | 0.00 | 4.19 | -24.67 | 92.08 | -16.34 | 139.97 | 0.3991 | -9.0 | 230.3 | |
| 0.78 | 2.76 | 0.42 | 1.50 | -25.79 | 91.86 | -16.56 | 141.52 | 0.4143 | -1156.0 | -909.4 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -25.48 | 91.90 | -16.52 | 141.07 | 0.4102 | -920.0 | -644.7 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -25.26 | 91.86 | -16.55 | 140.64 | 0.4080 | -776.0 | -631.8 | |
| 2.76 | 9.58 | 1.51 | 5.23 | -26.00 | 91.38 | -17.04 | 141.11 | 0.4214 | -1086.1 | -525.8 | |
| 0.00 | 1.55 | 0.00 | 0.84 | -24.31 | 91.48 | -16.93 | 138.36 | 0.4012 | 820.0 | 599.2 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -24.59 | 91.45 | -16.97 | 138.80 | 0.4047 | 731.0 | 541.1 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -25.64 | 91.22 | -17.20 | 140.29 | 0.4189 | 683.0 | 437.5 | |
| 3.28 | 19.07 | 1.80 | 10.45 | -26.48 | 90.75 | -17.67 | 140.94 | 0.4331 | -1038.3 | -711.6 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -26.56 | 90.31 | -18.10 | 140.44 | 0.4382 | -609.0 | -516.9 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -24.81 | 90.56 | -17.86 | 137.83 | 0.4165 | -669.0 | -565.1 | |
| 0.00 | 3.19 | 0.00 | 1.74 | -25.08 | 90.38 | -18.04 | 138.05 | 0.4214 | 548.0 | 448.9 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -25.26 | 90.24 | -18.17 | 138.17 | 0.4247 | -245.0 | -172.9 | |
| 42.62 | 417.36 | 23.62 | 232.55 | -26.54 | 89.12 | -19.29 | 138.74 | 0.4501 | -1172.8 | -470.7 | |
| 4.23 | -32.00 | 2.33 | -32.00 | -25.76 | 89.23 | -19.19 | 137.57 | 0.4407 | -1157.3 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.37 | -24.45 | 89.34 | -19.08 | 135.44 | 0.4259 | -781.0 | -646.1 | |
| 3.45 | -32.00 | 1.90 | -32.00 | -25.30 | 88.88 | -19.53 | 136.33 | 0.4397 | 889.9 | 999999 | |
| 6.21 | -32.00 | 3.43 | -32.00 | -25.74 | 88.74 | -19.68 | 136.88 | 0.4457 | 365.8 | 999999 | |
| 1.64 | -32.00 | 0.91 | -32.00 | -26.33 | 87.96 | -20.46 | 136.87 | 0.4600 | -1225.3 | 999999 | |
| 1.38 | -32.00 | 0.77 | -32.00 | -25.40 | 87.53 | -20.88 | 134.76 | 0.4554 | -972.8 | 999999 | |
| 40.38 | -32.00 | 22.61 | -32.00 | -26.46 | 87.30 | -21.12 | 136.25 | 0.4684 | -1397.2 | 999999 | |
| 1.98 | -32.00 | 1.11 | -32.00 | -26.35 | 86.86 | -21.56 | 135.52 | 0.4719 | -995.7 | 999999 | |
| 1.81 | -32.00 | 1.01 | -32.00 | -25.62 | 86.68 | -21.74 | 134.08 | 0.4668 | -921.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -28.12 | 85.87 | -22.55 | 137.18 | 0.4995 | -649.0 | -559.0 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -27.95 | 85.80 | -22.62 | 136.84 | 0.4987 | -741.0 | -634.5 | |
| 3.62 | 5.35 | 2.07 | 3.05 | -27.75 | 85.59 | -22.83 | 136.29 | 0.4989 | -827.7 | -609.7 | |
| 1.98 | 5.44 | 1.12 | 3.06 | -25.74 | 85.91 | -22.51 | 133.39 | 0.4765 | -931.3 | -686.3 | |
| 1.55 | 6.82 | 0.88 | 3.85 | -26.11 | 85.80 | -22.62 | 133.89 | 0.4812 | -892.4 | -649.2 | |
| 1.73 | -46.00 | 0.98 | -46.00 | -26.33 | 85.68 | -22.74 | 134.11 | 0.4845 | -791.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
